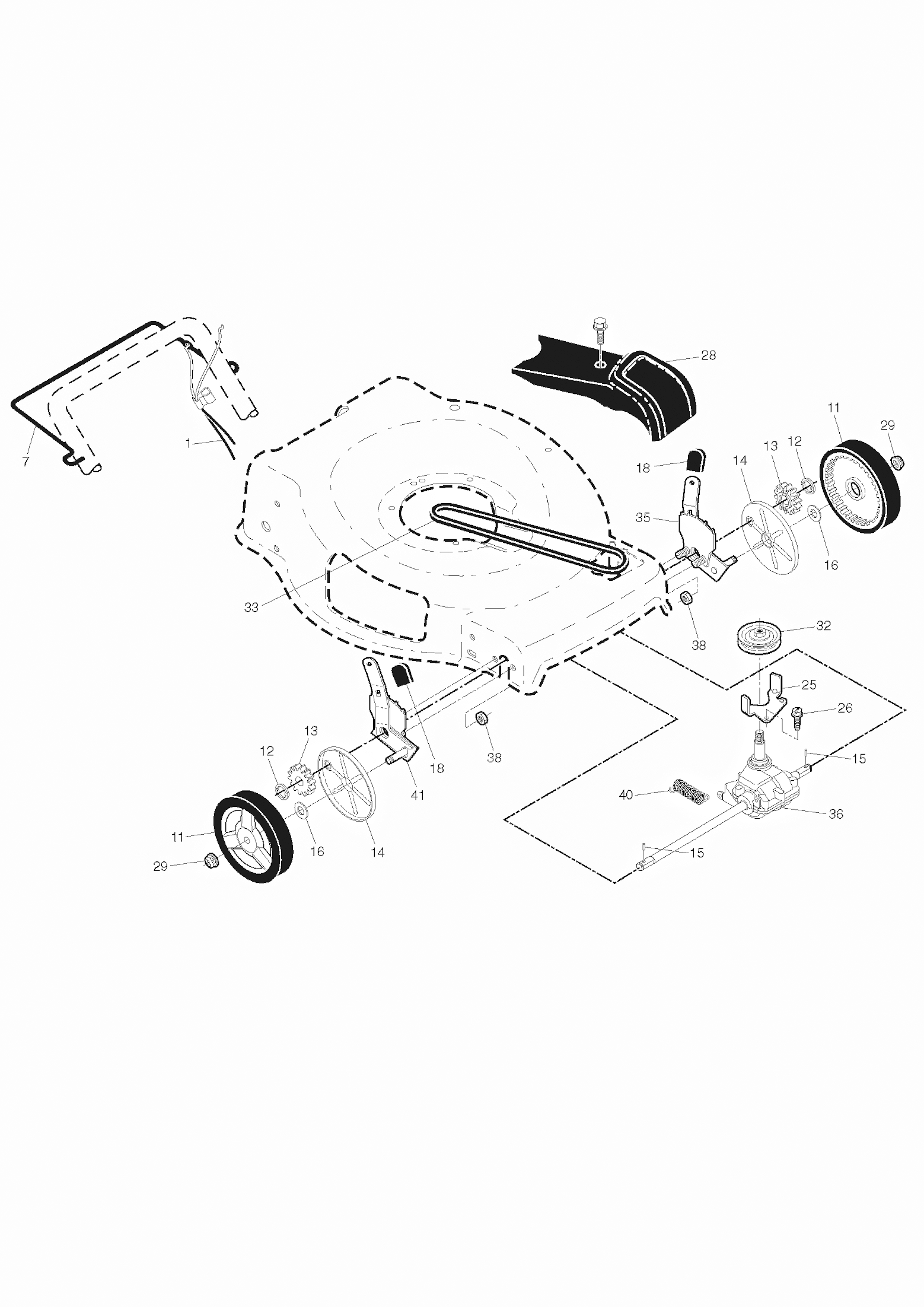

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Kabel (585040701) | |||
| 1 | Regulierung (585123102) | |||
| 1 | Laufrad (532401274) | |||
| 1 | Federring (812000058) | |||
| 1 | Treibrad (532403849) | |||
| 1 | Staubschutz (581840401) | |||
| 1 | Sperrklinke (532404845) | |||
| 1 | Scheibe (532067725) | |||
| 1 | Knopf (532701037) | |||
| 1 | HALTER (532431711) | |||
| 1 | Screw (532163409) | |||
| 1 | Abdeckung (581839001) | |||
| 1 |  | Mutter (532409149) | ||
| 1 |
Riemenscheibe (586989702) For all EXCEPT 96121002700, 96121002701 | |||
| 1 |
Riemenscheibe (532443262) For 96121002700, 96121002701 | |||
| 1 | Riemen (532196853) | |||
| 1 | Einstellvorrichtung (581497907) | |||
| 1 | Getriebe (589600601) | |||
| 1 |  |
Mutter (532191730) For 96121002700, 96121002701 | ||
| 1 |
Sicherungsmutter (596041001) For all EXCEPT 96121002700, 96121002701 | |||
| 1 | Feder (532406558) | |||
| 1 | Einstellvorrichtung (581497908) |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Einstellhebel (585854803) | |||
| 1 |
Kabel (532420939) For all EXCEPT 96121002700, 96121002701 | |||
| 1 |
Kabel (532424033) For 96121002700, 96121002701 | |||
| 1 |
Halter (532430034) For 96121002700, 96121002701 | |||
| 1 | Klammer (532145006) | |||
| 1 | Knopf (532182398) | |||
| 1 |
Screw (532178848) For 96121002700, 96121002701 | |||
| 1 |
Regulierung (580849102) For 96121002700, 96121002701 | |||
| 1 |
Regulierhebel Kpl. (587689302) For all EXCEPT 96121002700, 96121002701 | |||
| 1 | Mutter (583400601) | |||
| 1 | Keil (532425575) | |||
| 1 | Knopf (532185577) | |||
| 1 | Stopfen (532437516) | |||
| 1 | PLATTE (532427307) | |||
| 1 | Knopf (581912601) | |||
| 1 | FÜHRUNG (581902101) | |||
| 1 | SCHUTZ (532422467) | |||
| 1 |  | Sicherungsmutter (596040501) | ||
| 1 | | Mutter (532409149) | ||
| 1 | Screw (532419945) | |||
| 1 | Laufrad (585911001) | |||
| 1 |
Bolzen (586212501) For all EXCEPT 96121002700 | |||
| 1 |  |
Bolzen (596136401) For 96121002700 | ||
| 1 | Knopf (532701037) | |||
| 1 | SPERRHAKEN (532441192) For all EXCEPT 96121003702, 96121003703 | |||
| 1 | TUERREGAL (593241102) For 96121003702, 96121003703 | |||
| 1 |
Tür (594942002) For all EXCEPT 96121003702, 96121003703 | |||
| 1 |
Einstellvorrichtung (532431140) RH | |||
| 1 | SCHARNIER (532175735) For all EXCEPT 96121003702, 96121003703 | |||
| 1 | Deflektor (532426129) | |||
| 1 | HALTER (581353702) For 96121002700, LH | |||
| 1 |
Halter (585900703) For all EXCEPT 96121002700, LH | |||
| 1 | HALTER (581353602) For 96121002700, RH | |||
| 1 | HALTER (585900803) For all EXCEPT 96121002700, RH | |||
| 1 |  | Bolzen (532150406) | ||
| 1 |
Scharnier (532193000) For 96121002700, 96121002701, 96121003700, 96121003701 | |||
| 1 | |
Mutter (532191730) For 96121002700, 96121002701 | ||
| 1 |
Sicherungsmutter (596041001) For 96121003700, 96121003701 | |||
| 1 | GEHÄUSE KPL (581801901) | |||
| 1 |
Stange (532175650) For 96121002700, 96121002701, 96121003700, 96121003701 | |||
| 1 |
Adapter (591344801) For 96121003703 | |||
| 1 |
Messeraufnahme (581473301) For all EXCEPT 96121003703 | |||
| 1 | Klinge (580244002) | |||
| 1 | Scheibe (532851074) | |||
| 1 |  | Scheibe (596238701) | ||
| 1 | Screw (532851084) | |||
| 1 | PLATTE (532430599) | |||
| 1 | Aufkleber (581724301) | |||
| 1 | Bolzen (817000510) | |||
| 1 | Scheibe (532088348) | |||
| 1 | |
Mutter (532191730) For 96121002700, 96121002701 | ||
| 1 | Screw (817411312) | |||
| 1 | Mutter (532155377) | |||
| 1 |
Lenkung Kpl. (593270403) For all EXCEPT 96121002700 | |||
| 1 | EINSTELLHEBEL (532441197) For 96121002700 | |||
| 1 | Schraube (532191574) | |||
| 1 | HALTER (532435059) | |||
| 1 | O-ring (532197480) | |||
| 1 |
Einstellvorrichtung (532431141) LH | |||
| 1 | Klammer (532428124) | |||
| 1 | AUFKLEBER (532182191) NOT SHOWN | |||
| 1 | TASCHE (532423849) For all EXCEPT 96121002700, INCLUDES KEY NUMBERS 12 & 56 | |||
| 1 | BEDIENUNGSANWEISUNG (114062220) For 96121003703 | |||
| 1 | BEDIENUNGSANWEISUNG (114062210) For 96121003703 | |||
| 1 | BEDIENUNGSANWEISUNG (114062250) For 96121003703 | |||
| 1 | Klammer (532197991) | |||
| 1 | BEDIENUNGSANWEISUNG (114062240) For 96121003703 | |||
| 1 | BEDIENUNGSANWEISUNG (114062253) For 96121003703 | |||
| 1 | BEDIENUNGSANWEISUNG (115964720) For 96121003702 | |||
| 1 | BEDIENUNGSANWEISUNG (115964710) For 96121003702 | |||
| 1 | BEDIENUNGSANWEISUNG (115964750) For 96121003702 | |||
| 1 | BEDIENUNGSANWEISUNG (115964740) For 96121003702 | |||
| 1 | BEDIENUNGSANWEISUNG (115964753) For 96121003702 |
