| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Griff Kpl. (548627201) Upper handle including sleeve | |||
| 1 |
Regulierhebel Kpl. (531147228) Motor brake handle | |||
| 1 | Switchbox Assy (548669501) | |||
| 6 |
Screw (593755501) ST4x16 | |||
| 1 | Sitzhalterung Kpl. (531146750) | |||
| 2 |
Knopf Kpl. (546736201) Kit | |||
| 1 |
Höheneinstellung (548627101) Handle height | |||
| 2 |  |
Sicherungsmutter (732211801) M8 Lock | ||
| 2 |
Screw (548685401) M8x31/12 Special | |||
| 2 | Klammer (599349379) | |||
| 1 |
Einstellhebel (548608001) Lower handle | |||
| 1 |
Kabel (548607801) Upper control cable |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Rahmen (547940501) | |||
| 1 |

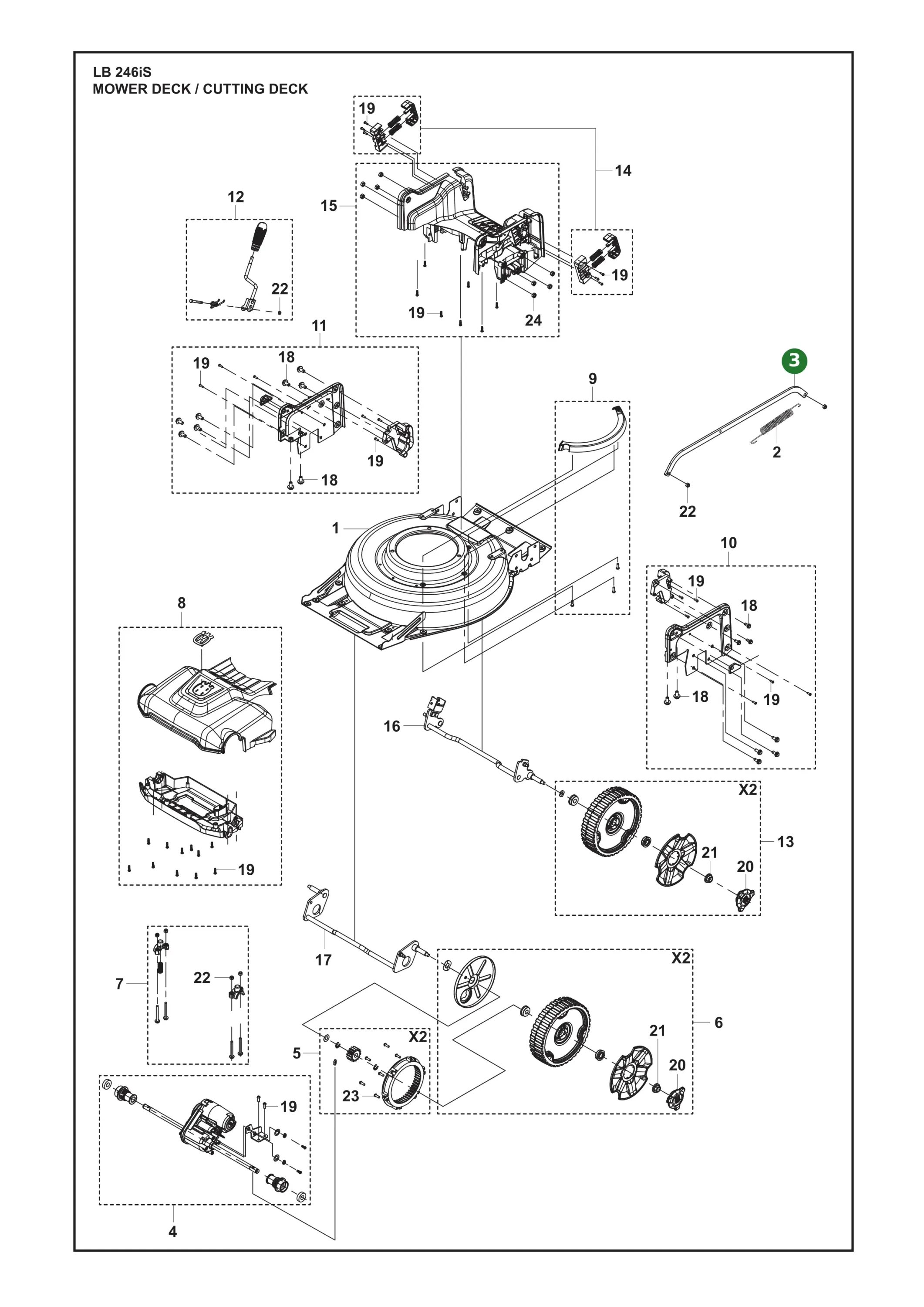

Feder (599138901) Height adjustment | |||
| 1 | Stange (548607601) | |||
| 1 |
Getriebe (548626301) Transmission kit | |||
| 1 |

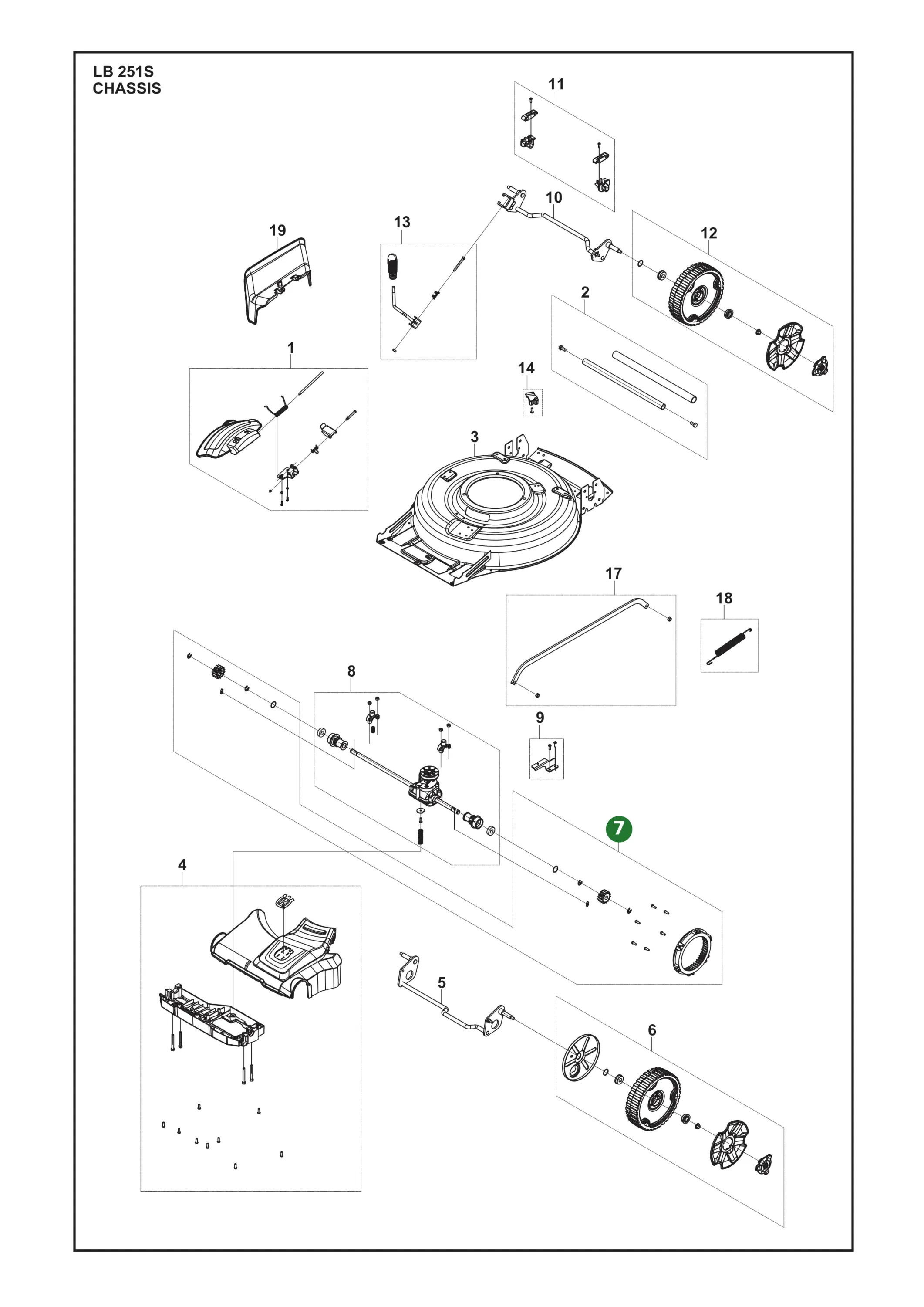

Zahnrad (598684117) Wheel drive kit, contains 2 pcs | |||
| 1 |
Laufrad (599349368) Front wheel, contains 2 wheels | |||
| 1 |
Getriebesatz (548627701) Transmission fastener kit | |||
| 1 |
Abdeckungssatz (548626501) Front cover, including logo | |||
| 1 |
Abdeckung (548626601) Transmission cable | |||
| 1 |
Einstellhebel Kpl. (548626801) Left | |||
| 1 |
Einstellhebel Kpl. (548626901) Right | |||
| 1 | Höheneinstellung (548627001) | |||
| 1 |
Laufrad (599349424) Rear wheel, contains 2 wheels | |||
| 1 |
Höheneinstellung (548627401) Height shift | |||
| 1 | Abdeckung (548627501) | |||
| 1 |
Achse (548607401) Rear axle | |||
| 1 |
Achse (548628101) Front axle | |||
| 10 |
Bolzen (546028901) M6x14 | |||
| 38 |
Screw (589794201) ST5x16 | |||
| 4 | Radabdeckung (587585101) | |||
| 4 |
Verschlussbolzen (587913501) M8 | |||
| 7 |
Sicherungsmutter (522669302) M6 | |||
| 12 |
Screw (593755501) ST4x16 | |||
| 8 | |
Sicherungsmutter (732211801) M8 Lock |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Motorhaube Kpl. (547208801) Powerhead cover | |||
| 1 |
Batteriekasten (547209101) Battery pocket | |||
| 1 |
Batteriekasten (547209001) Dual fan kit | |||
| 1 | Motorhaube (547209201) | |||
| 1 | Motor (547209301) | |||
| 2 | Platte (531146708) | |||
| 1 |
Kabel (548627601) Lower control cable | |||
| 1 |
Steuereinheit (548607901) MCU | |||
| 19 |
Screw (593755501) ST4x16 | |||
| 1 |
Kabel (548607701) Transmisson | |||
| 1 | Taste (501490101) |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Klinge (594702210) Spare parts blade | |||
| 1 |
Messeraufnahme (548626401) Kit | |||
| 1 | MOTOR KPL (548627801) Motor fastener kit | |||
| 1 | Messeraufnahme (596602201) | |||
| 1 |  |
Schraube Ehhm (725245371) M8x25 |
