| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |

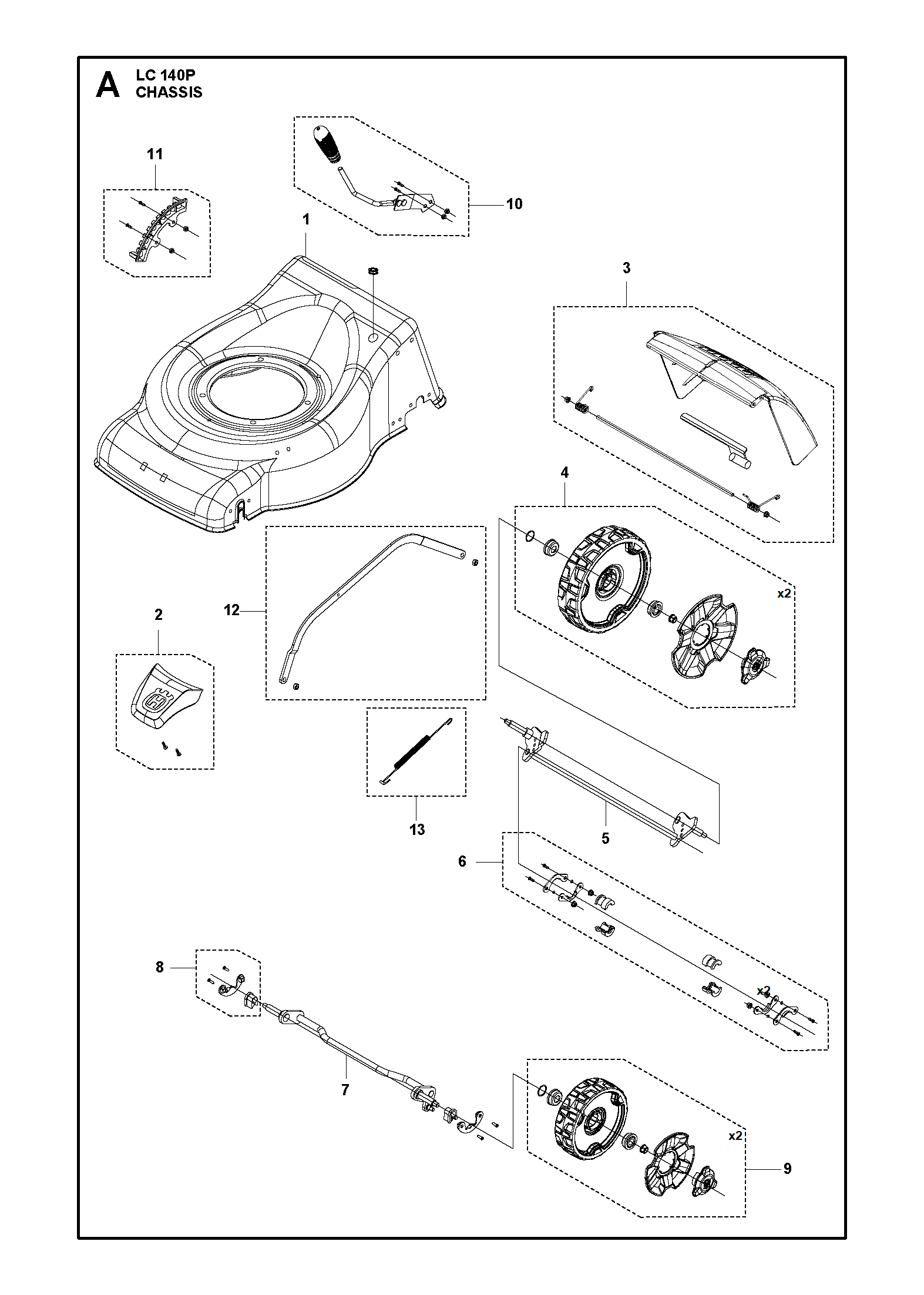

Rahmen (599349369) CHASSIS | |||
| 1 |

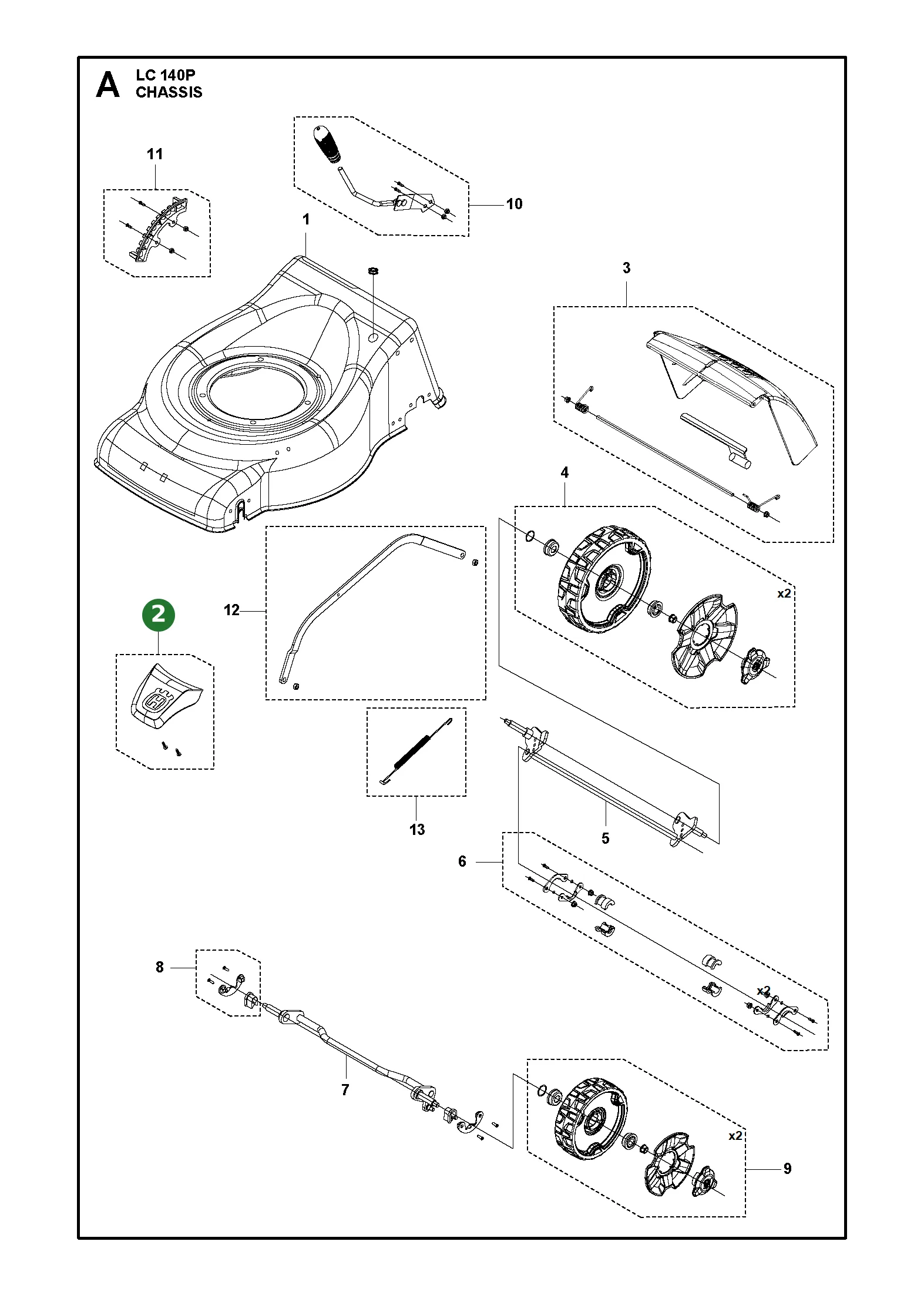

Abdeckungssatz (599349371) FRONT COVER | |||
| 1 |

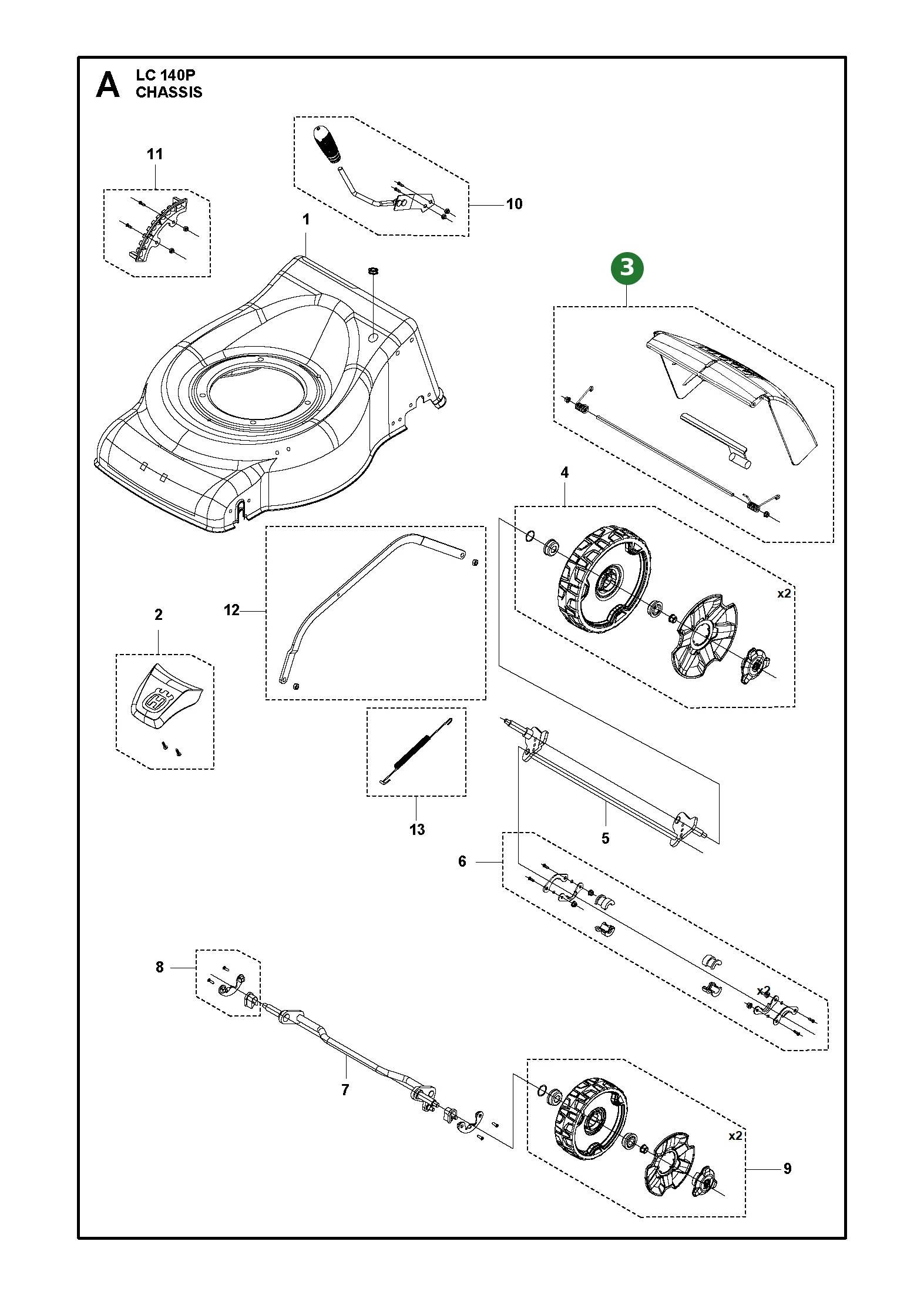

Klappe (599349373) REAR DOOR | |||
| 2 |
Laufrad (599349422) REAR WHEEL | |||
| 1 |

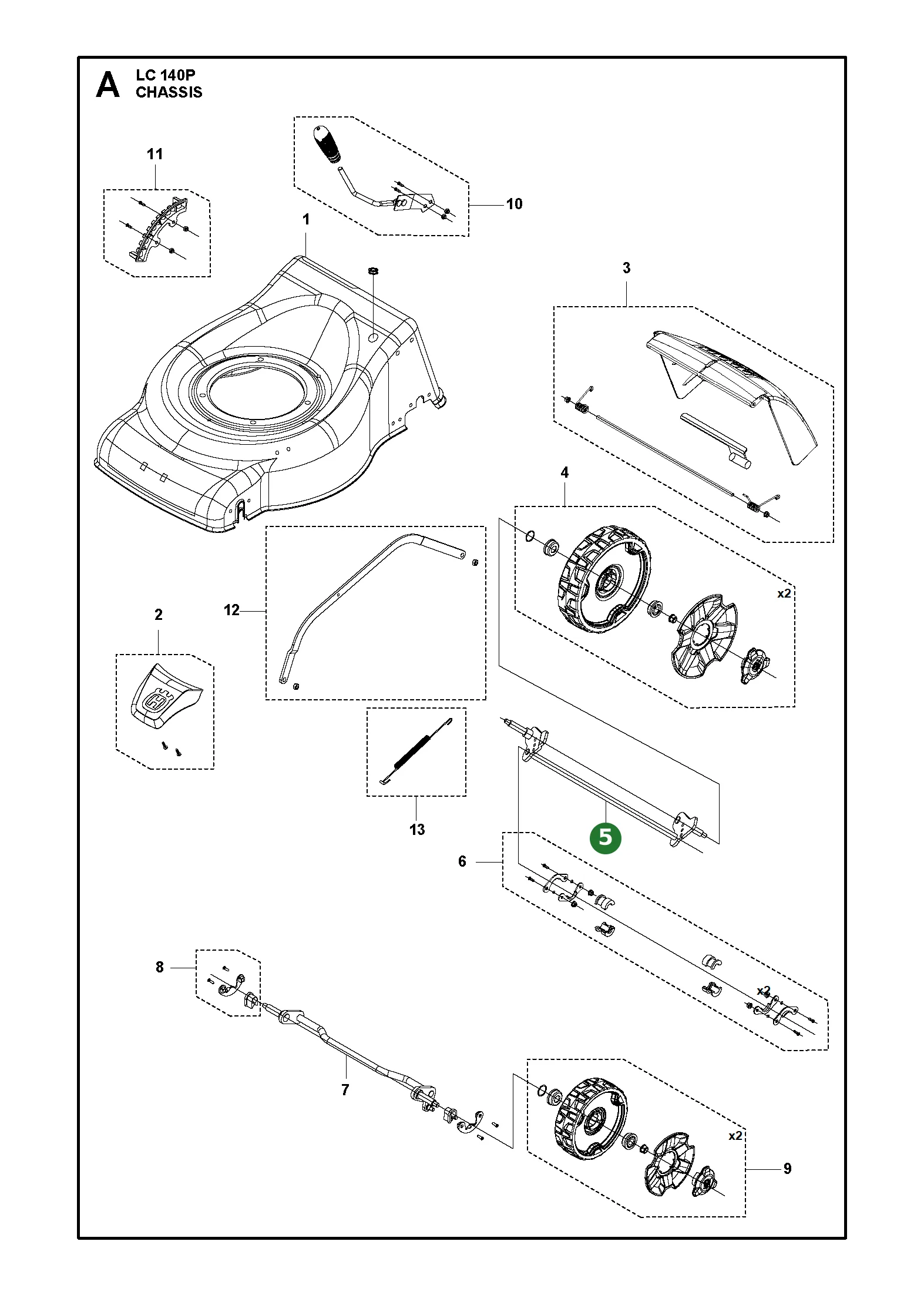

Achse (599349385) WHEEL AXLE | |||
| 1 |

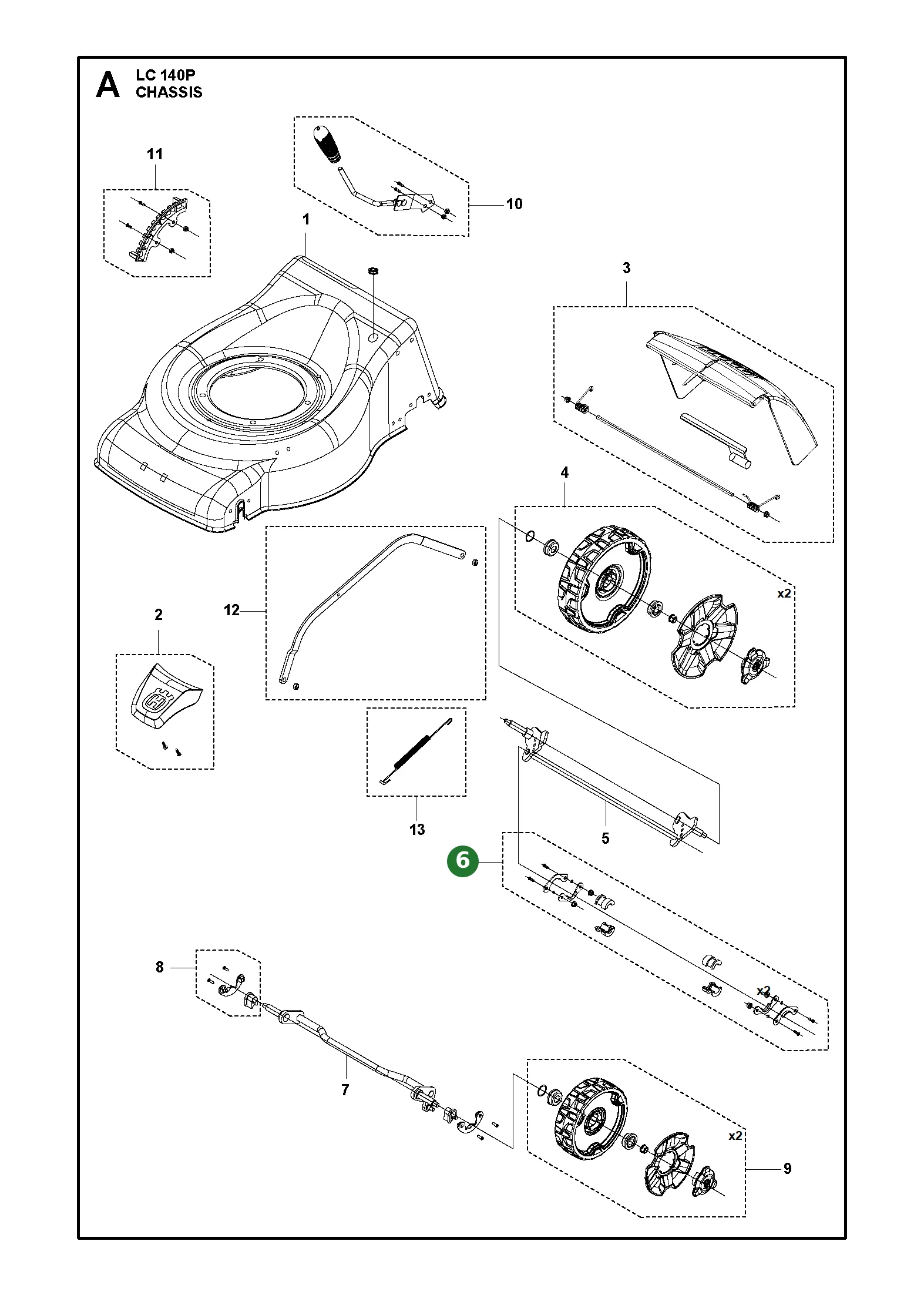

Hülse (599349417) REAR AXLE SLEEVE | |||
| 1 |

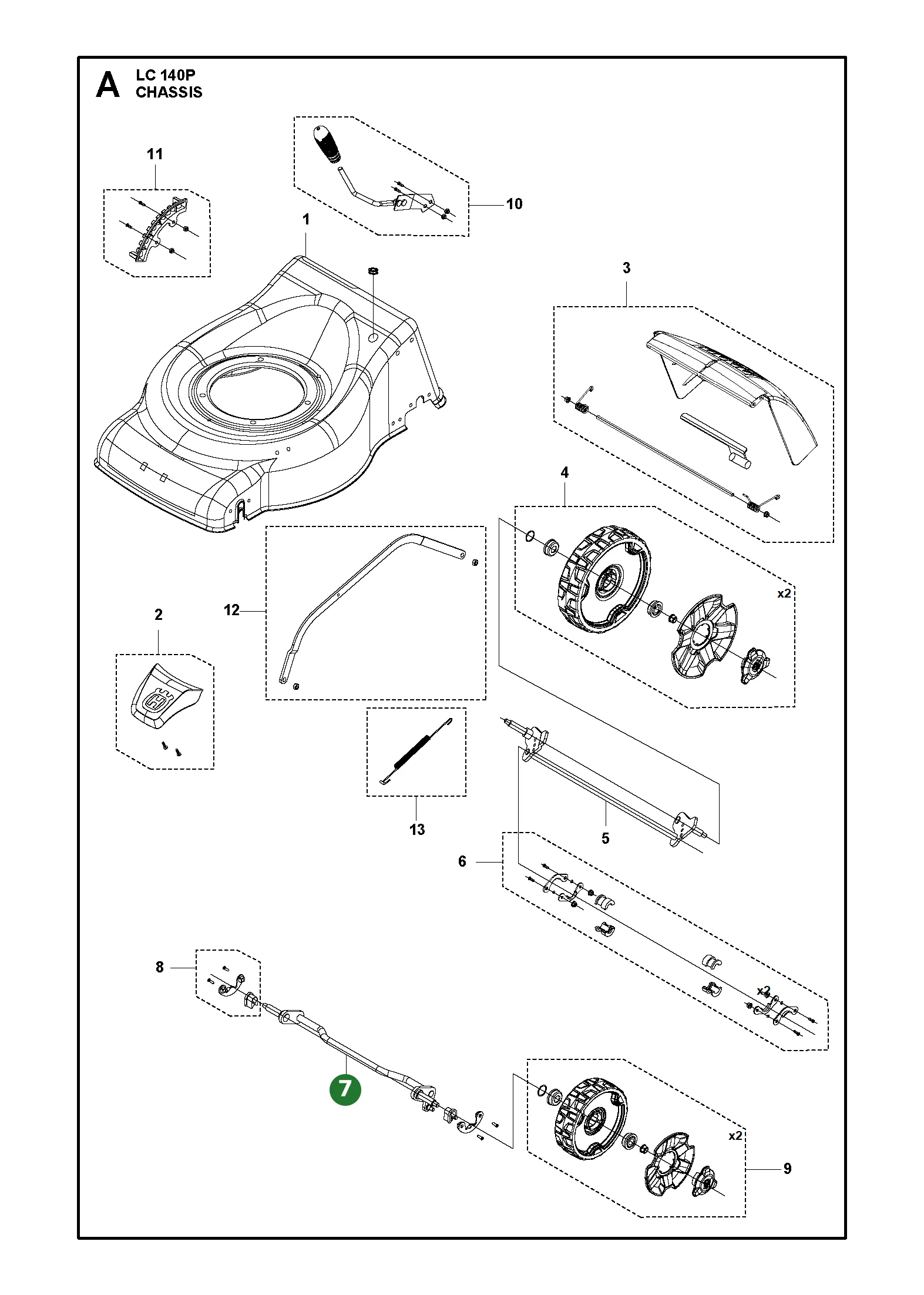

Achse (599349387) WHEEL AXLE | |||
| 1 |

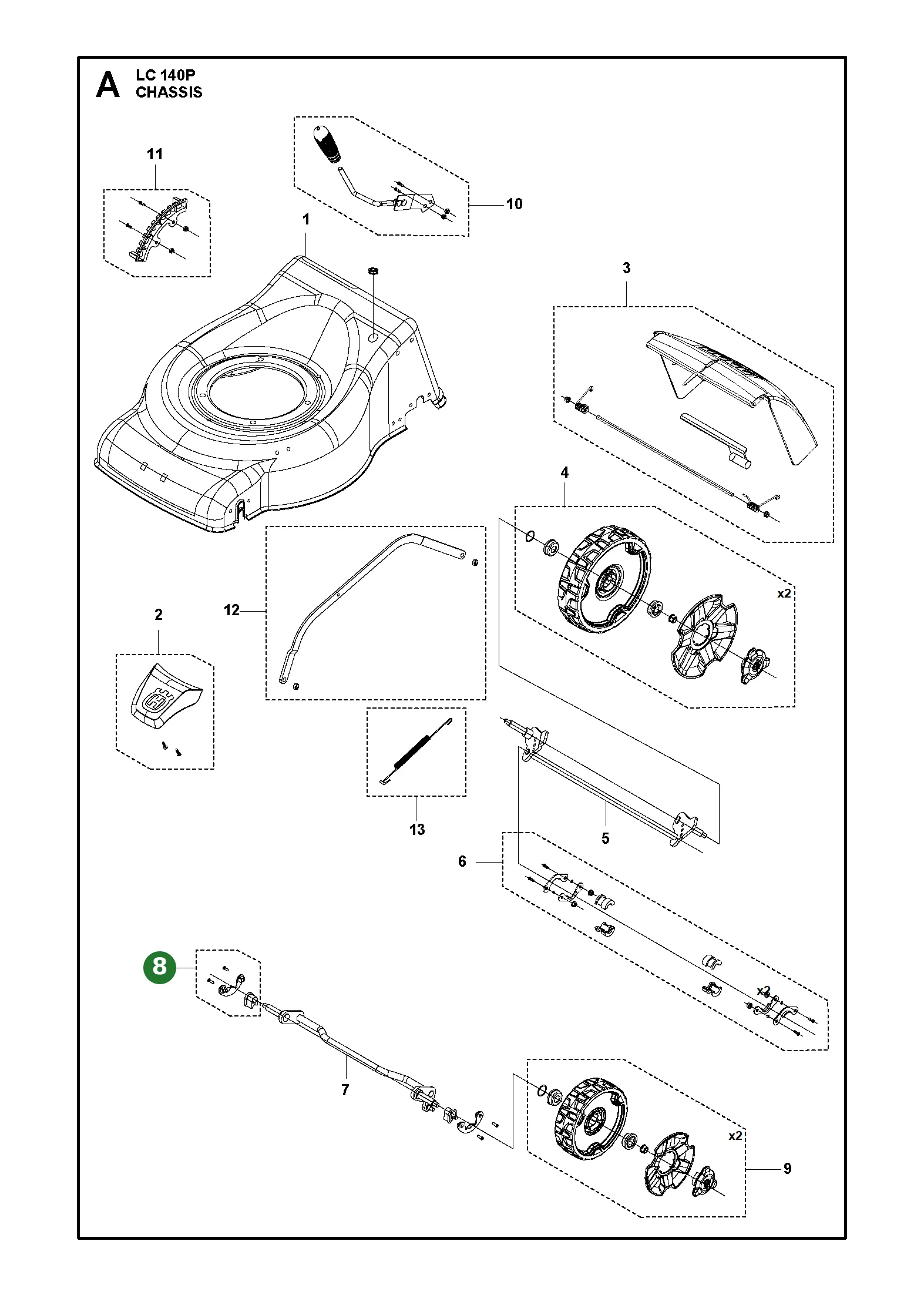

Achse (599349382) FRONT AXLE FIXING | |||
| 2 |
Laufrad (599349367) FRONT WHEEL | |||
| 1 |

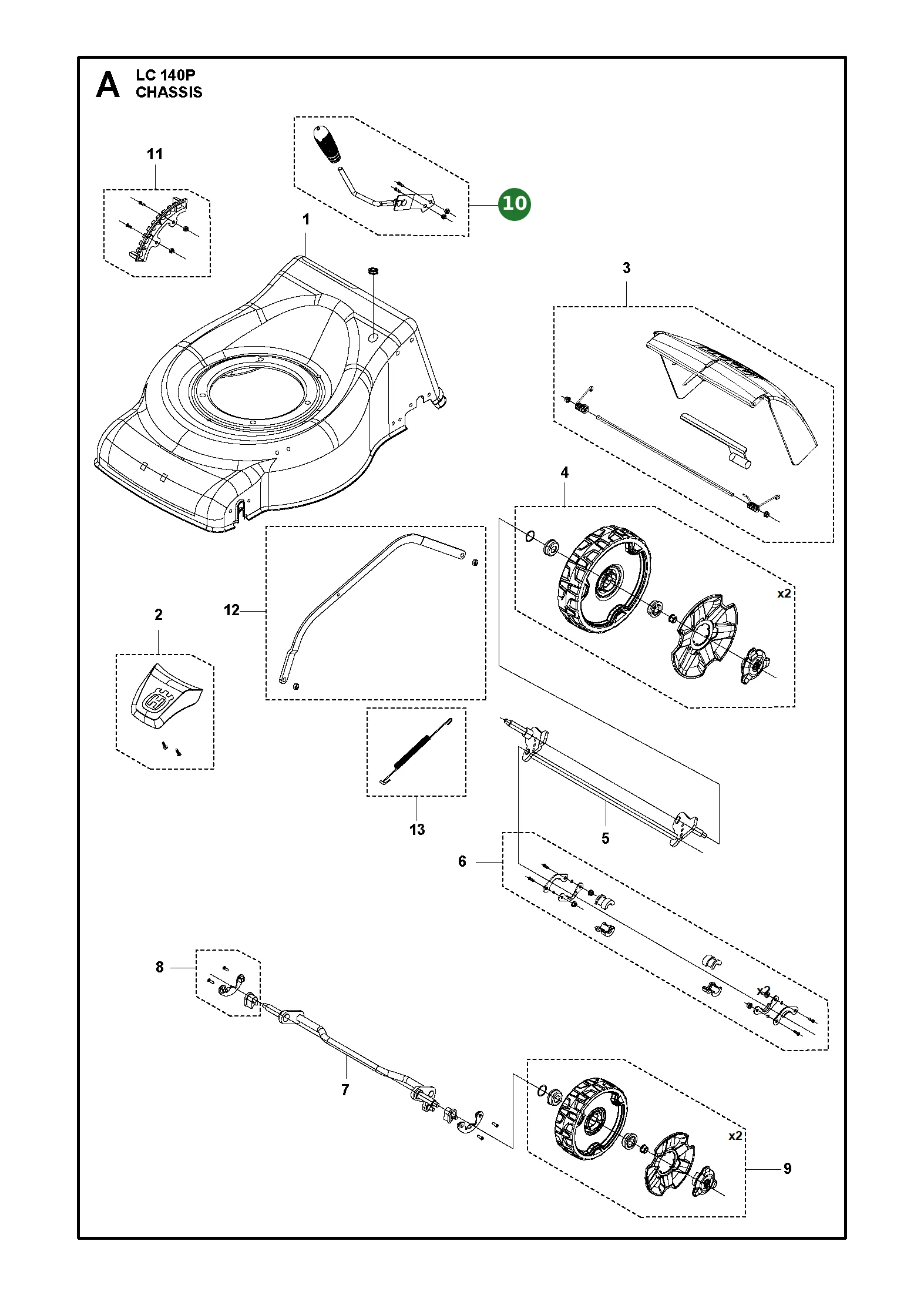

Griff Kpl. (599349398) HEIGHT ADJUSTMENT HANDLE | |||
| 1 |
Platten-kit (599349363) HEIGHT ADJUSTMENT PLATE | |||
| 1 |

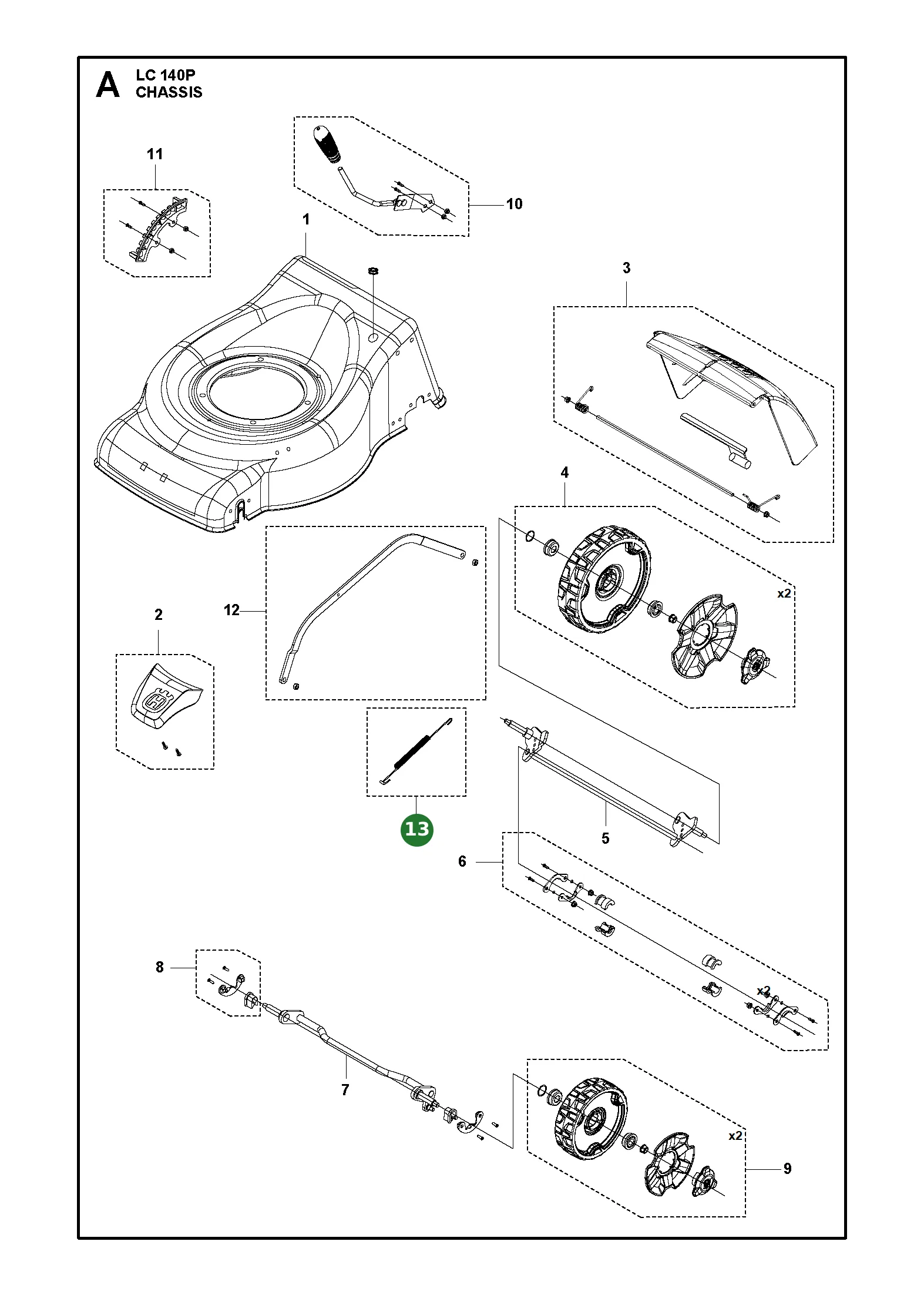

Stange (599349364) HEIGHT ADJUSTMENT ROD | |||
| 1 |
Feder (599349366) HEIGHT ADJUSTMENT SPRING |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |

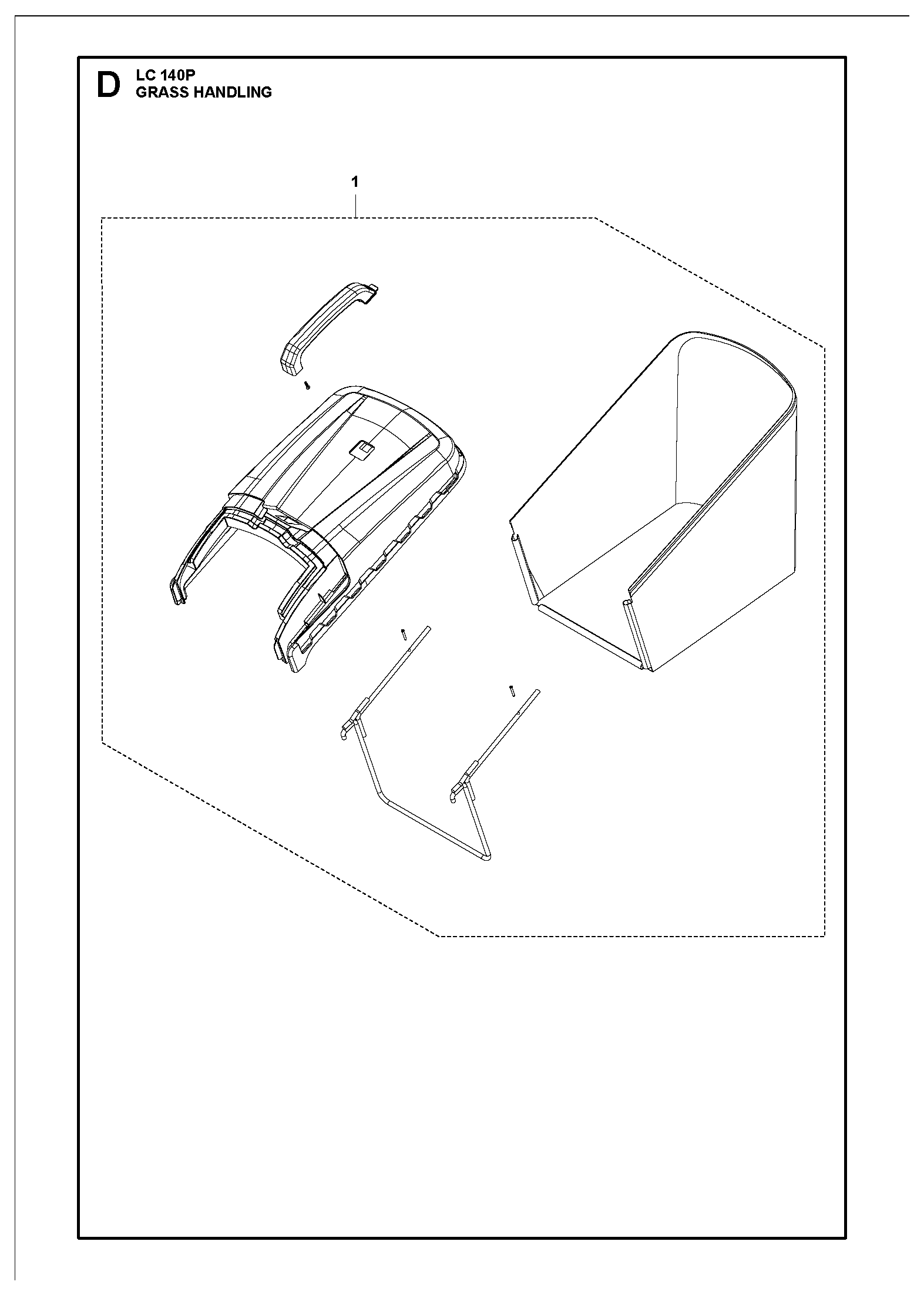

Grassfangsack Kpl (599349378) GRASS BAG KIT |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |

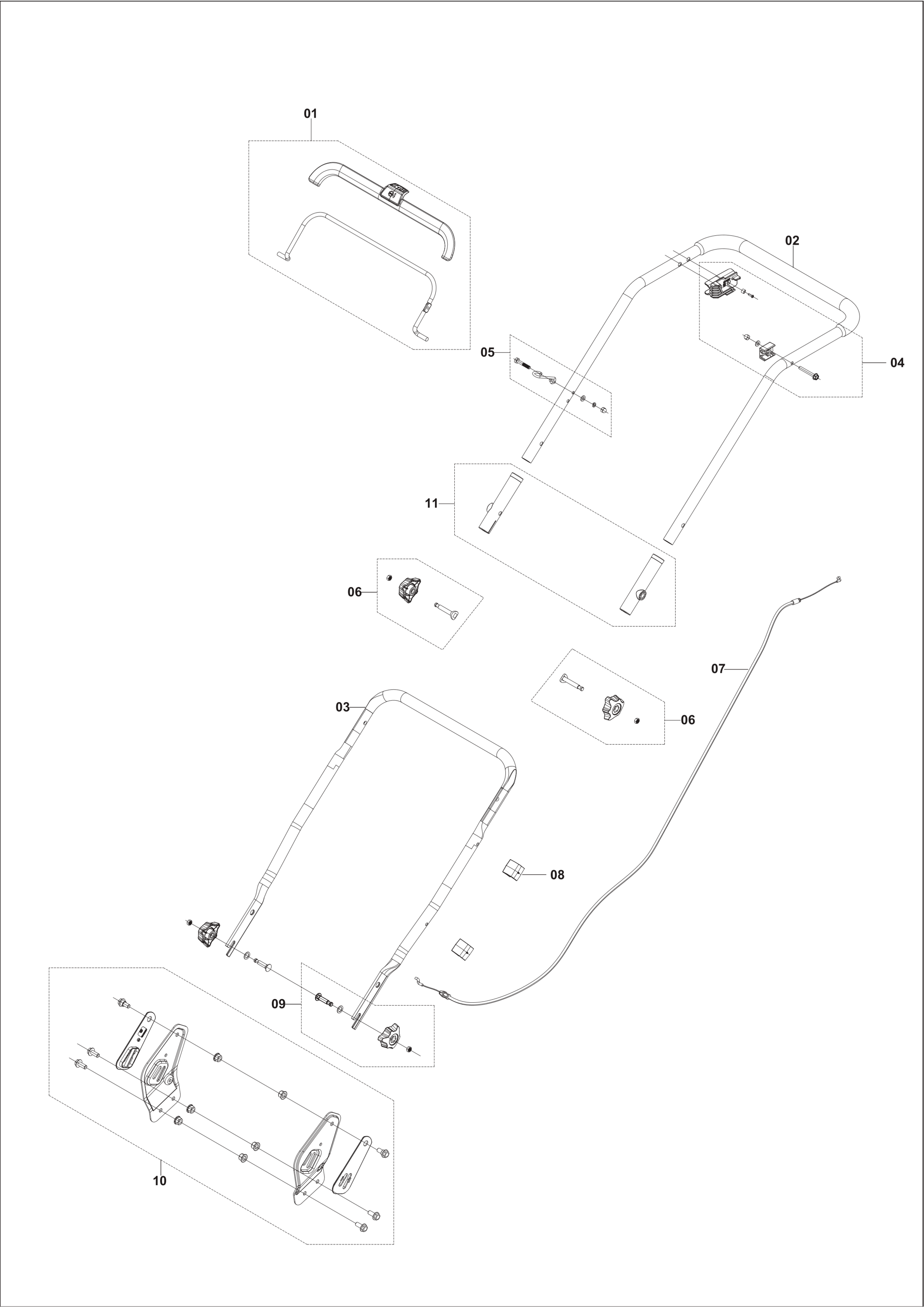

Regulierhebel Kpl. (599349362) BAIL ARM | |||
| 1 |
Griff Kpl. (599349402) HANDLE AND SHEATH | |||
| 1 |
Einstellhebel (599349397) LOWER HANDLE | |||
| 1 |
Regulierhebel Kpl. (599349361) BAIL ARM | |||
| 1 |
Griff Kpl. (529853401) HANDLE | |||
| 2 |  |
Knopf Kpl. (599349360) KNOB | ||
| 1 |
Kabel (599349391) FLAMEOUT CABLE | |||
| 1 |
Klammer (599349379) CABLE CLIP | |||
| 2 |
Knopf Kpl. (529596001) KNOB | |||
| 1 |
Support Kit (599349380) HANDLE BRACKET | |||
| 1 |

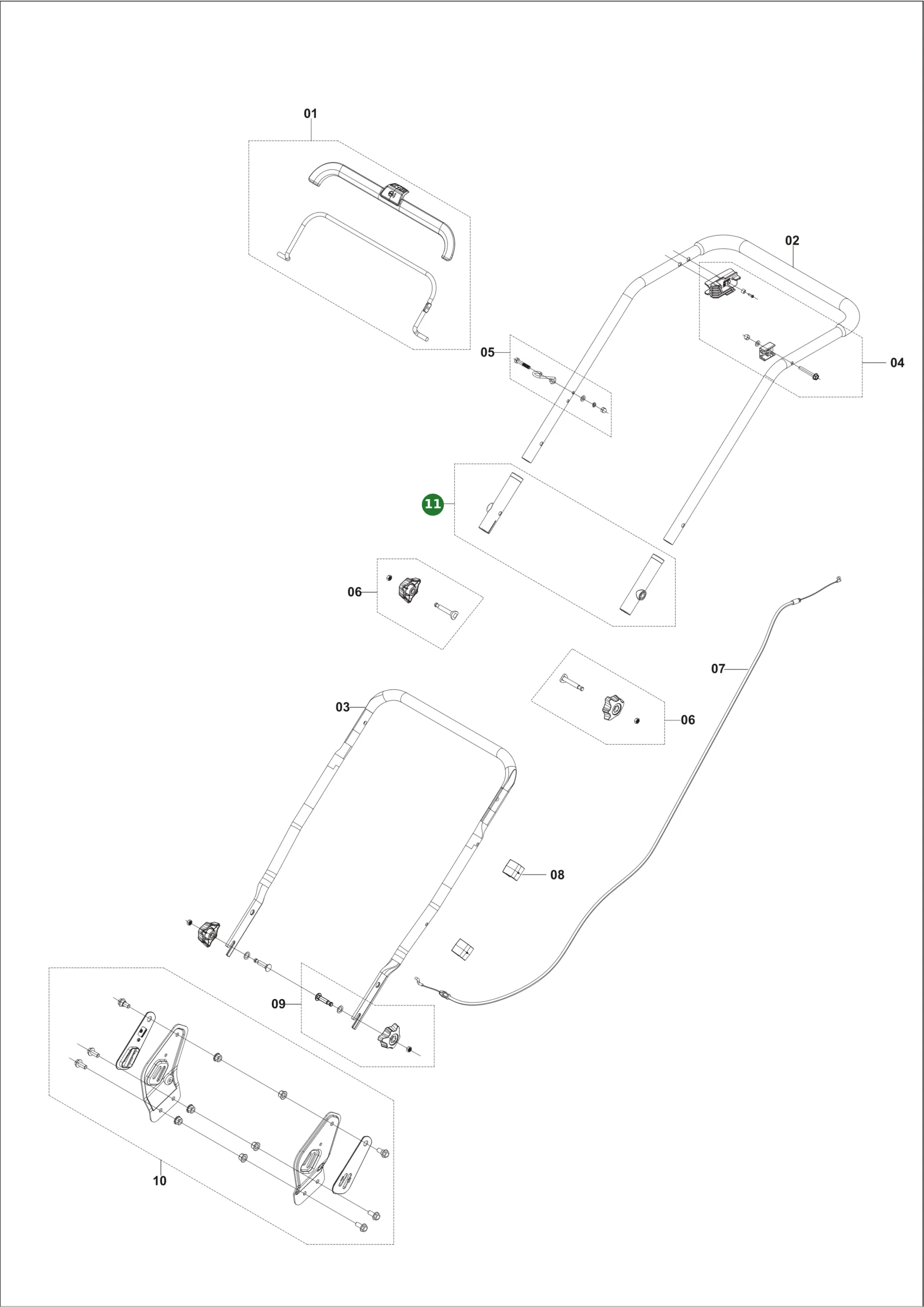

Hülse (599349418) ANTI FRICTION SLEEVE |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |

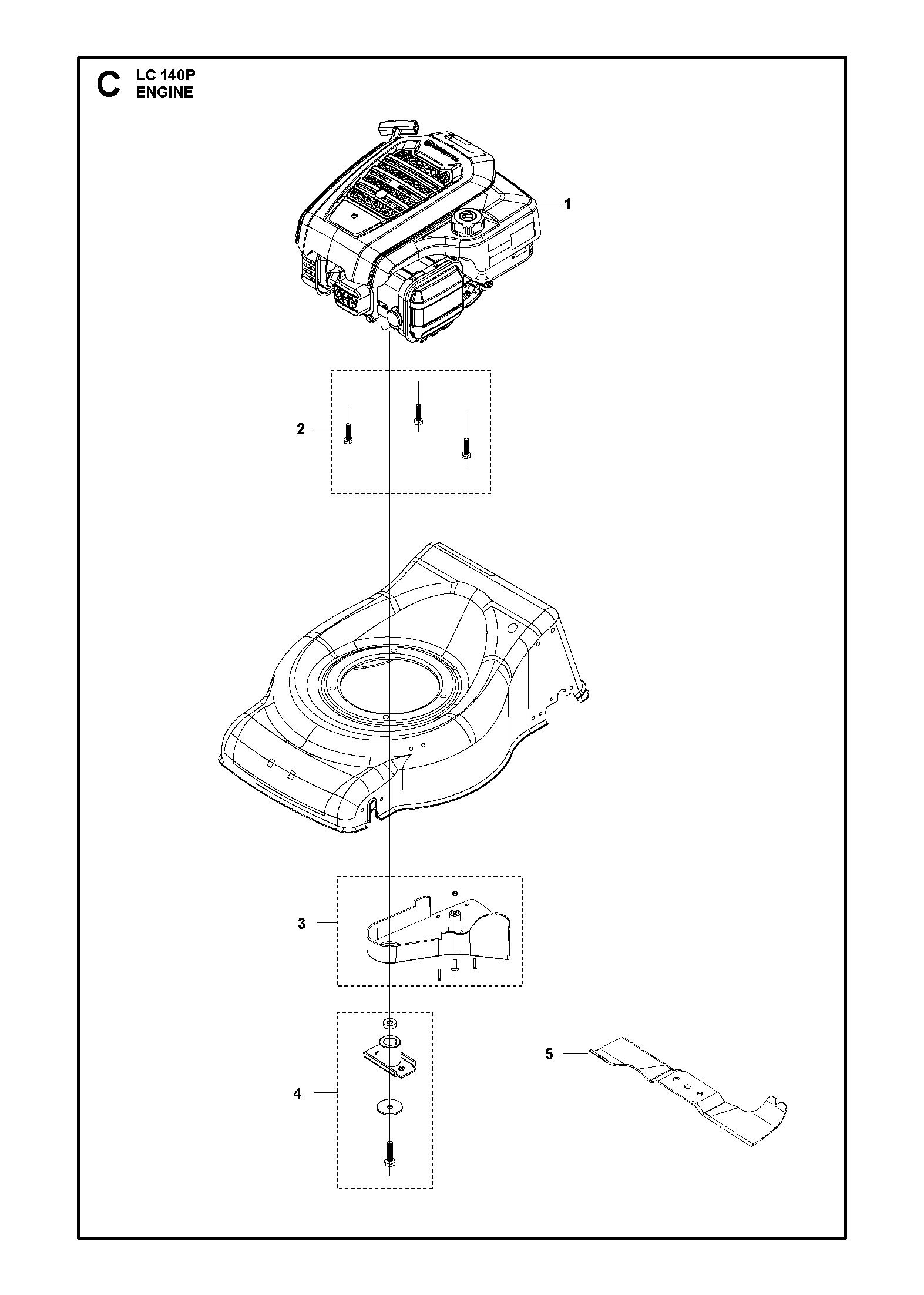

Motor (529347201) HS 123A, For PNC 970488101 Up to S/N 20240900070. For PNC 970488102, Up to S/N 20241200000 | |||
| 1 |
Motor (529347203) HS 123A, For PNC 970488101 From S/N 20240900071. For PNC 970488102, From S/N 20241200001 | |||
| 1 | MOTOR (529347204) HS 123A, For PNC 970488103 From S/N 20234600001 | |||
| 1 | MOTOR (529347202) HS 123A, For PNC 970488103 Up to S/N 20234600000 | |||
| 1 |
Installationskit (599349407) BOLTS AND NUTS | |||
| 1 |

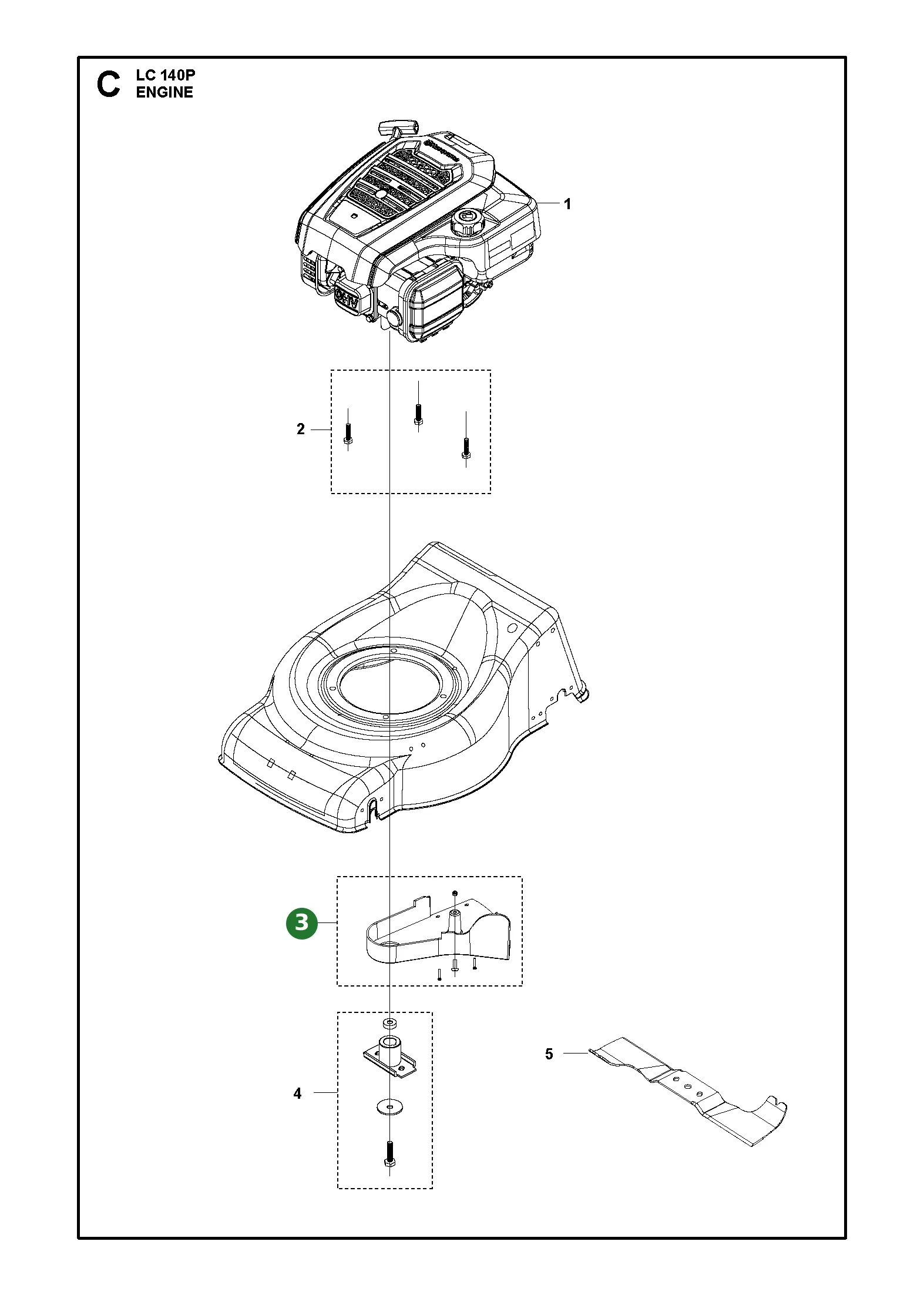

Abdeckung (599349376) BELT COVER | |||
| 1 |
Messeraufnahme (529737101) For PNC 970488101 Up to S/N 20240900070. For PNC 970488102, Up to S/N 20241200000. For PNC 970488103, Up to S/N 20234600000 | |||
| 1 |
Messeraufnahme (529737102) For PNC 970488101 From S/N 20240900071. For PNC 970488102, From S/N 20241200001, For PNC 970488103, From S/N 20234600001 | |||
| 1 |  | Klinge (587386310) |
