| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Rahmen (599349369) CHASSIS | |||
| 1 |
Abdeckungssatz (599349371) FRONT COVER | |||
| 1 |
Klappe (599349373) REAR DOOR | |||
| 1 |
Platten-kit (599349409) (blank | |||
| 2 |
Laufrad (599349423) REAR WHEEL KIT | |||
| 1 |
Achse (599349386) WHEEL AXLE | |||
| 1 |
Getriebesatz (599349420) REAR TRANSMISSION | |||
| 2 |
Zahnrad (599349396) WHEEL DRIVE | |||
| 2 |
Laufrad (599349367) FRONT WHEEL KIT | |||
| 2 |
Achse (599349387) WHEEL AXLE | |||
| 1 |
Achse (599349382) FRONT AXLE FIXING | |||
| 1 |
Griff Kpl. (599349399) HEIGHT ADJUSTMENT HANDLE | |||
| 1 |
Platten-kit (599349363) HEIGHT ADJUSTMENT PLATE | |||
| 1 |
Feder (599349366) HEIGHT ADJUSTMENT SPRING | |||
| 1 |
Stange (599349364) HEIGHT ADJUSTMENT ROD | |||
| 1 |
Lager (547725246) BEARING | |||
| 1 |
Laufrad (587585501) REAR WHEEL | |||
| 1 |
Radabdeckung (587585101) REAR WHEEL HUB CAP | |||
| 1 |
Radabdeckung (587585301) REAR WHEEL COVER | |||
| 1 |
Radabdeckung (587585001) FRONT WHEEL HUB CAP |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Grassfangsack Kpl (599349378) GRASS BAG KIT |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Regulierhebel Kpl. (599349362) BAIL ARM | |||
| 1 |
Stange (599349415) DRIVE ROD | |||
| 1 |
Griff Kpl. (599349403) HANDLE AND SHEATH | |||
| 1 |
Einstellhebel (599349397) LOWER HANDLE | |||
| 1 |
Regulierhebel Kpl. (599349361) BAIL ARM | |||
| 1 |
Griff Kpl. (529853401) HANDLE | |||
| 2 |
Knopf Kpl. (599349360) KNOB | |||
| 1 |
Kabel (599349391) FLAMEOUT CABLE | |||
| 1 |
Kabel Kpl. (599349393) DRIVE CABLE ASSY | |||
| 1 |
Klammer (599349379) CABLE CLIP | |||
| 2 |
Knopf Kpl. (529596001) KNOB | |||
| 1 |
Support Kit (599349380) HANDLE BRACKET | |||
| 1 |
Hülse (599349418) ANTI FRICTION SLEEVE |

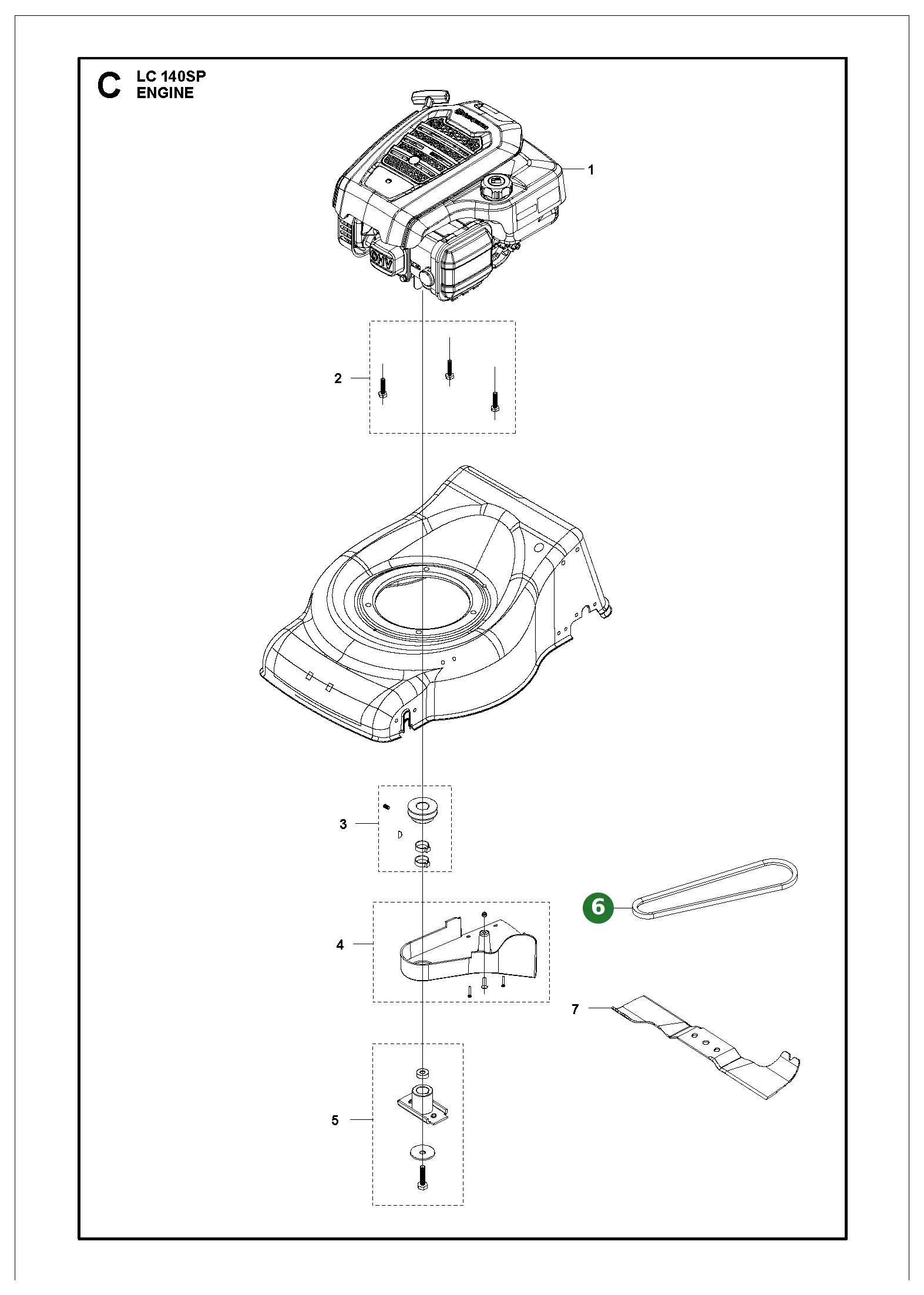

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Motor (529347203) HS 123A, From S/N 20240800247 | |||
| 1 |
Motor (529347201) HS 123A, Up to S/N 20240800246 | |||
| 1 |
Installationskit (599349407) BOLTS AND NUTS | |||
| 1 |
Riemenscheibe (599349413) Up to S/N 20240800246 | |||
| 1 |
Riemenscheibe (529596102) From S/N 20240800247 | |||
| 1 |
Abdeckung (599349376) BELT COVER | |||
| 1 |
Messeraufnahme (529737102) From S/N 20240800247 | |||
| 1 |
Messeraufnahme (529737101) Up to S/N 20240800246 | |||
| 1 |
Riemen (599349389) BELT | |||
| 1 | Klinge (587386310) |
