| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Griff (531147196) GRASSBAG HOLDER | |||
| 1 | Grasfangbeutel (531147197) |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Klappe (531147182) REAR FLAP | |||
| 1 | Rahmen (531147183) | |||
| 1 |
Abdeckungssatz (531147184) BELT PROTECTION COVER | |||
| 1 | Höheneinstellung (531146747) | |||
| 1 | HÖHENEINSTELLUNG (540092001) For PNC 970541907, 970541908 | |||
| 1 |
Abdeckungssatz (531147185) BASE COVER | |||
| 1 | Feder (531147181) | |||
| 1 | Verbindungsstange (531147186) | |||
| 1 | VERBINDUNGSSTANGE (540091701) For PNC 970541907, 970541908 | |||
| 1 |
Laufrad (531147210) REAR WHEEL | |||
| 1 | ACHSE (540091901) For PNC 970541907, 970541908 | |||
| 1 |
Achse (531147198) REAR AXLE | |||
| 1 |
Getriebesatz (531147199) Rear Transmission | |||
| 1 |
Zahnrad (531147201) WHEEL DRIVE | |||
| 1 | Rad Kit (531146737) | |||
| 1 | ACHSE (540091601) For PNC 970541907, 970541908 | |||
| 1 | Achse (531147188) | |||
| 1 | Gewicht (531146739) | |||
| 1 |
Schiene (536433401) STRENGTH BAR | |||
| 1 | PLATTE (540092101) For PNC 970541907, 970541908 | |||
| 1 | ABDECKUNG (540092201) For PNC 970541907, 970541908 | |||
| 4 |
Verschlussbolzen (587913501) M8 | |||
| 2 | Radabdeckung (587585001) | |||
| 2 | Radabdeckung (587585101) | |||
| 2 |
Sicherungsmutter (522669302) M6 lock |

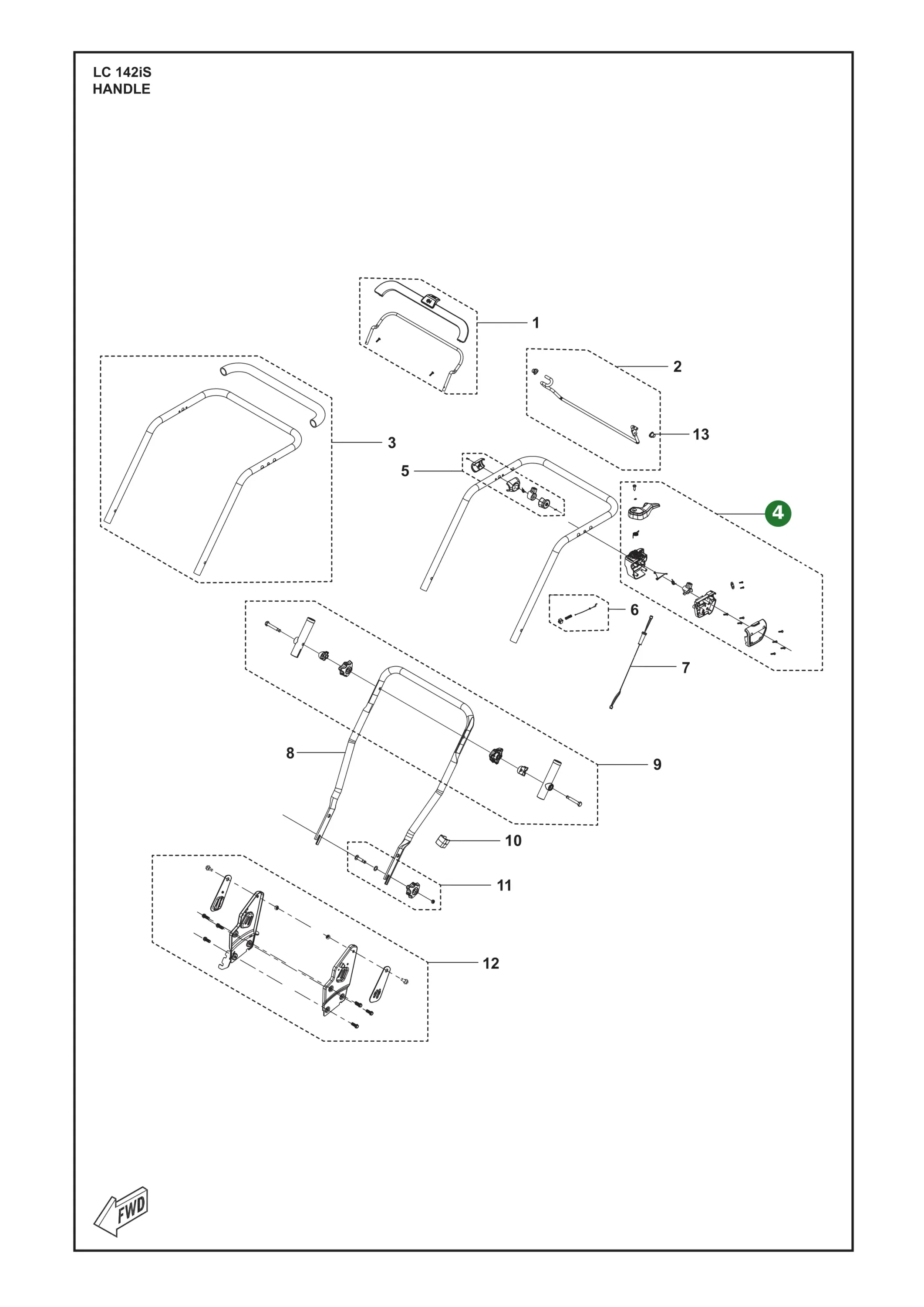

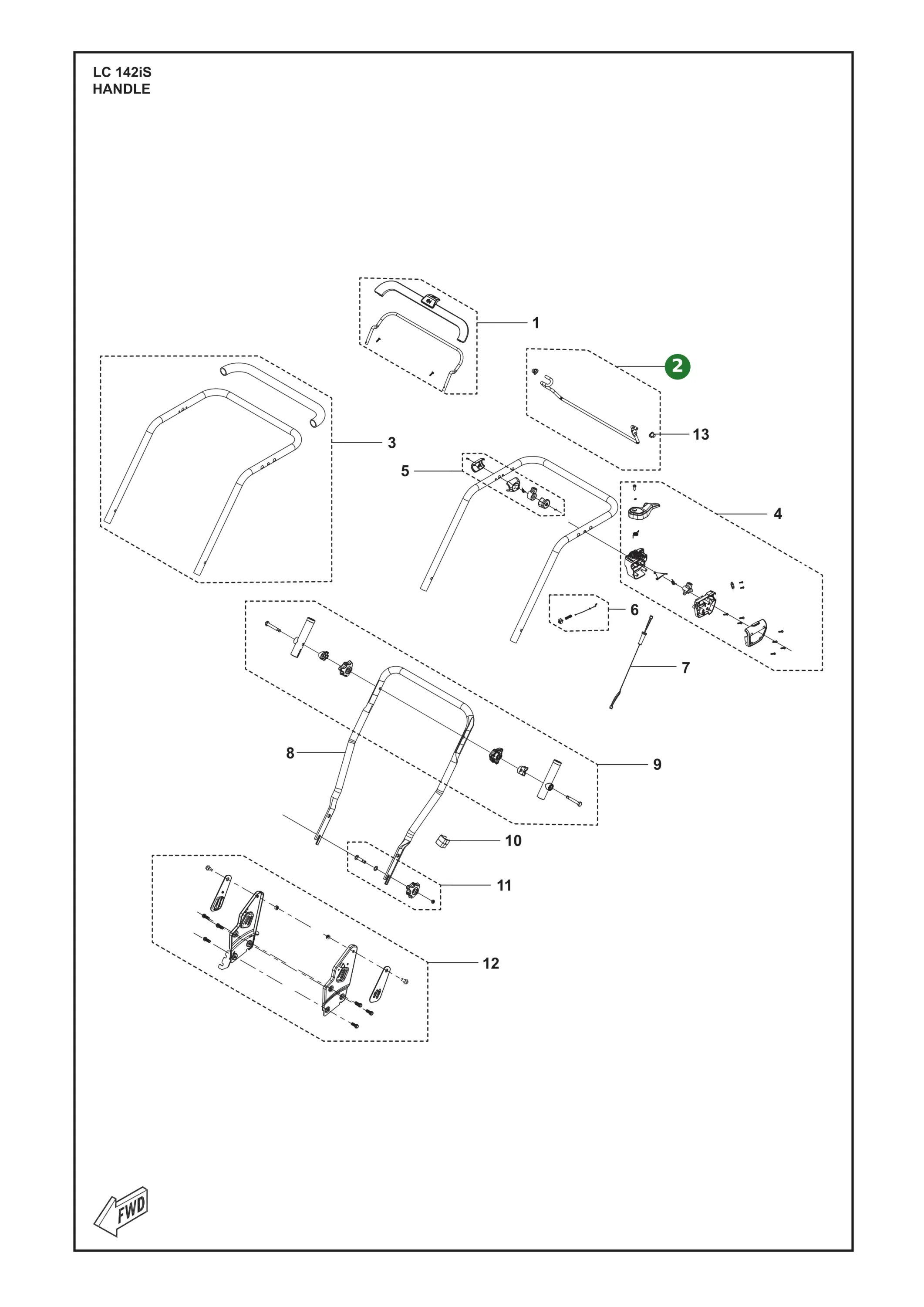

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Regulierhebel Kpl. (531146751) | |||
| 1 |
Stange (531147202) DRIVE ROD | |||
| 1 |
Griffrohr (531147203) UPPER HANDLE | |||
| 1 | Schaltdose Kpl. (531147208) | |||
| 1 | Sitzhalterung Kpl. (531146750) | |||
| 1 |
Draht (531147204) Kit | |||
| 1 |
Draht (531147205) HANDLE CONTROL | |||
| 1 |
Griffrohr (531147191) LOWER HANDLE | |||
| 1 |
Knopf Kpl. (531146762) Knob | |||
| 1 |
Klammer (599349379) Cable Clip | |||
| 1 |
Knopf Kpl. (529596001) Knob | |||
| 1 | Stützbügel Kpl. (531147212) | |||
| 1 | STÜTZBÜGEL (540091801) For PNC 970541907, 970541908 | |||
| 1 | Bushing (582895201) |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Abdeckungssatz (531146731) BATTERY LID KIT | |||
| 1 | Taste (501490101) | |||
| 1 | Batteriekasten (531147207) | |||
| 1 |
Draht (531146732) WIRE KIT | |||
| 1 | Motor Kit (531147211) | |||
| 1 | Bedienelement (547051601) | |||
| 1 |
Abdeckungssatz (531146736) POWER UNIT LOWER COVER | |||
| 1 | Installationskit (531147193) | |||
| 1 | Messeraufnahme (531146741) |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Mulchkit Für Akku-rasenmäher (42 Cm) (531223201) Mulch kit | |||
| 1 |
Klinge (534975601) Mulch blade (Standard US | |||
| 1 |
Klinge (534975501) Collect blade (Standard EU |
