| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Platten-kit (598684111) SIDE DISCHARGE PLATE | |||
| 1 |
Klappe (598684119) REAR DOOR | |||
| 1 | Dichtungsscheibe (598684128) | |||
| 1 | Rahmen (598861201) | |||
| 1 |
Abdeckungssatz (598684122) FRONT COVER | |||
| 1 |
Achse (598818701) For 970488301, 970488303 | |||
| 1 |
Achse (529595301) For 970488302, 970488304 | |||
| 1 |
Laufrad (598512901) FRONT WHEEL, kit contains 2 wheels | |||
| 1 | STAUBDICHTUNG (598721701) For 970488301, 970488303 | |||
| 1 |
Staubdichtung (529595401) For 970488302, 970488304 | |||
| 1 | ACHSE (598513301) REAR | |||
| 1 |
Achse (598684109) For 970488301, 970488303 | |||
| 1 |
Achse (529595501) For 970488302, 970488304 | |||
| 1 |
Laufrad (529595601) For 970488302, 970488304. REAR WHEEL, kit contains 2 wheels | |||
| 1 |
Laufrad (598684103) For 970488301, 970488303. REAR WHEEL, kit contains 2 wheels | |||
| 1 |
Stange (529596201) For 970488302, 970488304. HEIGHT ADJUSTMENT ROD | |||
| 1 |
Stange (599138801) For 970488301, 970488303. HEIGHT ADJUSTMENT ROD | |||
| 1 |
Feder (599138901) HEIGHT ADJUSTMENT SPRING | |||
| 1 |
Abdeckung (598819001) SIDE PROTECTION COVER | |||
| 1 |
Griff Kpl. (599139101) For 970488301, 970488303. HEIGHT ADJUSTMENT HANDLE | |||
| 1 |
Griff Kpl. (529595701) For 970488302, 970488304. HEIGHT ADJUSTMENT HANDLE | |||
| 1 |
Platten-kit (529595801) For 970488302, 970488304. HEIGHT ADJUSTMENT PLATE | |||
| 1 |
Platten-kit (599139001) For 970488301, 970488303. HEIGHT ADJUSTMENT PLATE | |||
| 2 | Radabdeckung (587585101) | |||
| 2 | Radabdeckung (587585301) | |||
| 4 | Verschlussbolzen (587913501) | |||
| 8 | Lager (587912901) | |||
| 4 | Scheibe (587914601) | |||
| 2 | Radabdeckung (587585001) | |||
| 2 | Radabdeckung (587585201) | |||
| 2 | Laufrad (587585401) |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Grassfangsack Kpl (598684121) |

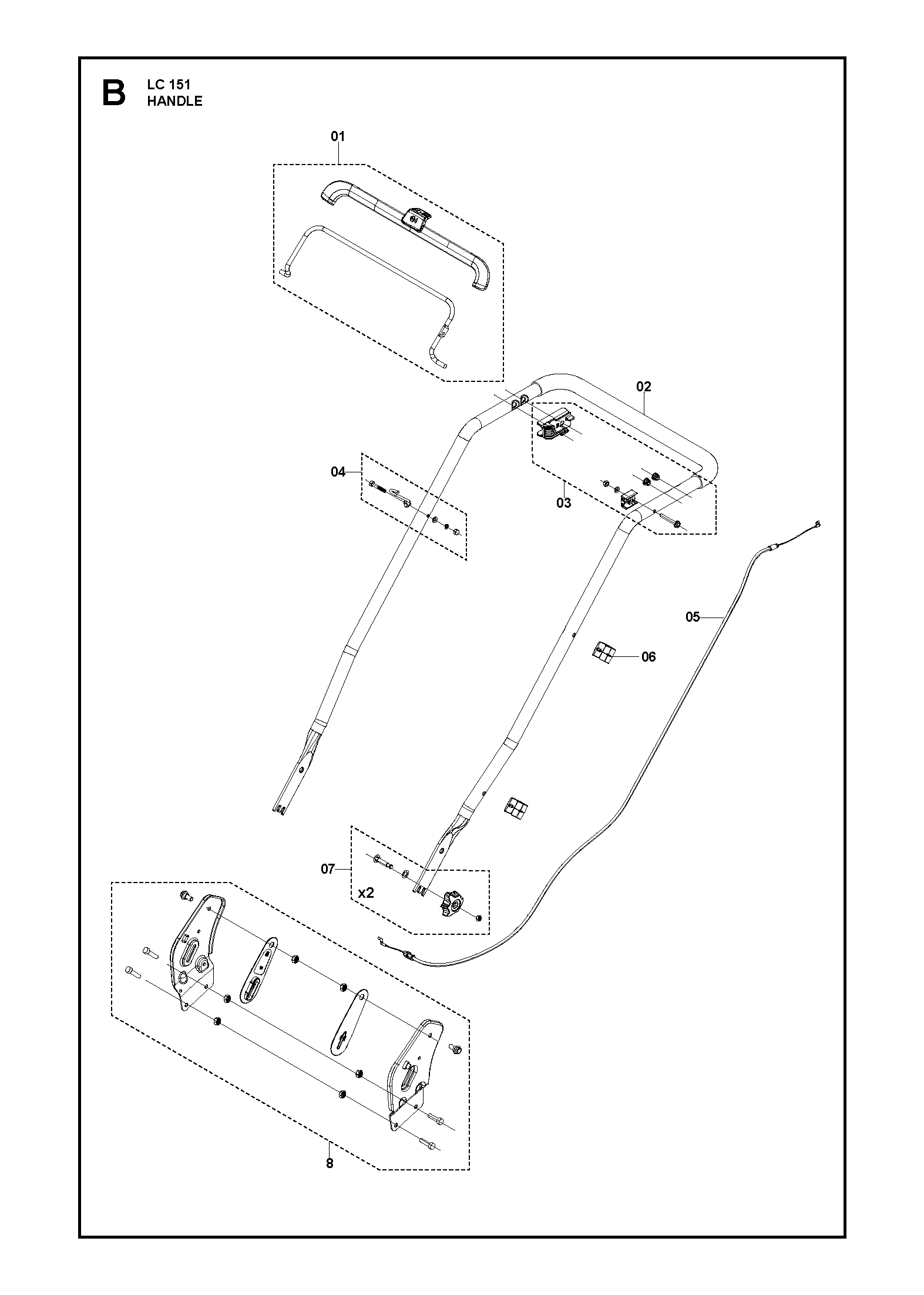

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Regulierhebel Kpl. (598818201) | |||
| 1 | Griff Kpl. (598722001) | |||
| 1 | Regulierhebel Kpl. (598684129) | |||
| 1 |
Griff Kpl. (598825601) KIT | |||
| 1 |
Kabel (529596301) FLAMEOUT CABLE | |||
| 1 |
Klammer (598861401) CABLE CLIP | |||
| 2 |
Knopf Kpl. (598684125) For 970488301, 970488303 | |||
| 2 |
Knopf Kpl. (529596001) For 970488302, 970488304 | |||
| 1 |
Support Kit (598684113) HANDLE BRACKET |

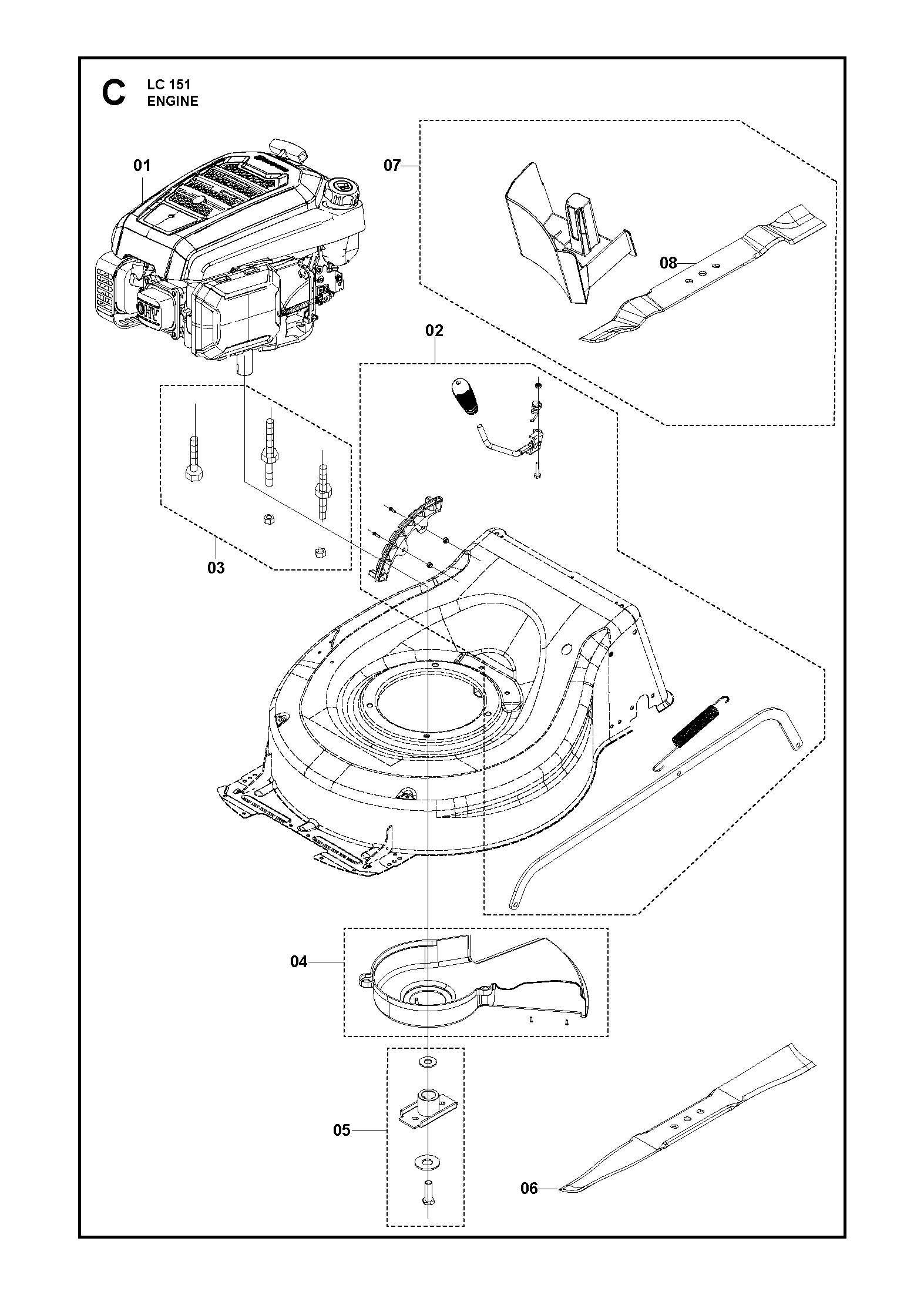

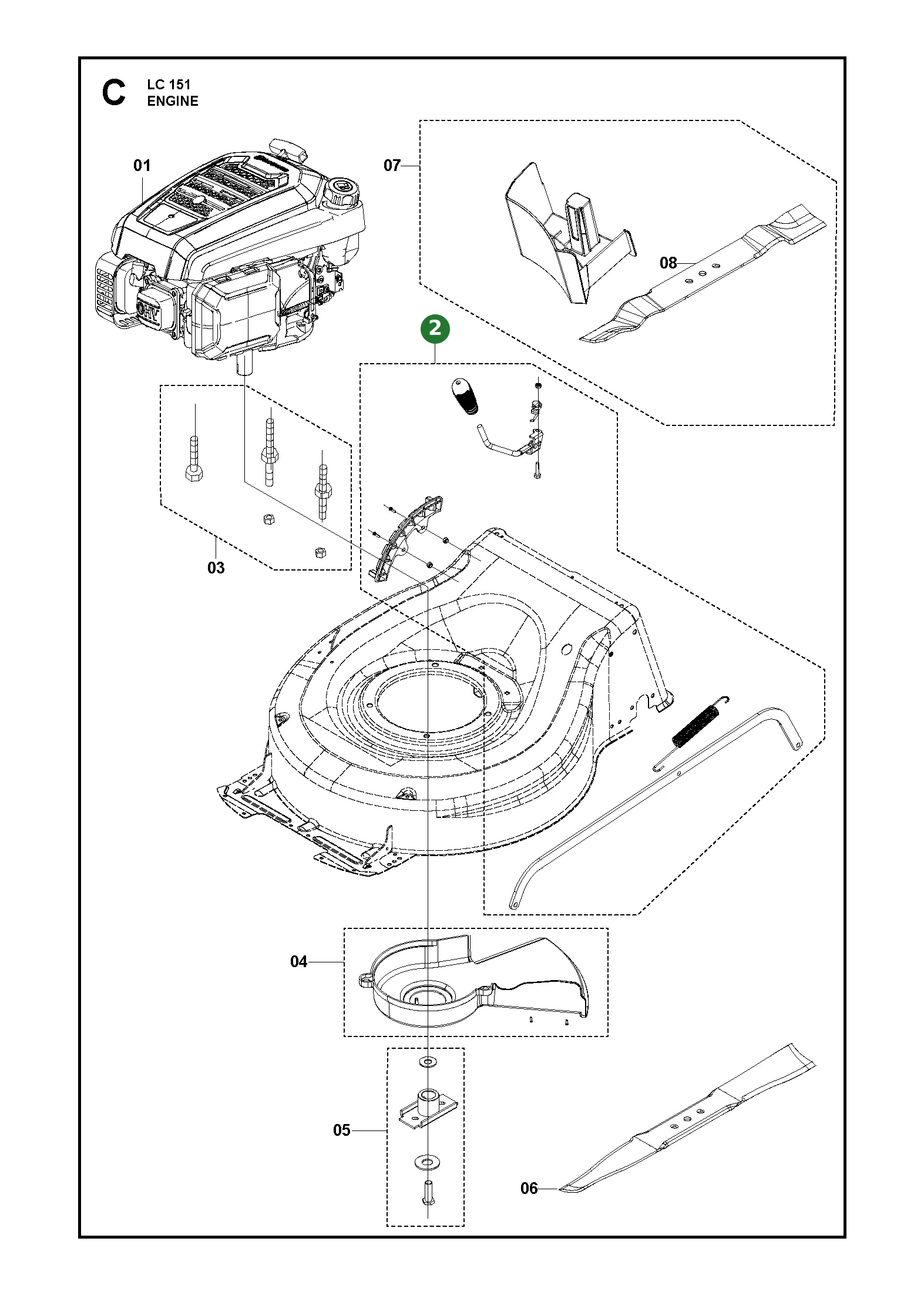

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Motor (599912504) For 970488301 from S/N 20230100001, 970488302 EU/LATAM from S/N 202321001801 | |||
| 1 | MOTOR (599912505) For 970488303 from S/N 20254500001. CDA/PARTS ONLY SEE HS166A ENGINE IPL | |||
| 1 |
Motor (599912301) For 970488301 AUSTRALIA | |||
| 1 |
Motor (599912502) For 970488303 up to S/N 20221000880. CDA/PARTS ONLY SEE HS166A ENGINE IPL | |||
| 1 |
Motor (599912501) For 970488301 up to S/N 20230100000, 970488302 EU/LATAM up to S/N 20232100180 | |||
| 1 | MOTOR (599912503) For 970488304 BR/PY | |||
| 1 |
Höheneinstellung (529595901) For 970488302, 970488304 | |||
| 1 | HÖHENEINSTELLUNG (598684107) For 970488301, 970488303 | |||
| 1 |
Installationskit (529595101) BOLTS AND NUTS | |||
| 1 |
Abdeckung (598513501) BELT COVER | |||
| 1 |
Messeraufnahme (529595001) For 970488301 up to S/N 20230100000, 970488302 EU/LATAM up to S/N 20232100180, 970488303 up to S/N 20221000880 | |||
| 1 |
Messeraufnahme (529595002) For 970488301 from S/N 20230100001, 970488302 EU/LATAM from S/N 20232100181, 970488303 from S/N 20254500001, All 970488304 | |||
| 1 |
Klinge (598562601) Collect blade | |||
| 1 |
Husqvarna Mulchkit Lc 153p/153s/151/151s (598018001) Accessory, Standard for 970488303 | |||
| 1 |
Klinge (597683901) Mulch blade |
