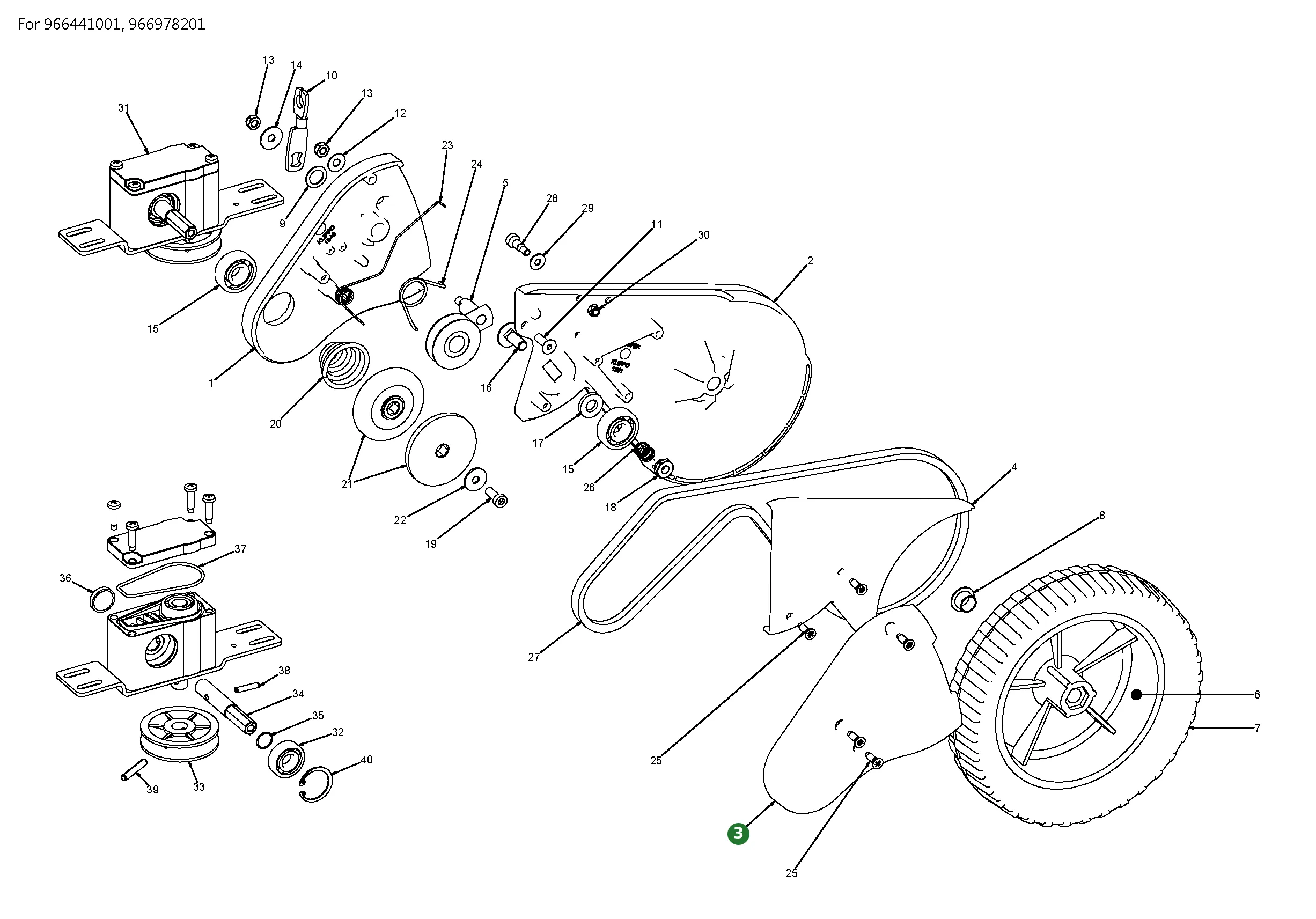

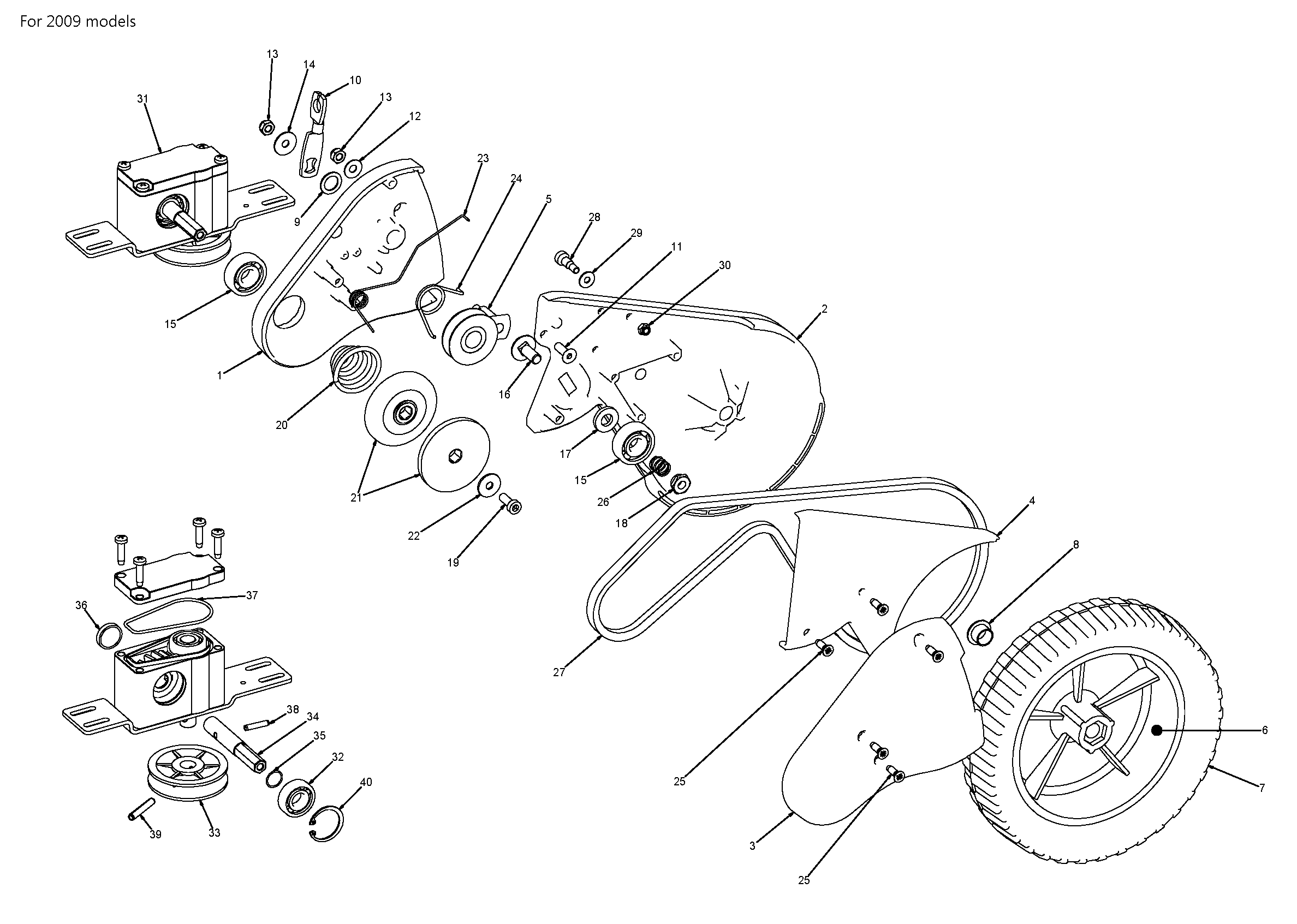

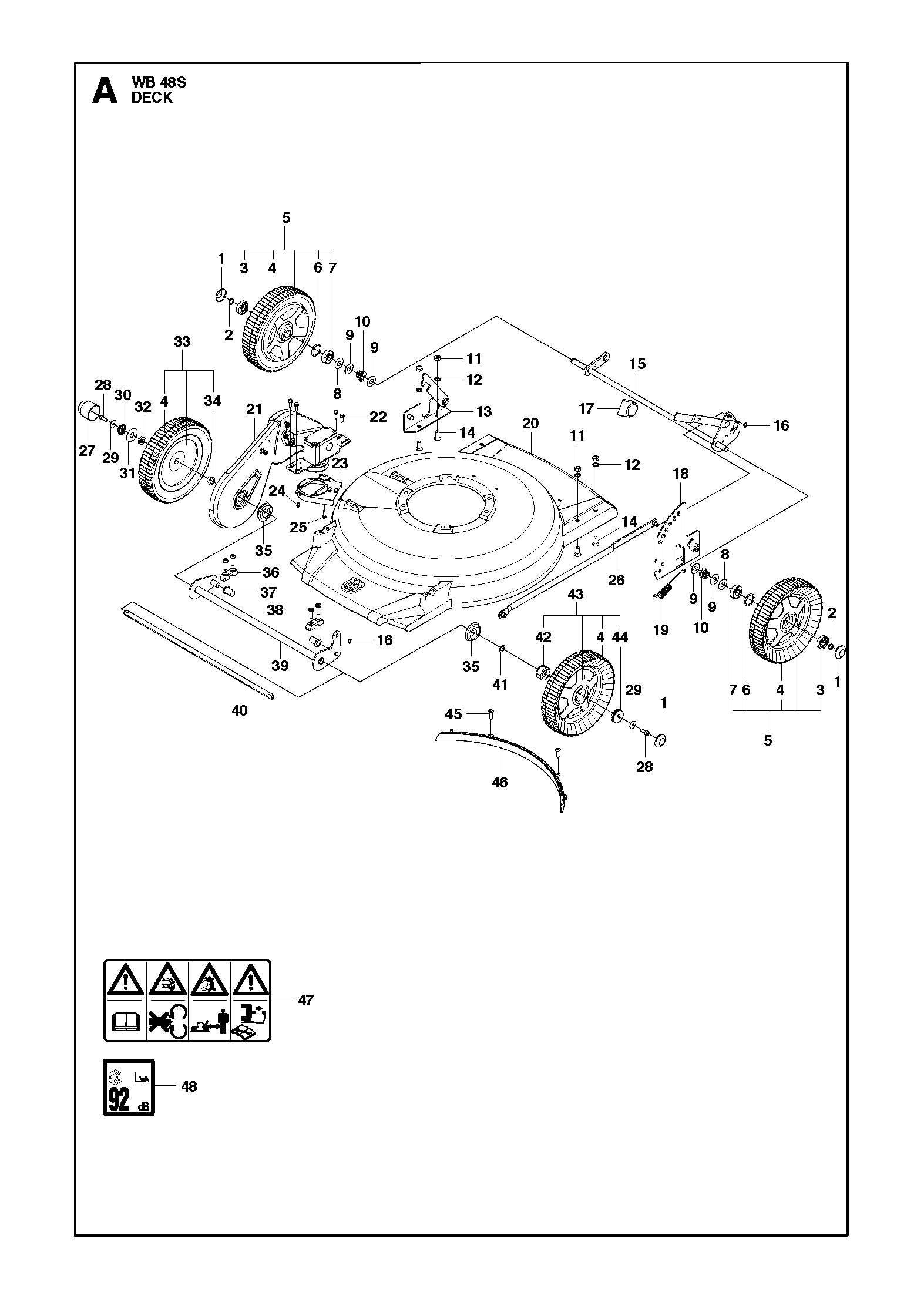

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | ABDECKUNG (502879901) | |||
| 1 | Abdeckung (502880001) | |||
| 1 | Abdeckung (502880101) | |||
| 1 | Abdeckung (502880201) | |||
| 1 | Riemenscheibe Kpl. (503323002) | |||
| 1 |  | Rad Kpl. (503317402) | ||
| 1 |  | Reifen (502945102) | ||
| 1 | Bushing (503277101) | |||
| 1 | Scheibe (504460801) | |||
| 1 | HEBEL (503322701) | |||
| 1 | Schraube (725636951) | |||
| 1 | Feder (503324001) | |||
| 1 | Locking Nut Galvanized (504456101) | |||
| 1 | WASHER GALVANIZED (504466101) | |||
| 1 |  | Kugellager (503242901) | ||
| 1 | Bolzen (504460101) | |||
| 1 | Scheibe (504460601) | |||
| 1 | Barrel Nut (503317601) | |||
| 1 |  | Schraube Ihscm (504456701) | ||
| 1 | Feder (503323401) | |||
| 1 | Scheibe (503329501) | |||
| 1 | Scheibe (504459901) | |||
| 1 | Feder (502880301) | |||
| 1 | Feder (503326601) | |||
| 1 | Screw Itxcsfm (504460001) | |||
| 1 | Feder (503318701) | |||
| 1 |  | Riemen (589571001) | ||
| 1 | SCHRAUBE (504461901) | |||
| 1 | Washer, 5x13x1 (504456001) | |||
| 1 | Locking Nut Galvanized (504460301) | |||
| 1 | Schneckengetriebe Kpl. (586467101) | |||
| 1 | LAGER (505150101) | |||
| 1 | Riemenscheibe (503330101) | |||
| 1 | Welle (503330201) | |||
| 1 | O-RING (503330301) | |||
| 1 | Stopfen (503330401) | |||
| 1 | DICHTUNG (503330501) | |||
| 1 | Federstift (504455401) | |||
| 1 | Federstift (504455501) | |||
| 1 | SICHERUNGSRING (505150201) |

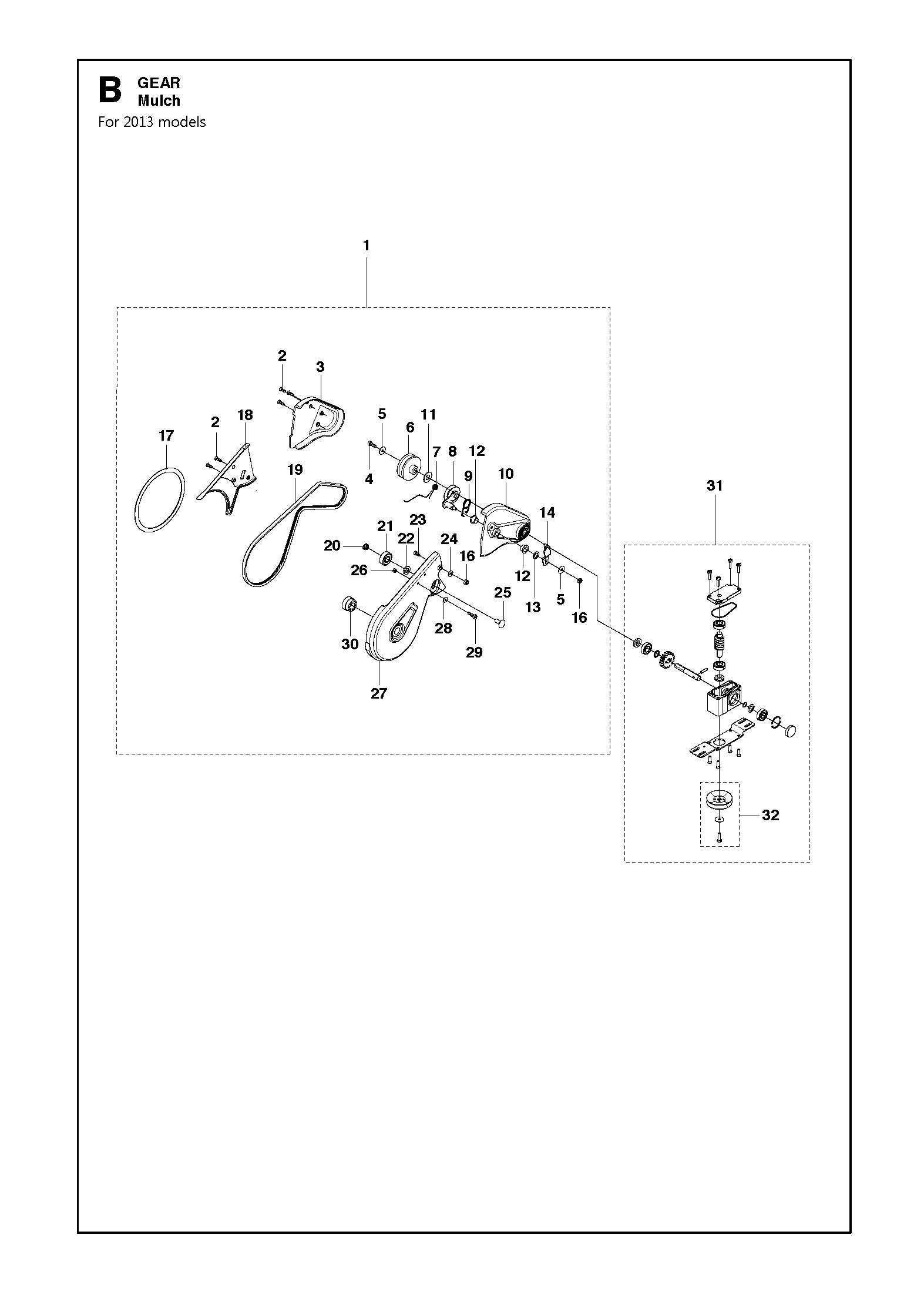

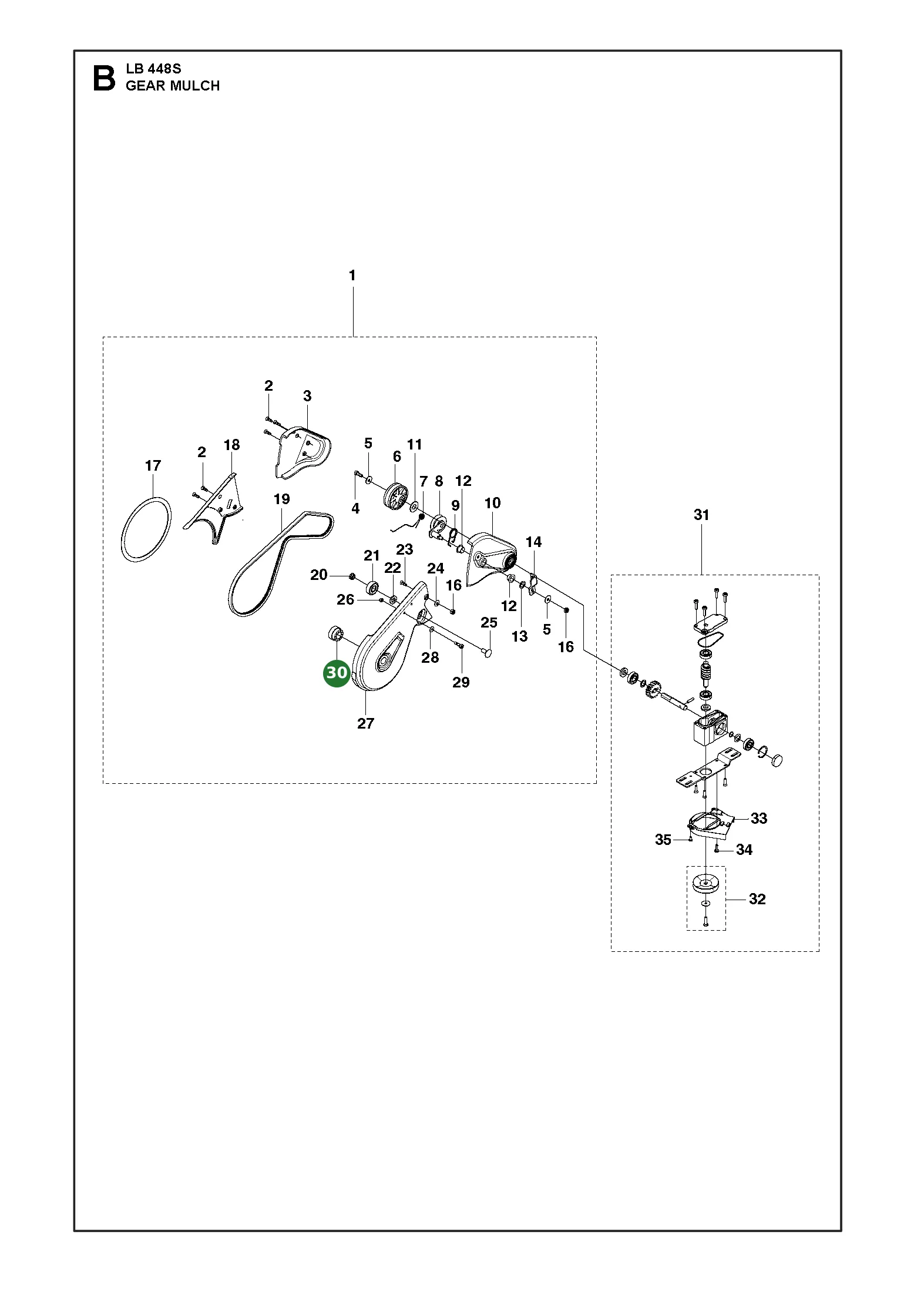

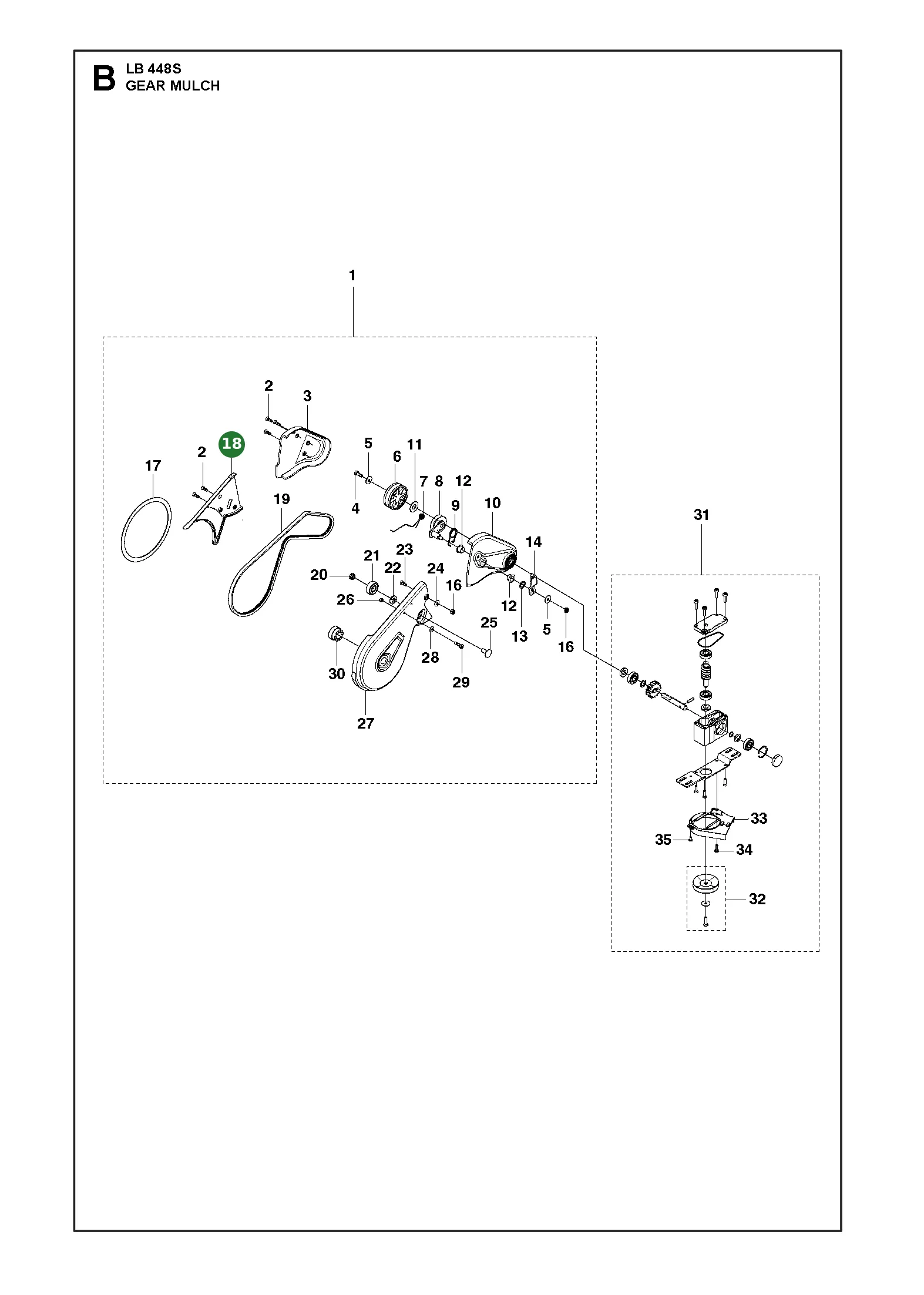

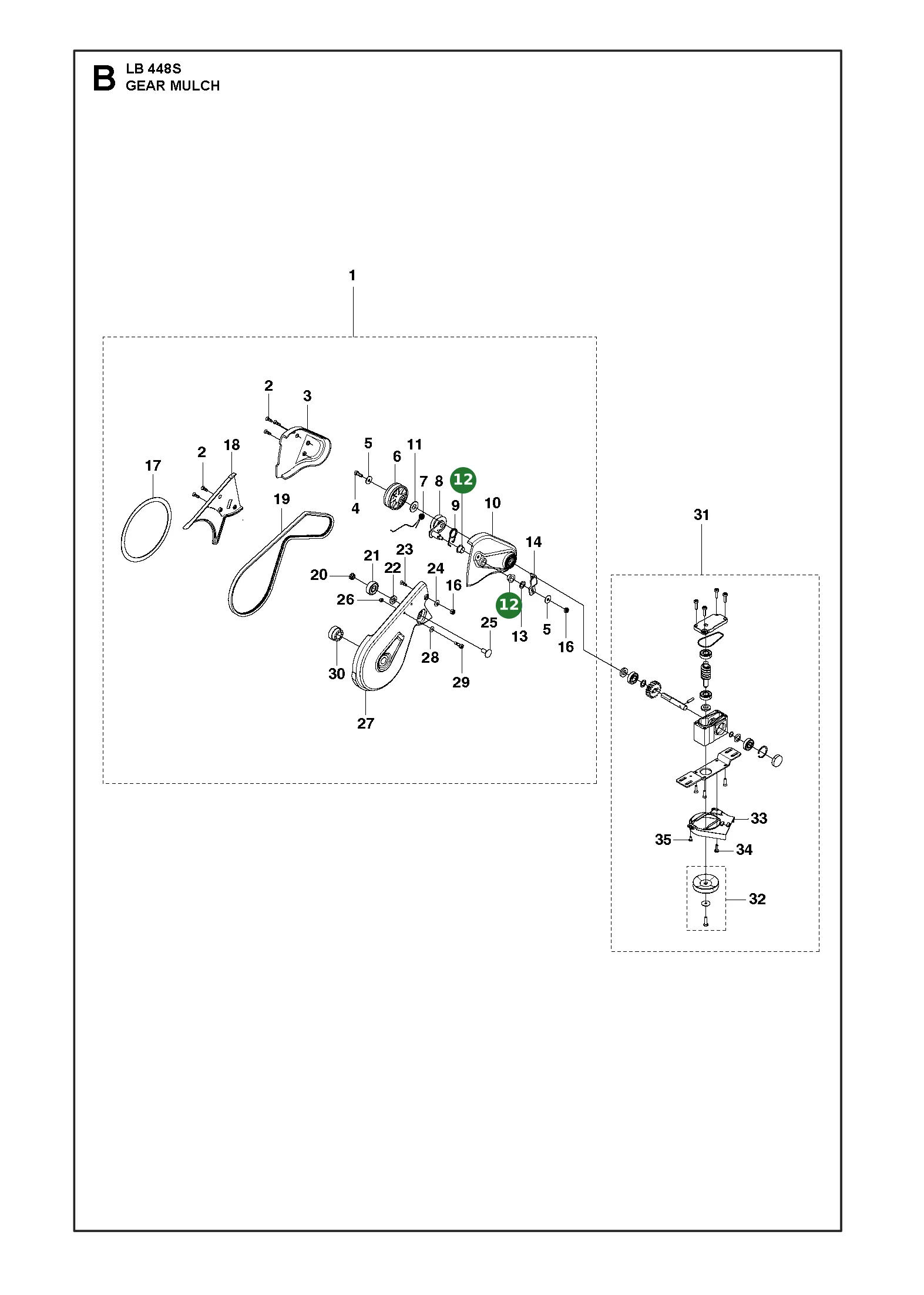

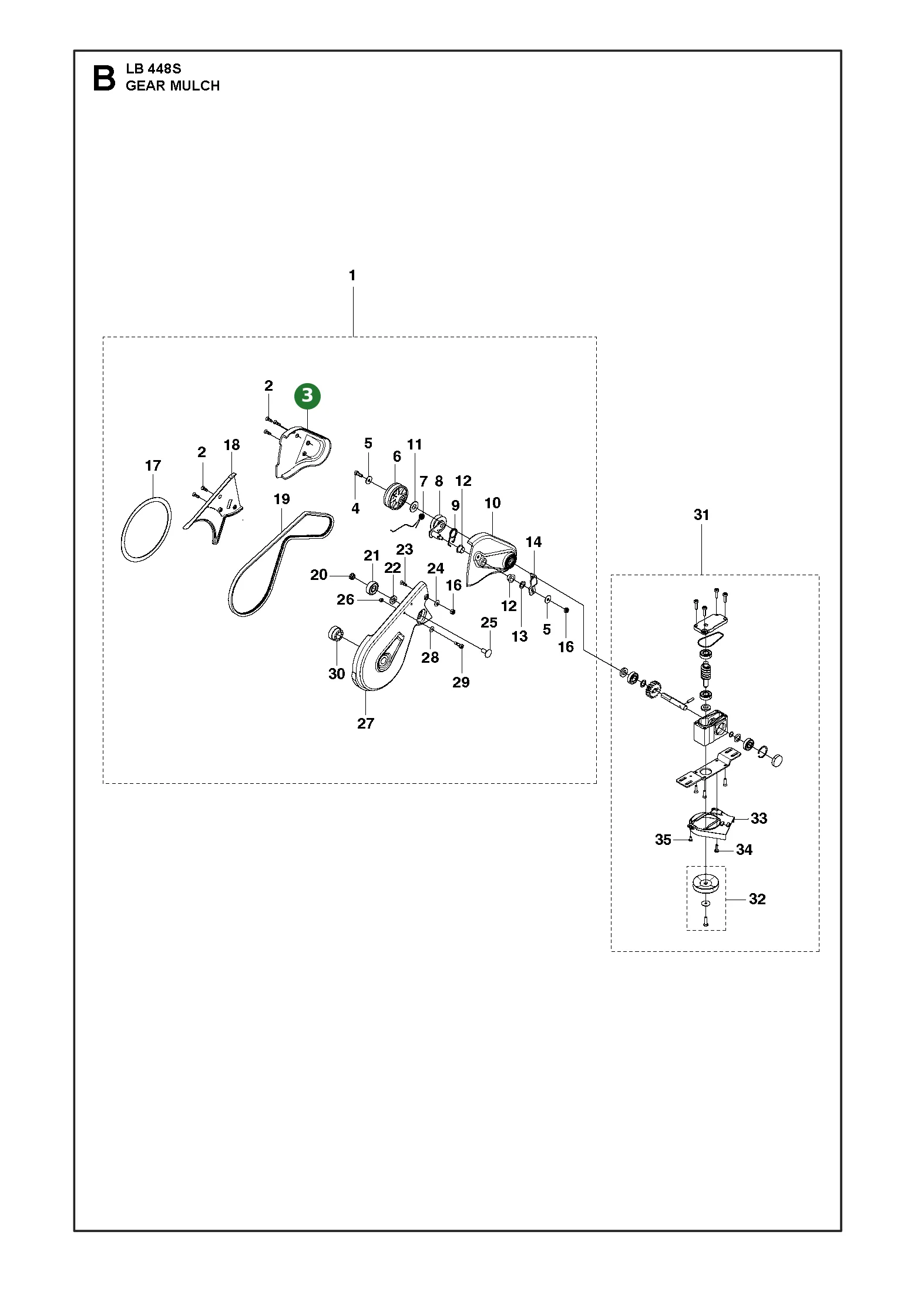

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | GETRIEBESATZ (585192602) | |||
| 5 | Schraube (578976001) | |||
| 1 | Abdeckung (578265502) | |||
| 1 | | Schraube Ihscm (504456701) | ||
| 2 | SCHEIBE (734181351) | |||
| 1 | Riemenscheibe (587235401) | |||
| 1 | Feder (502880301) | |||
| 1 | Riemenscheibe Kpl. (503323002) | |||
| 1 | Feder (503326601) | |||
| 1 | GEHÄUSE KPL (578342802) | |||
| 1 | Scheibe (504457301) | |||
| 2 | Bushing (503277101) | |||
| 1 | Scheibe (504460801) | |||
| 1 | Hebel (594700501) | |||
| 2 |  | Sicherungsmutter (732251601) | ||
| 1 | Dichtungsring (578265601) | |||
| 1 | Abdeckung (578265402) | |||
| 1 | |
Riemen (589571001) Kit: 5254799-01 (Belt with shell | ||
| 1 | Barrel Nut (503317601) | |||
| 1 |  |
Kugellager (738220119) 6201-2RS1 | ||
| 1 | Scheibe (504460601) | |||
| 1 | Schraube (725636951) | |||
| 1 | Feder (503324001) | |||
| 1 | Schraube Rsqm (727645151) | |||
| 1 |  | Sicherungsmutter (732251401) | ||
| 1 | Gehäuse (578265202) | |||
| 1 | Washer, 5x13x1 (504456001) | |||
| 1 | SCHRAUBE (504461901) | |||
| 1 | Bushing (503324401) | |||
| 1 | Schneckengetriebe Kpl. (586467101) | |||
| 1 | RIEMENSCHEIBENSATZ (585400601) |

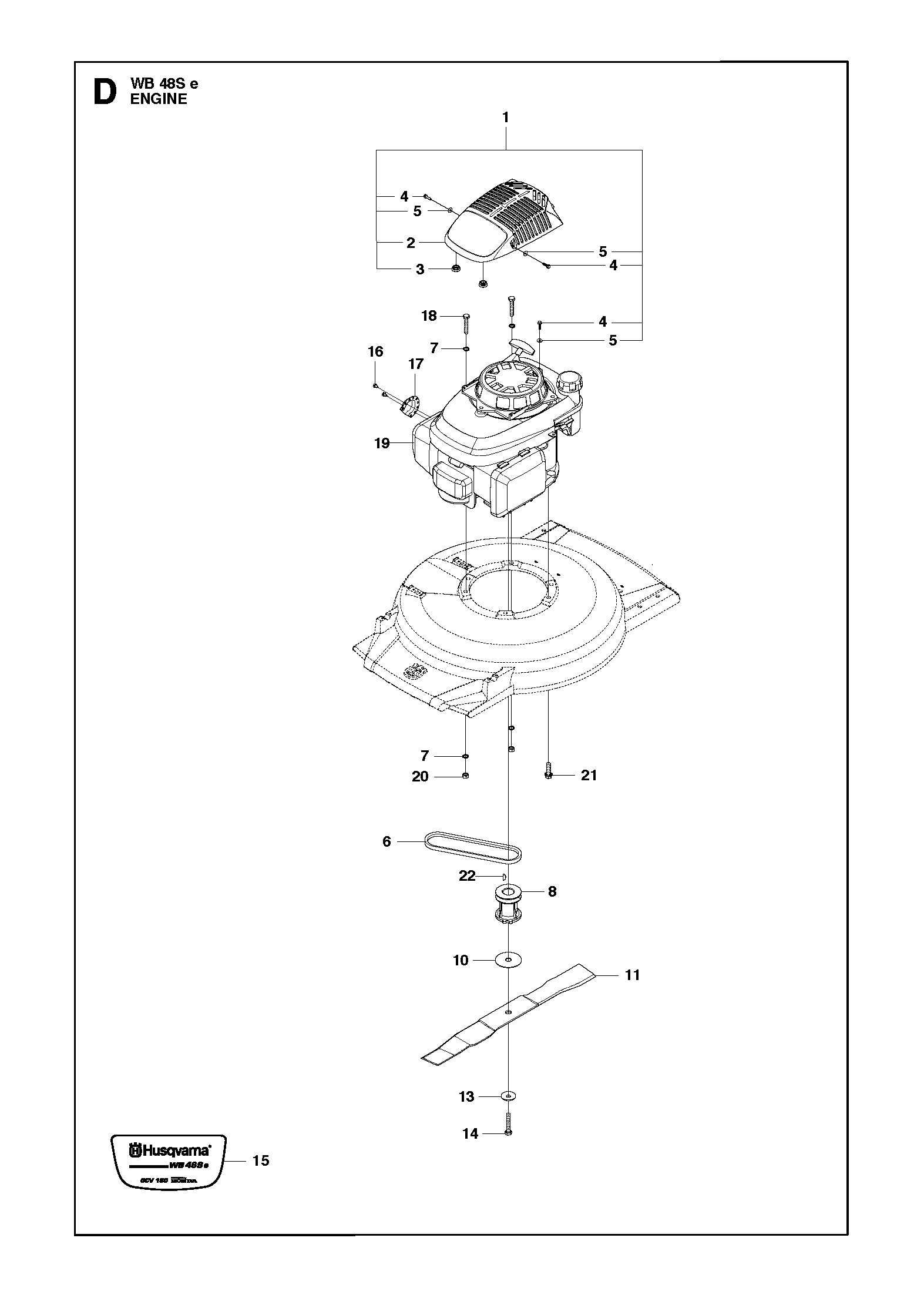

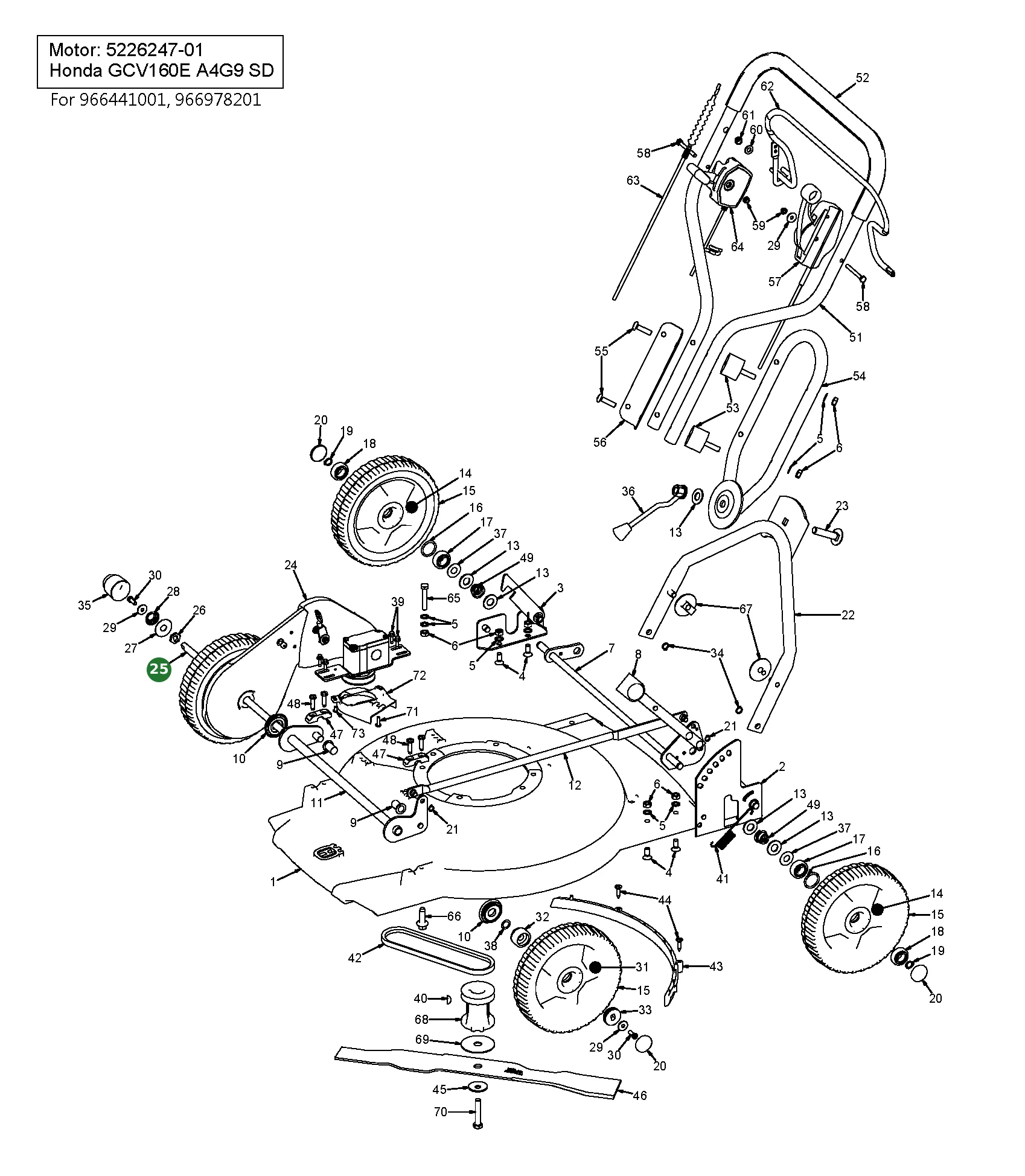

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | MOTORGEHÄUSE (581662401) | |||
| 1 | MOTORGEHÄUSE (575688001) | |||
| 2 | RUBBER CAP (538242649) | |||
| 3 | Schraube (525433101) | |||
| 3 | Scheibe (531207170) | |||
| 1 |  |
Riemen (589571101) Kit: 5254800-01 (Belt with shell | ||
| 4 | Sicherungsscheibe (735216401) | |||
| 1 |  | Messeraufnahme (588824001) | ||
| 1 |  | Scheibe (503259401) | ||
| 1 |  | Klinge (502881310) | ||
| 1 |  | Feder (503332501) | ||
| 1 |  | Schraube Ehhi (504456402) | ||
| 1 | AUFKLEBER (577670302) | |||
| 2 | SCHRAUBE (502883201) | |||
| 1 | Deflektor (502880501) | |||
| 2 |  | Schraube Ehhm (725246351) | ||
| 2 |  | Sechskantmutter (731231801) | ||
| 1 | Schraube (502882901) | |||
| 1 |
Woodruf Key (504460501) For 966978002, 96697800204 |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 0 | Getriebegehäuse Kpl. (578266604) | |||
| 5 | Schraube (578976001) | |||
| 1 | Abdeckung (578265502) | |||
| 1 | | Schraube Ihscm (504456701) | ||
| 1 | Scheibe (504459901) | |||
| 1 | Riemenscheibe (587235401) | |||
| 1 | Feder (502880301) | |||
| 1 | Riemenscheibe Kpl. (503323002) | |||
| 1 | Feder (503326601) | |||
| 1 | GEHÄUSE KPL (578342802) | |||
| 1 | Scheibe (504457301) | |||
| 2 | Bushing (503277101) | |||
| 1 | Scheibe (504460801) | |||
| 1 | Hebel (594700501) | |||
| 1 | SCHEIBE (734181351) | |||
| 2 | | Sicherungsmutter (732251601) | ||
| 1 | Dichtungsring (578265601) | |||
| 1 | Abdeckung (578265402) | |||
| 1 | |
Riemen (589571001) Kit: 5254799-01 (Belt with shell | ||
| 1 | Barrel Nut (503317601) | |||
| 1 | |
Kugellager (738220119) 6201-2RS1 | ||
| 1 | Scheibe (504460601) | |||
| 1 | Schraube (725636951) | |||
| 1 | Feder (503324001) | |||
| 1 | Schraube Rsqm (727645151) | |||
| 1 | | Sicherungsmutter (732251401) | ||
| 1 | Gehäuse (578265202) | |||
| 1 | Washer, 5x13x1 (504456001) | |||
| 1 | SCHRAUBE (504461901) | |||
| 1 | Bushing (503324401) | |||
| 1 | Schneckengetriebe Kpl. (586467101) | |||
| 1 | SICHERUNGSRING (505150201) | |||
| 1 | Kugellager (738210104) | |||
| 1 | O-RING (503330301) | |||
| 1 | Federstift (504455401) | |||
| 1 | Welle (503330201) | |||
| 1 | DICHTUNG (503330501) | |||
| 1 | Stopfen (503330401) | |||
| 1 | Riemenscheibe (503330101) | |||
| 1 | Federstift (504455501) |
