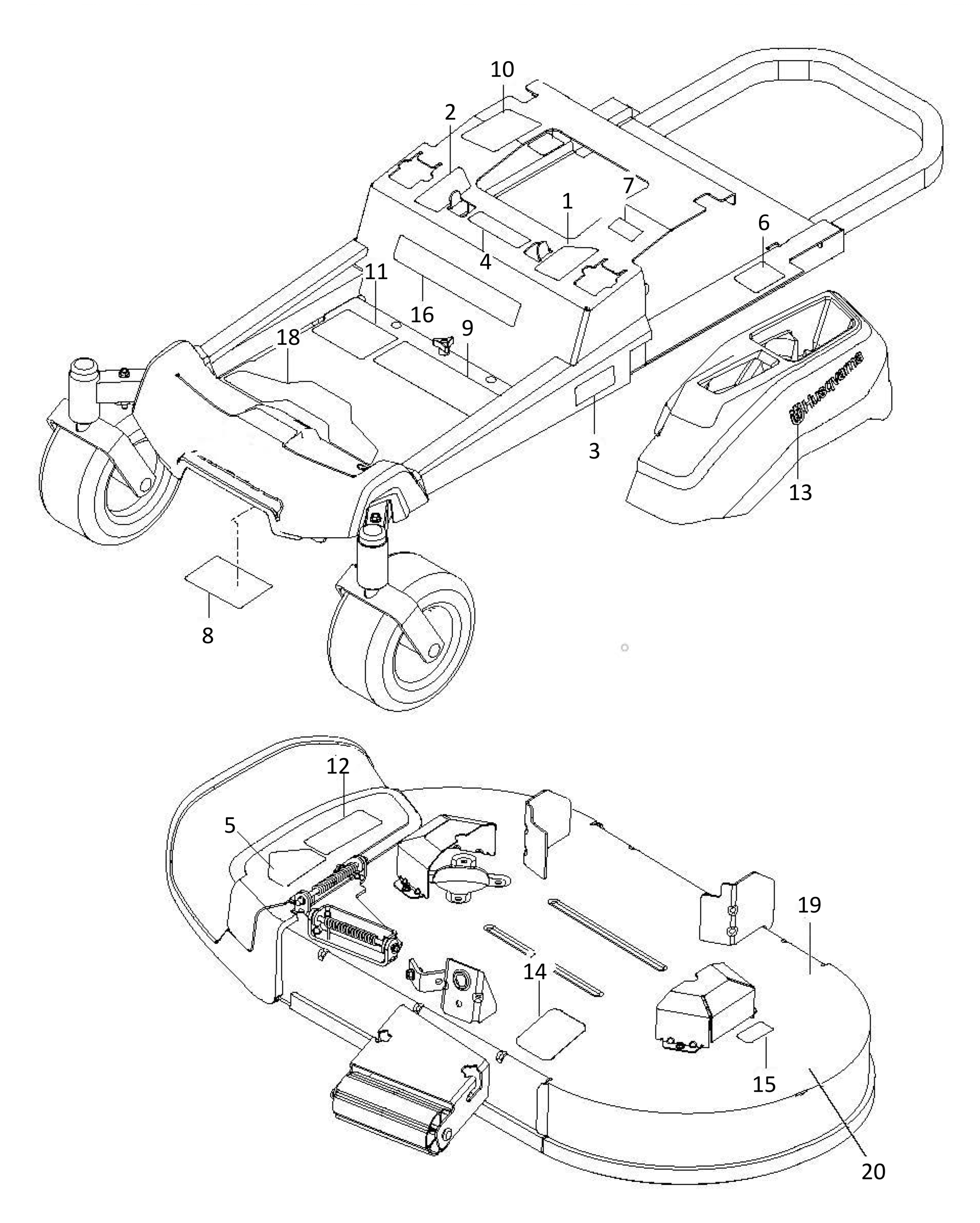

| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 | AUFKLEBER (539110522) DECAL | |||
| 1 |
Aufkleber (587595501) DECAL | |||
| 1 |
Aufkleber (587595601) DECAL | |||
| 2 |
Aufkleber (587769201) DECAL | |||
| 1 | AUFKLEBER (529527001) DECAL | |||
| 1 | AUFKLEBER (539105745) DECAL | |||
| 1 |
Aufkleber (586978801) DECAL | |||
| 1 | AUFKLEBER (539108385) DECAL | |||
| 1 | AUFKLEBER (539108386) DECAL | |||
| 1 |
Aufkleber (539109803) DECAL | |||
| 1 | AUFKLEBER (583934001) DECAL | |||
| 1 | AUFKLEBER (590485501) DECAL | |||
| 1 | AUFKLEBER (598655401) DECAL | |||
| 1 | Aufkleber (532423829) | |||
| 1 | AUFKLEBER (588035001) DECAL | |||
| 1 |
Aufkleber (590209401) DECAL | |||
| 1 |
Aufkleber (590209501) DECAL | |||
| 1 |
Aufkleber (586978801) DECAL | |||
| 2 |  |
Aufkleber (577469001) DECAL | ||
| 1 | AUFKLEBER (510240201) DECAL | |||
| 2 |
Aufkleber (589357902) DECAL | |||
| 1 | AUFKLEBER (591357301) DECAL | |||
| 1 |
Kissen (587000701) PAD | |||
| 1 | AUFKLEBER (593363001) DECAL | |||
| 1 | AUFKLEBER (532448121) DECAL | |||
| 1 |
Aufkleber (590884901) DECAL |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 |  |
Getriebe (510375601) EZT, LEFT | ||
| 1 |
Getriebe (592894101) EZT.LEFT | |||
| 1 |
Getriebe (510375602) EZT, RIGHT | |||
| 1 |
Getriebe (592894102) EZT.RIGHT | |||
| 1 |  |
Gelenk (596930401) ROD.EZT.LEFT | ||
| 1 |
Gelenk (596930701) ROD.EZT. RIGHT | |||
| 1 |  |
Riemen (539110411) BELT | ||
| 1 |
Riemen (592894201) BELT | |||
| 1 |
Stange (585474402) ROD.BYPASS.LEFT | |||
| 1 |
Stange (585474502) ROD.BYPASS.RIGHT | |||
| 2 |
Feder (586665101) SPRING.BYPASS | |||
| 2 |  |
Feder (596299801) SPRING.BRAKE ROD | ||
| 2 |
Scheibe (539120080) COG.BRAKE DISC | |||
| 2 |  |
Arm (539120079) ASSEMBLY KIT, BRAKE ARM | ||
| 1 |
Satz (575507001) ASSEMBLY KIT, HUB W/NUTS | |||
| 2 |
Getriebesatz (501403602) ASSEMBLY KIT, BLADE, PULLEY | |||
| 1 |  |
Abstandsscheibe (593852803) SPACER TUBE | ||
| 2 |  |
Stütze (580806502) SUPPORT, EZT FRONT | ||
| 2 |
Halter (580806602) MOUNT, EZT REAR BLK | |||
| 1 |  |
Bolzen (587225301) CLIP | ||
| 4 |
Bolzen (596580601) PIN.RETAINING.1-7/16 X 0.073 | |||
| 1 |  |
Bolzen (587115301) PIN.CLEVIS.3/16X.475 | ||
| 4 |
Bolzen (595316601) BOLT.HHD FLNG 5/16-18X2.75 GR5 | |||
| 4 |
Bolzen (595316601) BOLT.HHD FLNG 5/16-18X2.75 GR5 | |||
| 2 | SCHRAUBE (574233802) HHFS.5/16 X 2.25 GD5.CLR.ZINC | |||
| 4 | BOLZEN (596581901) BOLT.HEXAGON.3/8-16 X 2-1/2 | |||
| 6 |  |
Mutter (594944401) NUT.HEX.FLNG.5/16-18.NYLOC.CLR | ||
| 2 |  |
Mutter (582478602) NUT.HEX.1/4-20 ST ZPB-582478602 | ||
| 4 |  |
Scheibe (596204101) WASHER | ||
| 4 |  |
Scheibe (596238701) WASHER.SPRING.LOCK.381IDX.680 | ||
| 4 |  |
Scheibe (596565301) WASHER;3/8X0.08IN.ST.CLR.ZINC | ||
| 4 |  |
Scheibe (596582301) WASHER 0.28 X 0.63 CLR.ZN |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|

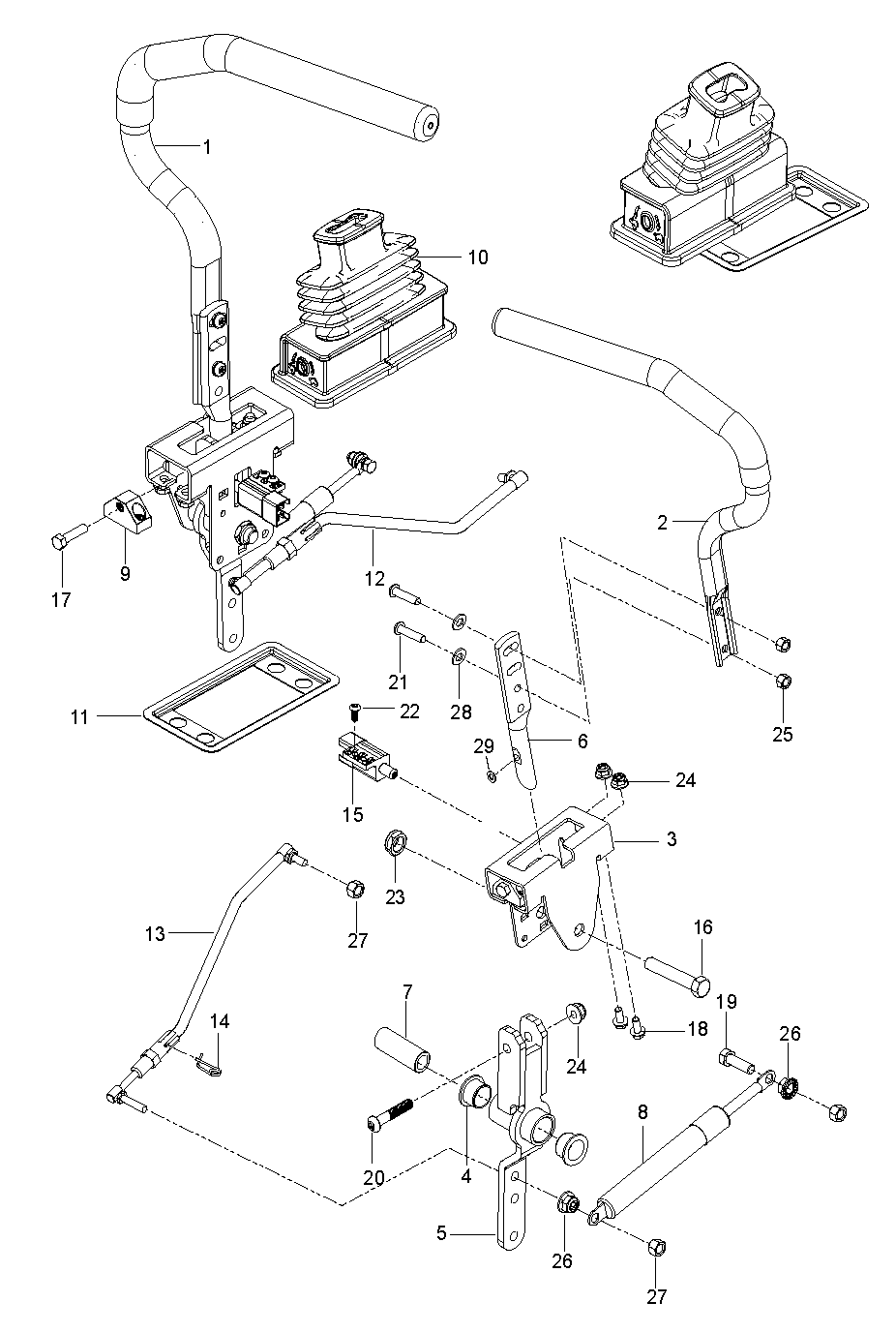

| 1 |  |
Rohr (598851703) TUBE | ||
| 1 |  |
Rohr (598851704) TUBE | ||
| 2 |
Halter (585124705) BRACKET | |||
| 4 |  |
Lager (539131518) BEARING | ||
| 2 |  |
Hebel (576140301) LEVER | ||
| 2 |  |
Hebel (587601704) LEVER | ||
| 2 |
Abstandsscheibe (584927201) SPACER | |||
| 2 | Service Kit (548932401) GAS SPRING | |||
| 2 |
Block (581437502) BLOCK | |||
| 2 | HALTER (585813601) BOOT | |||
| 2 |
Befestigungslasche (585488202) FLANGE | |||
| 2 |
Stange (588604902) ROD | |||
| 2 |  |
Stange (588605002) ROD | ||
| 2 | KLAMMER (537602401) R CLIP | |||
| 2 |  |
Schalter (587601501) SWITCH | ||
| 2 |
Bolzen (596434301) BOLT | |||
| 2 |
Bolzen (585986101) BOLT | |||
| 8 |  |
Bolzen (592858702) BOLT | ||
| 2 |  |
Bolzen (596580801) BOLT | ||
| 2 |  |
Schraube (587885301) SCREW | ||
| 4 |
Bolzen (525544002) BOLT | |||
| 2 | SCHRAUBE (574822701) SCREW | |||
| 2 |
Mutter (539108010) NUT | |||
| 10 | |
Mutter (594944401) NUT | ||
| 4 |  |
Mutter (596583702) NUT | ||
| 4 | Sicherungsmutter (596039201) LOCK NUT | |||
| 4 | |
Mutter (596583702) NUT | ||
| 4 | |
Scheibe (596204101) WASHER | ||
| 2 | SCHEIBE (587614201) WASHER |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|

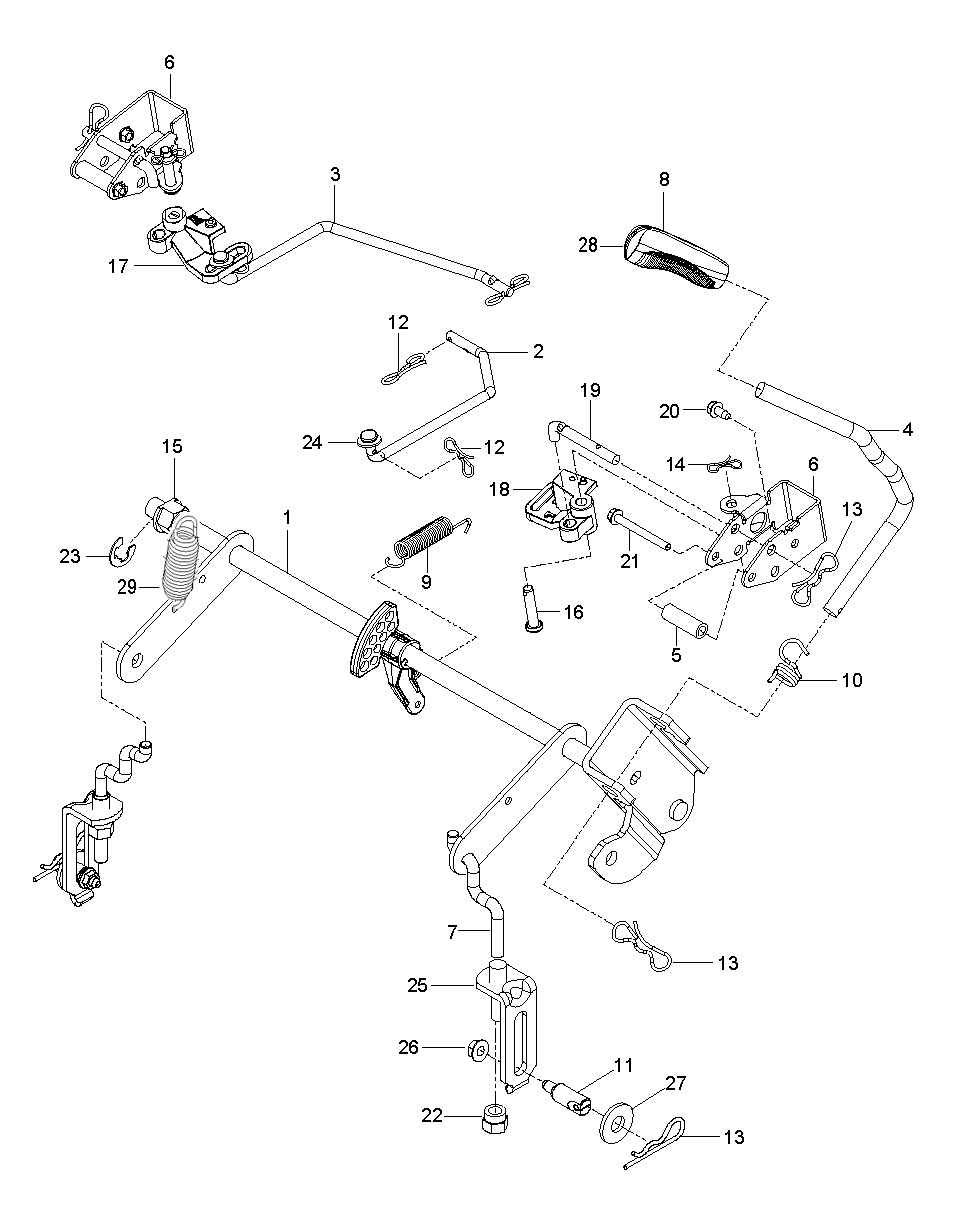

| 1 |
Kurbelwelle (586429702) SHAFT ASSY | |||
| 1 |  |
Kurbelwelle (587623101) SHAFT ASSY. KIT | ||
| 1 |  |
Gelenk (586457101) LINK | ||
| 2 |  |
Gelenk (586457201) LINK | ||
| 1 | Einstellhebel (586428702) | |||
| 1 |
Hubhebel Kpl. (587622901) Includes key 4, 8, 10 | |||
| 2 |
Abstandsscheibe (580486102) SPACER | |||
| 2 | Gelenk (587623001) LINK | |||
| 1 |  |
Griff (532411555) GRIP | ||
| 1 |  |
Feder (547190203) SPRING | ||
| 1 |  |
Feder (532196314) SPRING | ||
| 1 |  |
Gewindestift (593824001) STUD | ||
| 2 |  |
Bolzen (532194208) SPRING | ||
| 2 | |
Bolzen (587225301) SPRING | ||
| 2 |  |
Bushing (510184901) BUSHING | ||
| 2 |
Bolzen (585701401) PIN | |||
| 2 |  |
Winkelhebel (586457501) BELLCRANK | ||
| 1 |  |
Winkelhebel (586457401) BELLCRANK | ||
| 1 |  |
Stange (585682001) ROD | ||
| 2 |  |
Schraube (532137729) SCREW | ||
| 2 |
Schraube (586561301) SCREW | |||
| 1 |  |
Mutter (589464902) NUT | ||
| 1 |  |
Sprengring (812000002) RETAINER RING | ||
| 1 | |
Scheibe (596565301) WASHER | ||
| 2 | Gelenk (587623001) LINK ASSY | |||
| 2 |  |
Sicherungsmutter (596135701) NUT | ||
| 2 | SCHEIBE (596320001) WASHER | |||
| 4 |  |
Feder (532194209) SPRING | ||
| 1 |  |
Feder (596482001) SPRING |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|

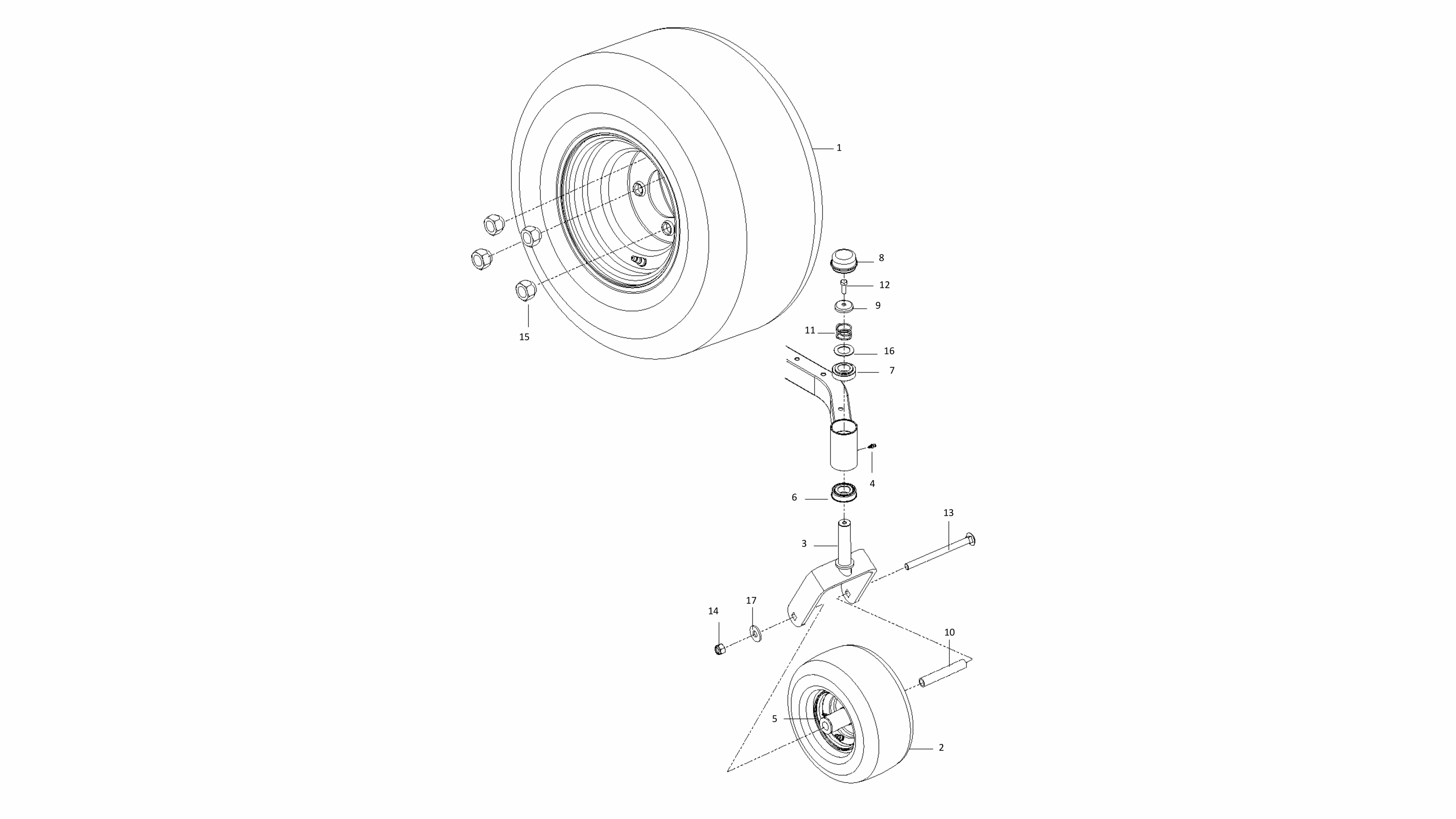

| 2 |
Laufrad (538672601) Fits 96766570200, 96766570400, 96763840101, 96766570300 | |||
| 2 |
Rad Kpl. (581197301) Fits 96760280200, 96704530100 | |||
| 2 |
Rad Kpl. (576588602) Fits all except 96760280200 | |||
| 2 |  |
Laufrad (590486802) Fits 96760280200 | ||
| 2 |
Magnetring (510186505) Fits 96760280200 | |||
| 2 |
Magnetring (586650309) Fits all except 96760280200 | |||
| 1 | Ventil (596623501) Fits all except 96704530100, 96760280200 | |||
| 2 | NIPPEL (539115638) Fits 96704530100, 96760280200 | |||
| 2 |  |
Nippel (539103300) NIPPLE | ||
| 2 |  |
Lager (539112660) BEARING | ||
| 2 |  |
Klingenbuchse (539117901) BLADE BUSHING | ||
| 2 |  |
Deckel (595281301) CAP | ||
| 2 |  |
Stopfen (596301001) PLUG | ||
| 2 |  |
Abstandsscheibe (539105543) Fits 96760280200 | ||
| 2 |  |
Abstandsscheibe (585995401) Fits all except 9660280200 | ||
| 2 |  |
Feder (596388901) SPRING | ||
| 2 |  |
Screw (874950516) SCREW | ||
| 2 |  |
Schraube (576601503) Fits all except 96760280200 | ||
| 2 |  |
Bolzen (596585401) Fits 96760280200 | ||
| 2 | MUTTER (521991103) NUT | |||
| 8 | Mutter (587653903) NUT | |||
| 1 |  |
Scheibe (596319801) WASHER |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|

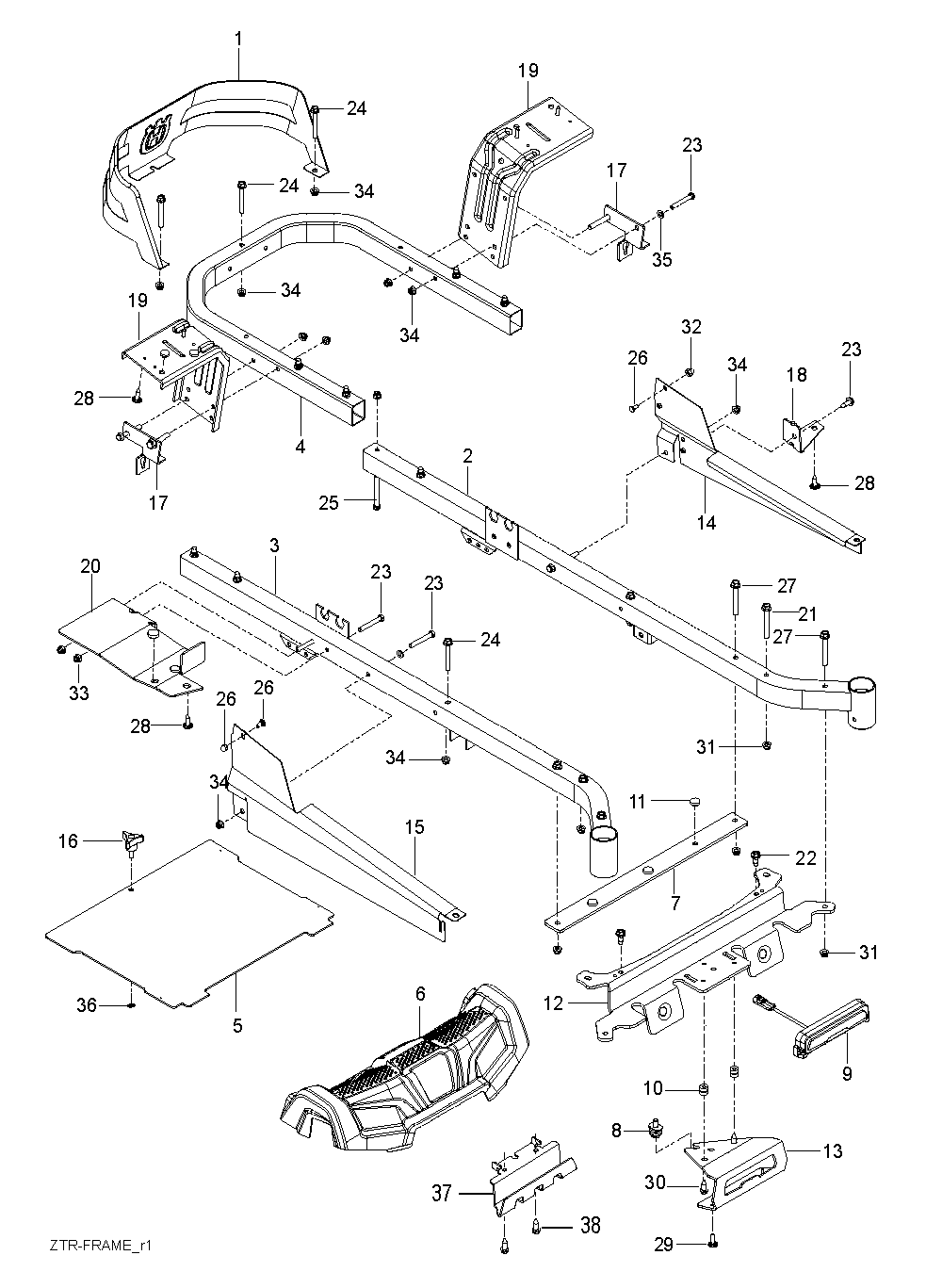

| 1 |
Schutz (585039802) GUARD | |||
| 1 |
Rahmenrohr (589283402) FRAME TUBE | |||
| 1 |
Rahmenrohr (589283302) FRAME TUBE | |||
| 1 |
Rohr (584991002) TUBE | |||
| 1 | PLATTEN-KIT (598712401) PLATE KIT | |||
| 1 |  |
Abdeckung (586703801) FRONT COVER | ||
| 1 |
Stütze (529365102) For 96766570400, 96763840101, 96766570300 | |||
| 1 | STÜTZE (596522304) For 96760280200, 96704530100 | |||
| 1 |
Stossfänger (585989301) BUMPER | |||
| 1 |
Querträger (585523104) CROSS MEMBER | |||
| 1 |
Gleitplatte (585523204) SUPPORT RH. For 96704530100, 96760280200 | |||
| 1 |
Stütze (593118304) SUPPORT RH. For 96763840101, 96766570300, 96766570400 | |||
| 7 |
Abdeckung (585331602) COVER | |||
| 1 |
Abdeckung (585331502) COVER | |||
| 1 |  |
Knopf (597783101) KNOB | ||
| 1 |
Halter (585474302) BRACKET | |||
| 1 |
Stütze (585523604) SUPPORT. LH. For 96704530100, 96760280200 | |||
| 1 | STÜTZE (593682604) SUPPORT. LH. For 96763840101, 96766570300. 96766570400 | |||
| 1 |
Halter (580501302) BRACKET | |||
| 1 |
Stütze (593118304) SUPPORT. RH. For 96704530100, 96760280200, 96704530100 | |||
| 1 |
Stütze (593118304) SUPPORT .RH. For 96766570400, 96766570300, 96763840101 | |||
| 1 |
Bolzen (817000510) BOLT | |||
| 6 |  |
Schraube (596321701) SCREW | ||
| 1 | SCHRAUBE (574233802) BOLT | |||
| 1 |
Bolzen (596218601) For 96704530100, 96760280200 | |||
| 2 |
Bolzen (595316601) For 96763840101, 96766570300, 96766570400 | |||
| 2 | BOLZEN (596564405) BOLT | |||
| 7 |
Bolzen (585940001) BOLT | |||
| 8 |
Bolzen (586654302) BOLT | |||
| 2 |
Bolzen (586881101) BOLT | |||
| 4 | |
Mutter (594944401) NUT | ||
| 6 |  |
Mutter (521996502) NUT | ||
| 2 | MUTTER (585938101) NUT | |||
| 2 | |
Mutter (594944401) NUT | ||
| 4 |  |
Scheibe (734116301) WASHER | ||
| 1 | Mutter (583400601) WASHER |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|

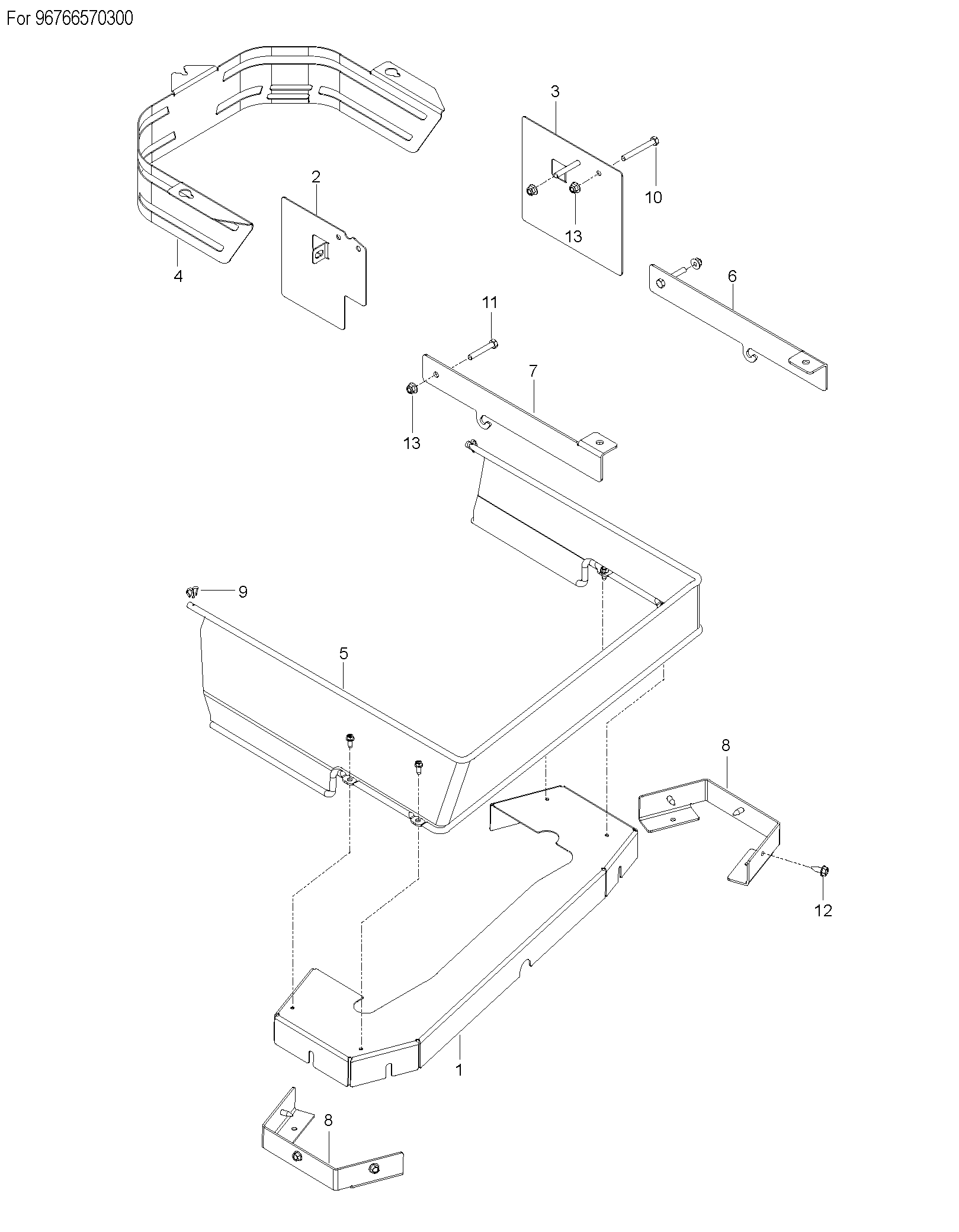

| 1 |
Schutz (591192102) GUARD | |||
| 1 |
Schutz (591192402) GUARD | |||
| 2 |
Schutz (591192302) GUARD | |||
| 1 |
Schutz (591192502) GUARD | |||
| 1 |
Schutz (591193201) GUARD | |||
| 1 |
Halter (591192602) BRACKET | |||
| 1 |
Halter (591192702) BRACKET | |||
| 2 |
Halter (591192202) BRACKET | |||
| 2 |  |
Halter (596029401) PIN | ||
| 2 | SCHRAUBE (574233802) BOLT | |||
| 2 |
Schraube (596320801) SCREW | |||
| 6 |  |
Bolzen (532428867) SCREW | ||
| 4 | |
Mutter (594944401) NUT |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 |  |
Abdeckung (598602602) CONSOLE ASSY.RH | ||
| 1 |  |
Abdeckung (586621202) CONSOLE ASSY.LH | ||
| 1 | KRAFTSTOFFTANK KPL (599306301) FUEL TANK ASSY | |||
| 1 | DECKEL (529989701) CAP | |||
| 1 |  |
Tankdeckel Kpl. (585124801) FUEL CAP ASSY | ||
| 1 | KABEL (585974902) THROTTLE CABLE | |||
| 1 |  |
Drosselklappe (597873201) THROTTLE CABLE | ||
| 1 | CHOKEHEBEL KPL (586881503) CHOKE CONTROL ASSY | |||
| 1 |  |
Schalter (532175566) IGNITION SWITCH | ||
| 1 |  |
Schalter (582107601) SWITCH | ||
| 2 | |
Schalter (587601501) SWITCH | ||
| 1 | Knopf (539133049) KNOB | |||
| 1 |
Bedienungseinheit (585522701) CONTROL PANEL | |||
| 1 | KABEL (585974906) CONTROL PANEL | |||
| 1 |  |
Batterie (547853701) BATTERY | ||
| 1 | HALTER (593634404) BRACKET | |||
| 1 |
Kiste (582609602) BOX | |||
| 3 |
Abdeckung (532154336) COVER | |||
| 1 | DÄMMSTOFF (539102759) INSULATOR | |||
| 1 |  |
Tankentlüftung (576618101) TANK VENT | ||
| 1 | Ventil (539916325) VALVE | |||
| 1 | KRAFTSTOFFSCHLAUCH (586123904) FUEL HOSE | |||
| 1 |
Kraftstoffschlauch (586123906) FUEL HOSE | |||
| 1 |  |
Elektromagnet (582042802) SOLENOID | ||
| 1 |
Tragegurt (587198601) HARNESS | |||
| 1 | SCHLAUCH (587044518) HOSE | |||
| 1 |
Schlauch (587044550) HOSE | |||
| 1 |
Schlauch (587044810) HOSE | |||
| 1 | SCHLAUCH (587044523) HOSE | |||
| 1 | SCHLAUCH (587044803) HOSE | |||
| 1 |
Schlauch (587044818) HOSE | |||
| 4 |  |
Schlauchschelle (532123487) HOSE CLAMP | ||
| 1 |  |
Bushing (532003645) BUSHING | ||
| 1 |  |
Dichtscheibe (584648201) GROMMET | ||
| 1 |  |
Nippel (532139277) NIPPLE | ||
| 1 |  |
Stundenzähler (594919102) HOUR METER | ||
| 1 |  |
Taste (532411935) KEY | ||
| 1 |
Tragegurt (586108201) HARNESS | |||
| 2 |  |
Haken (588839401) HOOK | ||
| 2 |  |
Screw (545227101) SCREW | ||
| 1 | SCHRAUBE (596789701) SCREW | |||
| 1 |
Screw (532141841) SCREW | |||
| 2 | SCHRAUBE (574822701) SCREW | |||
| 2 |
Bolzen (595316801) BOLT | |||
| 2 |  |
Bolzen (595901601) BOLT | ||
| 2 |  |
Schraube (596437001) SCREW | ||
| 2 | |
Mutter (594944401) NUT | ||
| 2 | |
Mutter (521996502) NUT | ||
| 5 | |
Mutter (582478602) NUT | ||
| 1 |
Tragegurt (586337301) HARNESS | |||
| 1 |  |
Relay (532109748) RELAY | ||
| 1 | SERV.VTG (502800015) TIE WRAP |
