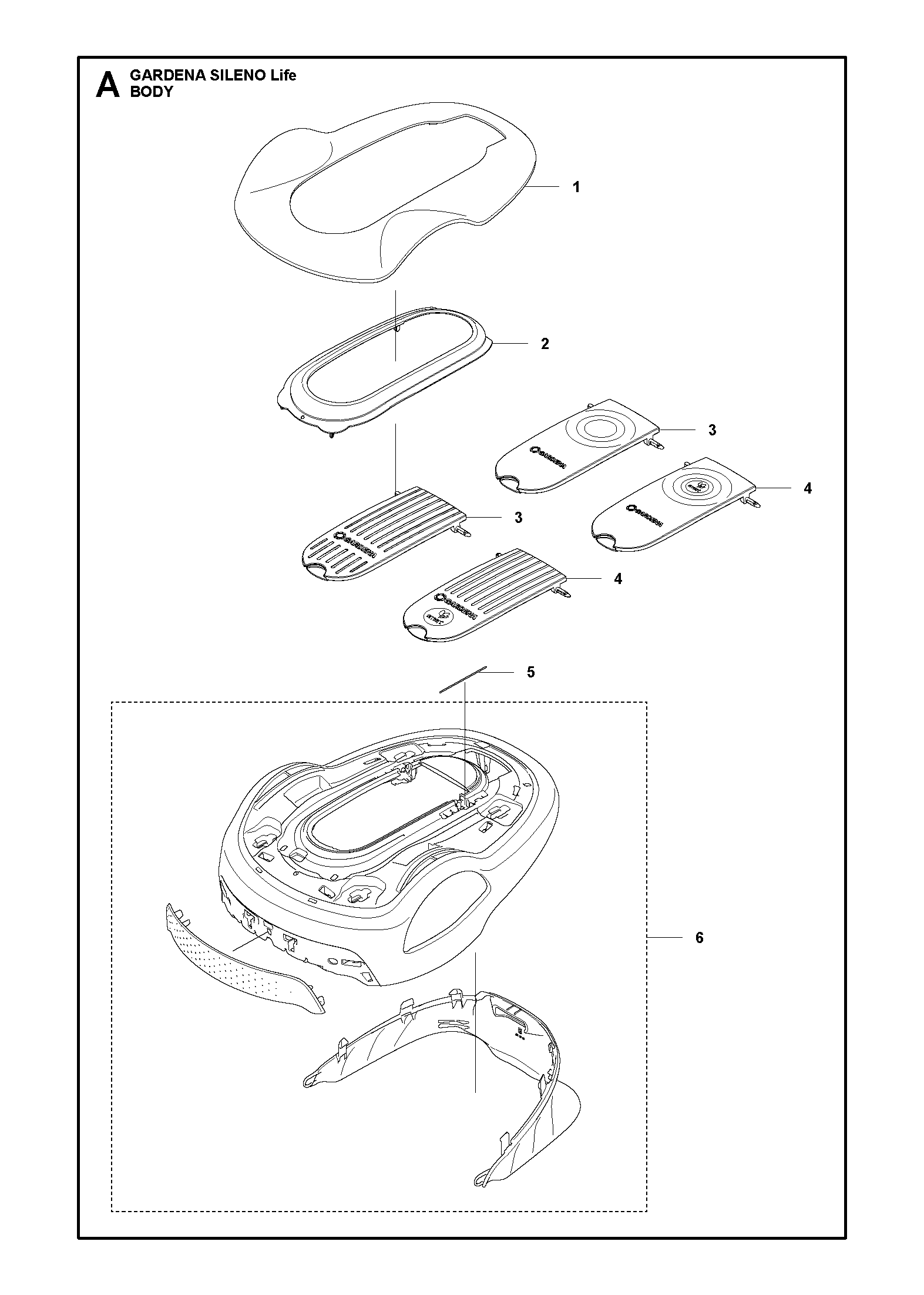

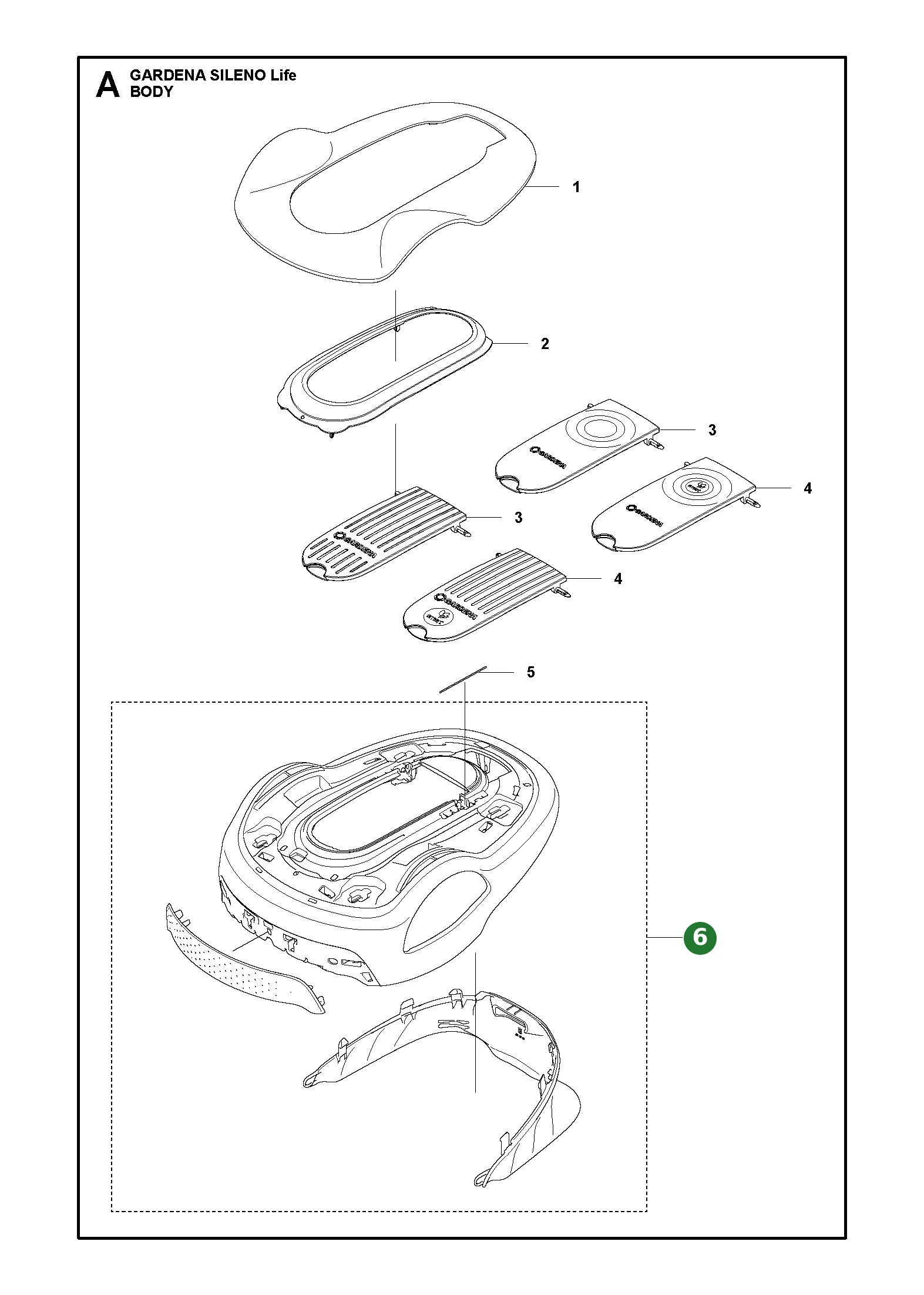

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Abdeckung (591362601) Top | |||
| 1 | Rahmen (591362802) | |||
| 1 |
Luke (531177802) non-SMART, From S/N 2146XXXXX | |||
| 1 |
Luke (582844201) non-SMART, Up to S/N 213301064 | |||
| 1 |
Luke (593348601) SMART, Up to S/N 213301064 | |||
| 1 |
Luke (531177803) SMART, From S/N 2146XXXXX | |||
| 2 |  | Feder (588470201) | ||
| 1 |
Gehäuse (596354102) From S/N 2146XXXXX | |||
| 1 |
Gehäuse (596354201) Up to S/N 213301064 |

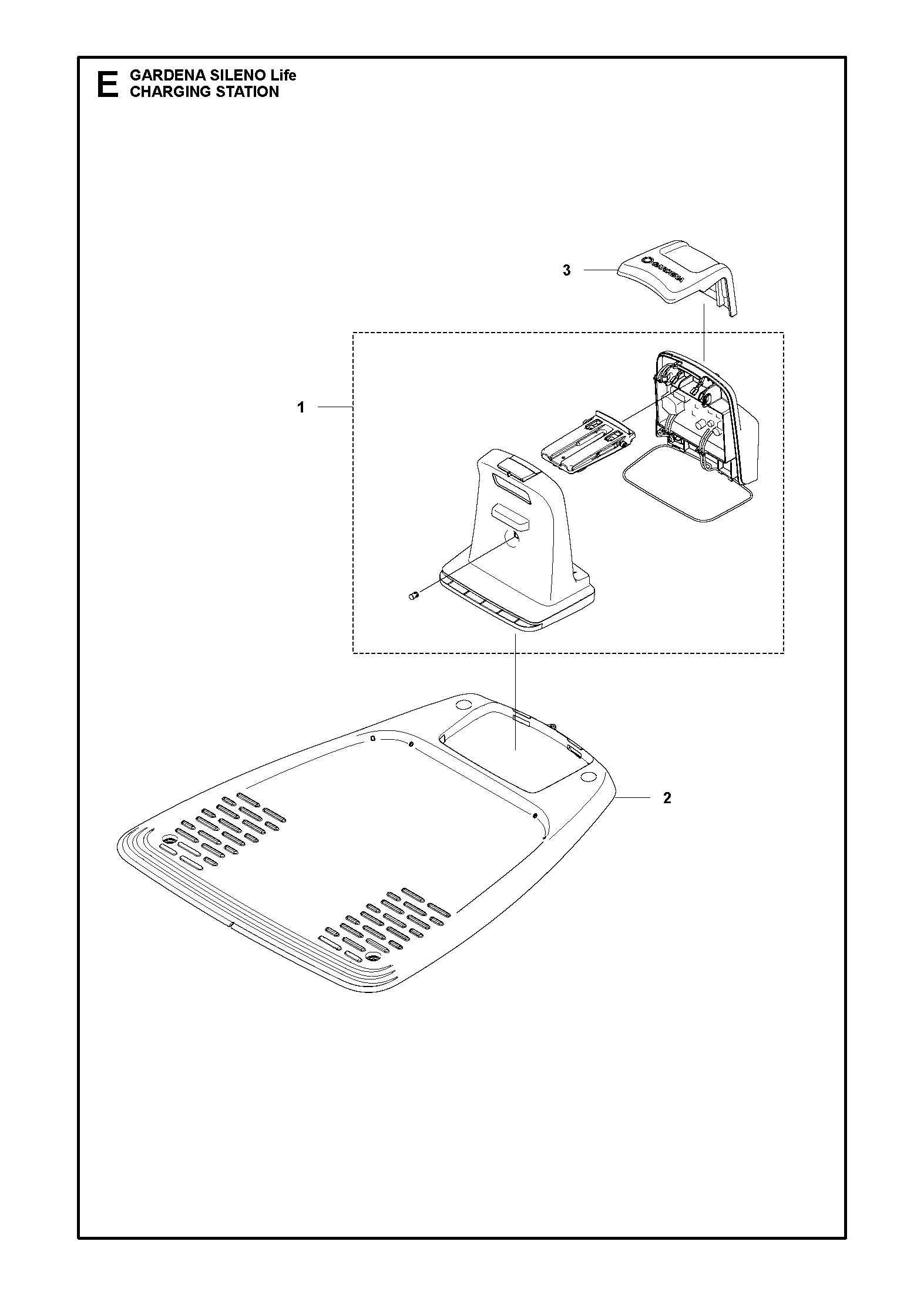

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |  | Ladeturm (547459001) | ||
| 1 |  | Platte (582784301) | ||
| 1 |  | Deckel (593307201) |

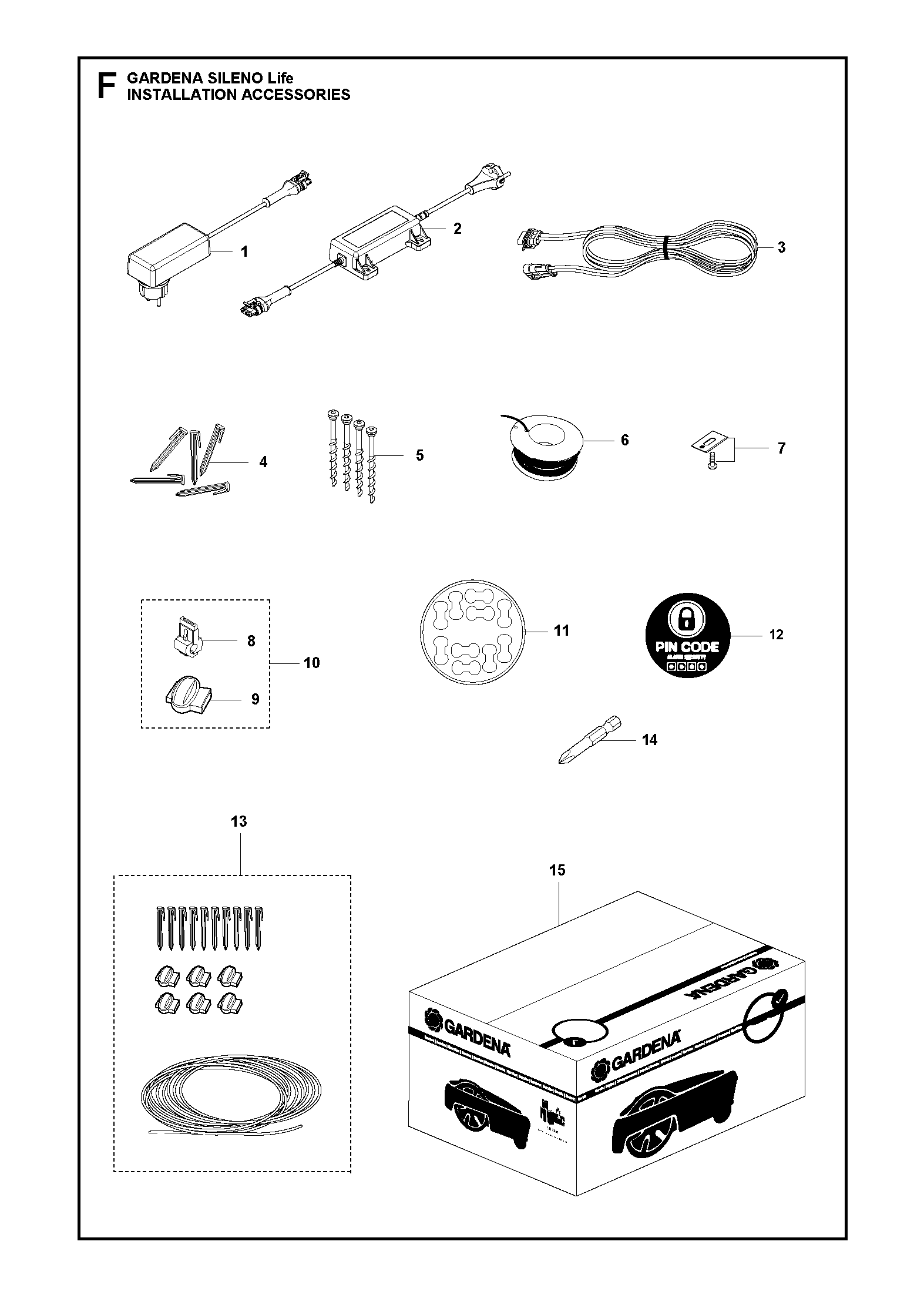

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |  |
Antriebseinheit (599677301) EU | ||
| 1 |  |
Antriebseinheit (529532602) UK/IE | ||
| 1 |  |
Antriebseinheit (529532603) CH | ||
| 1 |  |

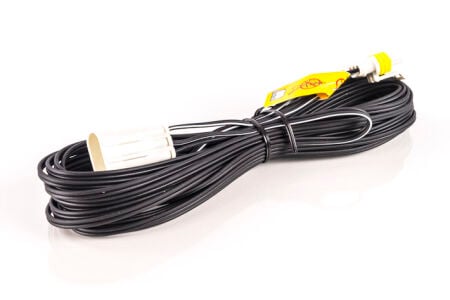

Kabel Kpl. (579825102) Low Voltage Cable 10 m | ||
| 1 |  |
Kabel Kpl. (579825101) Low Voltage Cable 20 m | ||
| 1 |  |
Kabel Kpl. (579825103) Low Voltage Cable 3 m | ||
| 1 |  |
Kabel Kpl. (579825104) Low Voltage Cable 5 m | ||
| 1 | HAKEN (580489401) 4090-00.701.00, Staples (100 pcs | |||
| 1 |  | Schraube (597435801) | ||
| 1 | DRAHT (580489201) 4088-00.701.00, Loop Wire 150 m | |||
| 1 | DRAHT (590071901) 4058-00.701.00, Loop Wire 50 m | |||
| 1 | KLINGE (580489101) 4087-00.701.00, Blade 9 pcs | |||
| 1 | KONTAKTSTÜCK (580489301) 4089-00.701.00, 6 Couplers + 3 Connectors | |||
| 1 |  |
Plakette (586277902) Sticker, Cable Markers (10 pcs | ||
| 1 | Etikett (502405301) | |||
| 1 | REPARATURSATZ (590072001) 4059-00.701.00, Boundary Wire Repair Kit | |||
| 1 | KARTON (595963401) Gardena Service Carton |

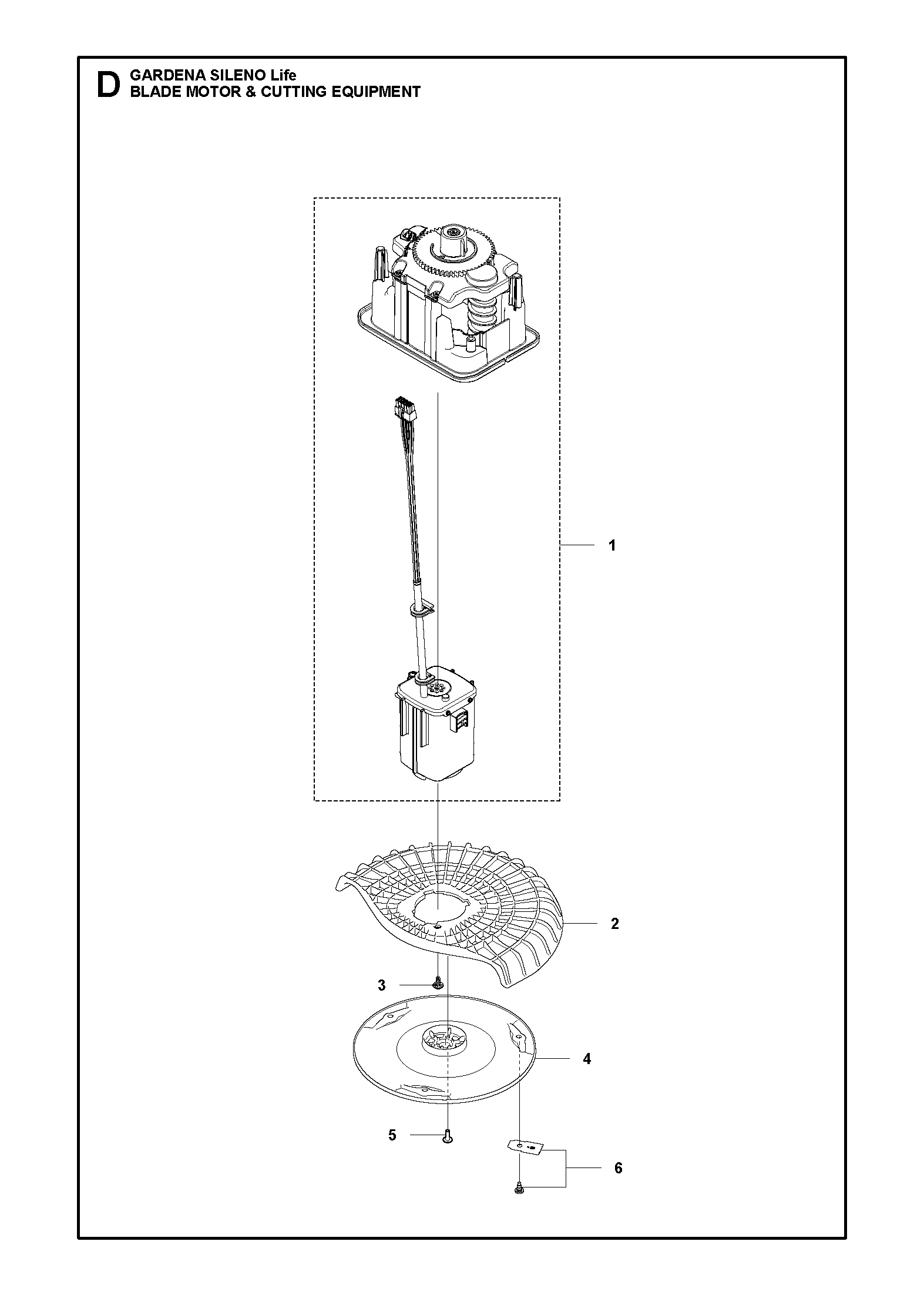

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |  | Schneidmodul (593821401) | ||
| 1 | Schutz (590939801) | |||
| 1 |  | Schraube Itxpant (574450101) | ||
| 1 |  | Mähscheibe (593589301) | ||
| 3 |  | Schraube (590508701) | ||
| 1 | KLINGE (580489101) 4087-00.701.00 |
| Nr. | Menge | Artikel | ||
|---|---|---|---|---|

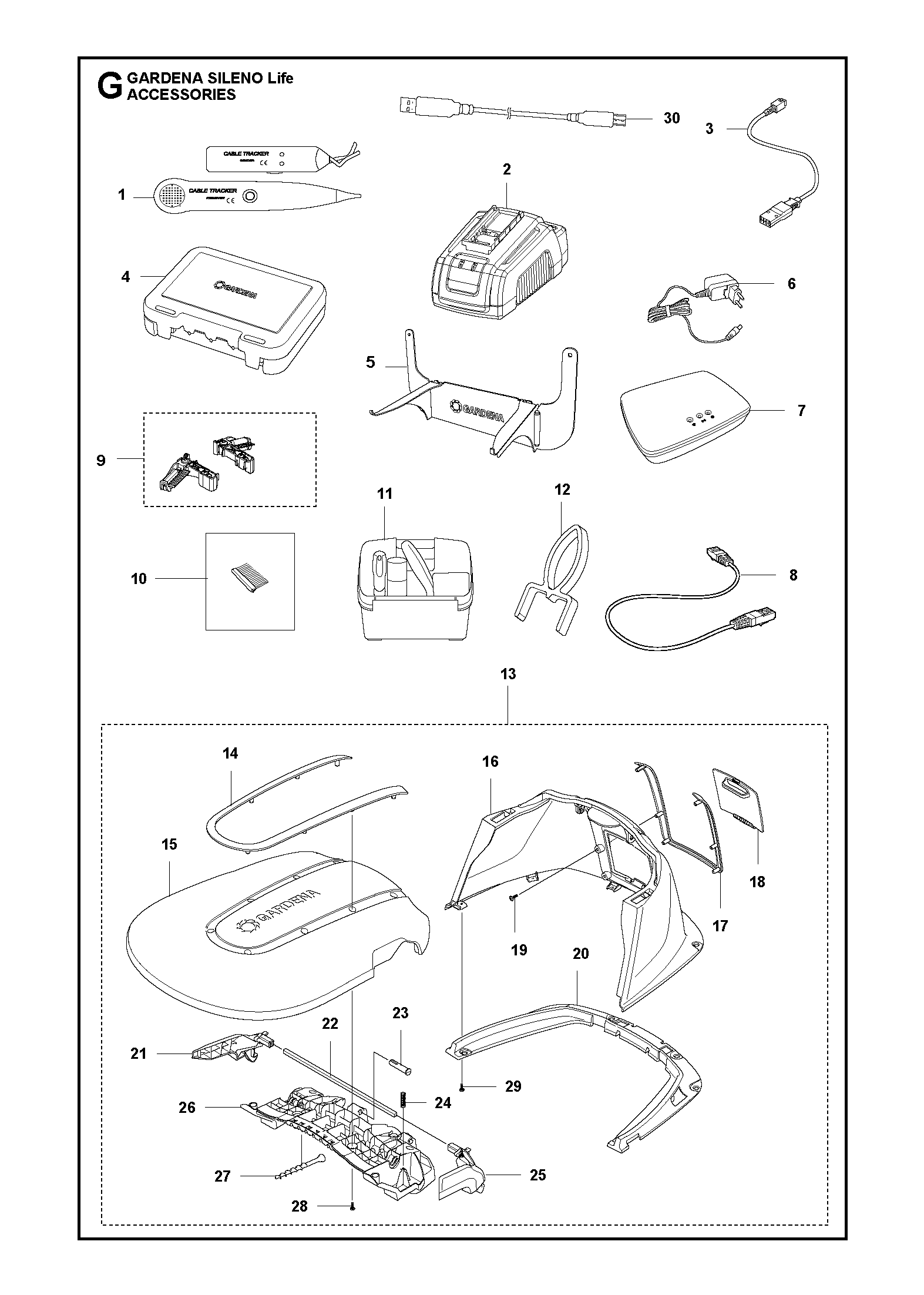

| 1 | ANTRIEBSEINHEIT (501119001) 19000-00.600.36, for Gateway 19000 | |||
| 1 | ADAPTER (596505401) 19000-00.600.37, for Gateway 19005 | |||
| 1 | AGGREGAT (596505501) 19005-00.600.00 | |||
| 1 | DRAHT (529731801) 19000-00.600.52 | |||
| 1 |
Bürstensatz (593373701) 4 pcs | |||
| 1 |  | Gabel (598764201) | ||
| 1 | DECKEL (596234201) | |||
| 1 | BASIS (596233701) | |||
| 1 | EINSATZ (596233901) | |||
| 1 | LUKE (596234001) | |||
| 6 |  | Schraube (575543314) | ||
| 1 | STÜTZE (596234101) | |||
| 1 | EINSTELLHEBEL (596234601) | |||
| 1 | STANGE (596234801) | |||
| 2 |  | Scharnierstift (585341501) | ||
| 1 |  | Feder (580511401) | ||
| 1 | EINSTELLHEBEL (596234701) | |||
| 1 | BALKEN (596234501) | |||
| 1 | |
Schraube (597435801) Anchor Screw (6 pcs | ||
| 8 | | Schraube (575543314) | ||
| 1 |  | Kabel (577518102) | ||
| 1 | AUFKLEBER KIT (531244501) 15101-00.900.01, Decal Kit Ladybug, not shown in image | |||
| 1 | AUFKLEBER KIT (531244601) 15101-00.900.02, Decal Kit Rainbowfish, not shown in image | |||
| 1 | AUFKLEBER KIT (531244701) 15101-00.900.03, Decal Kit Hawaii, not shown in image | |||
| 1 | AUFKLEBER KIT (531244801) 15101-00.900.04, Decal Kit Zebra, not shown in image | |||
| 1 | AUFKLEBER KIT (531244901) 15101-00.900.05, Decal Kit Plant, not shown in image |
