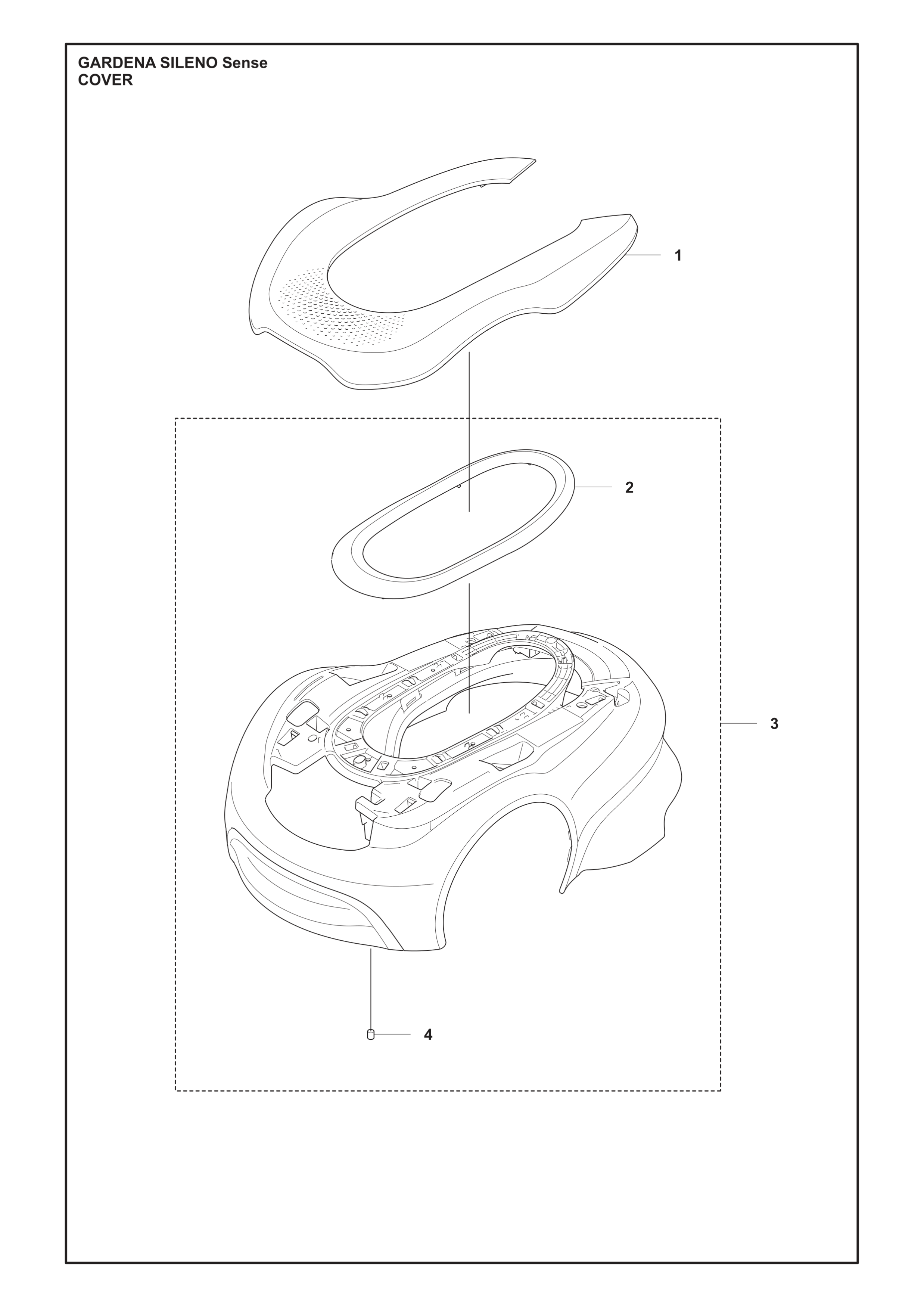

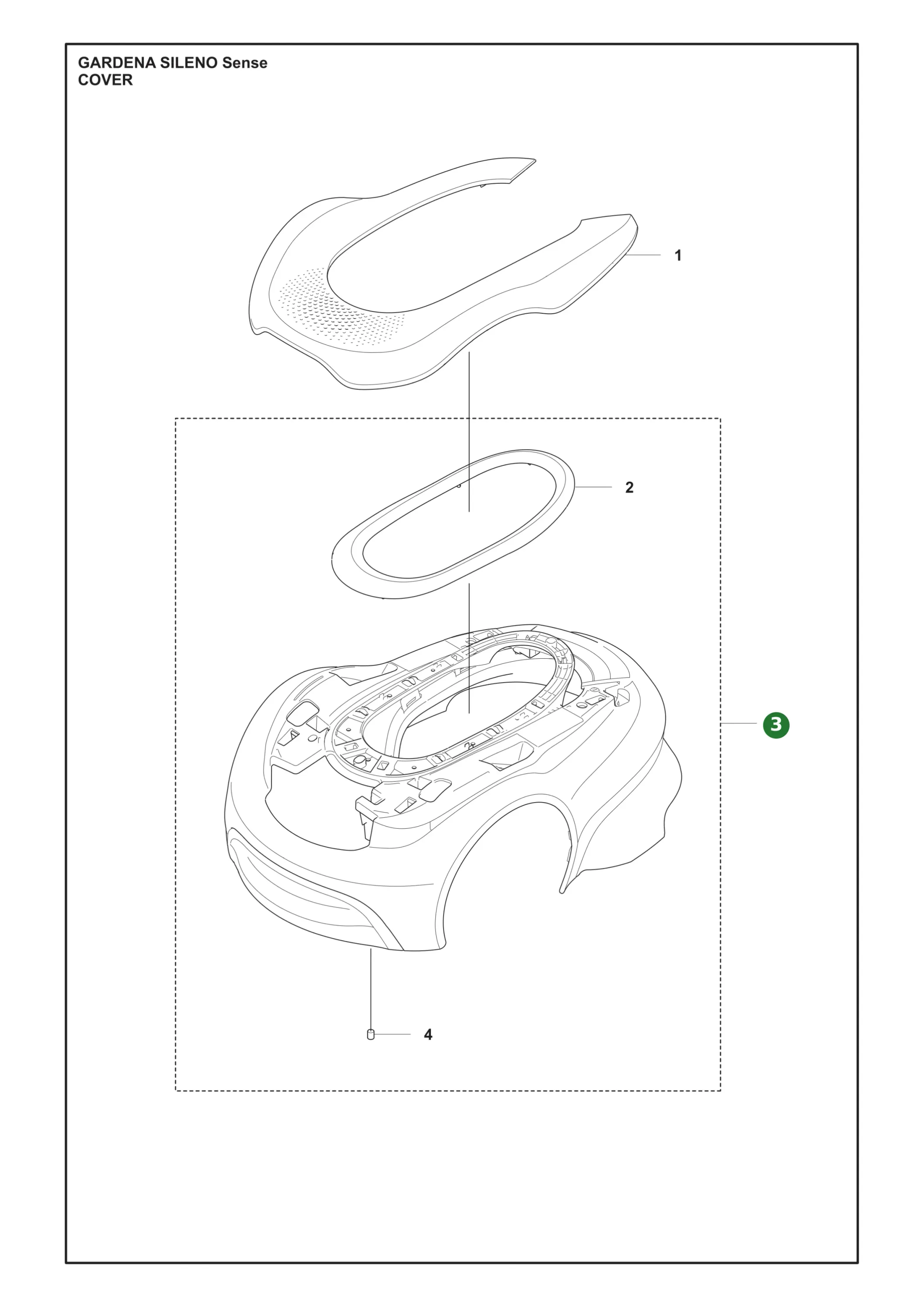

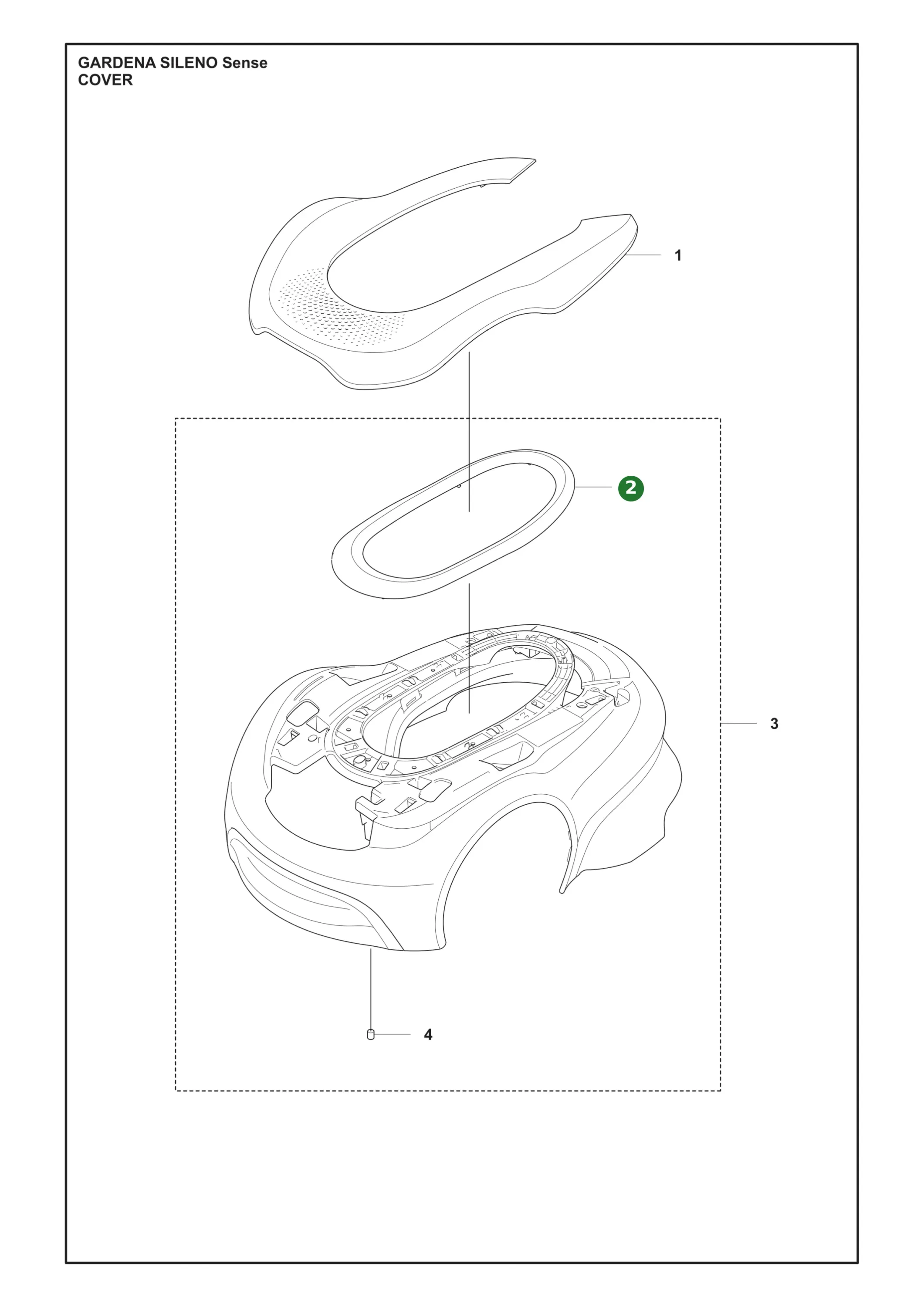

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 | Rahmen (548531101) | |||
| 1 |
Abdeckung (548531001) Top Cover | |||
| 1 | Gehäuse Satz (541170101) | |||
| 1 |  | Magnet (598460901) |

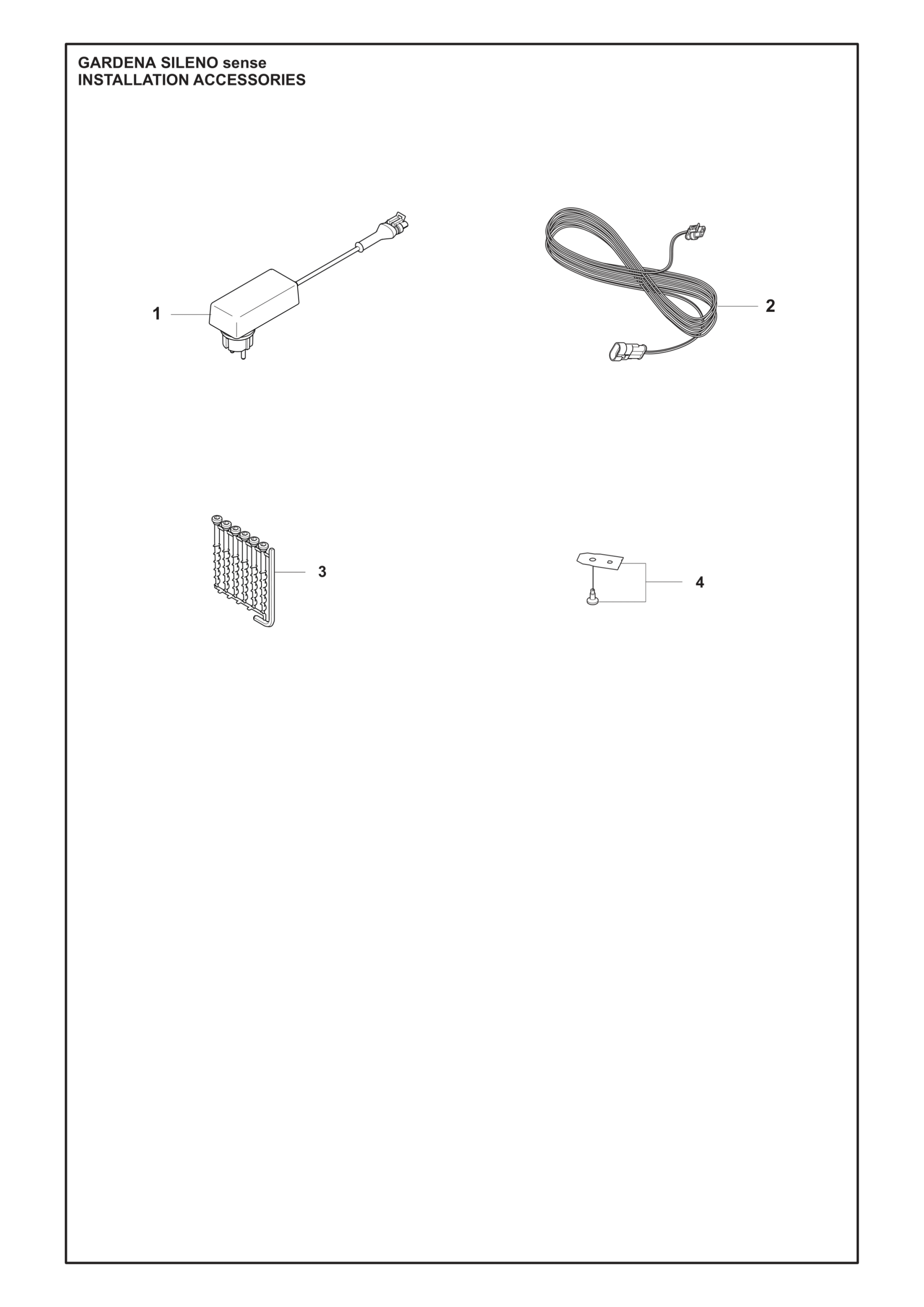

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|

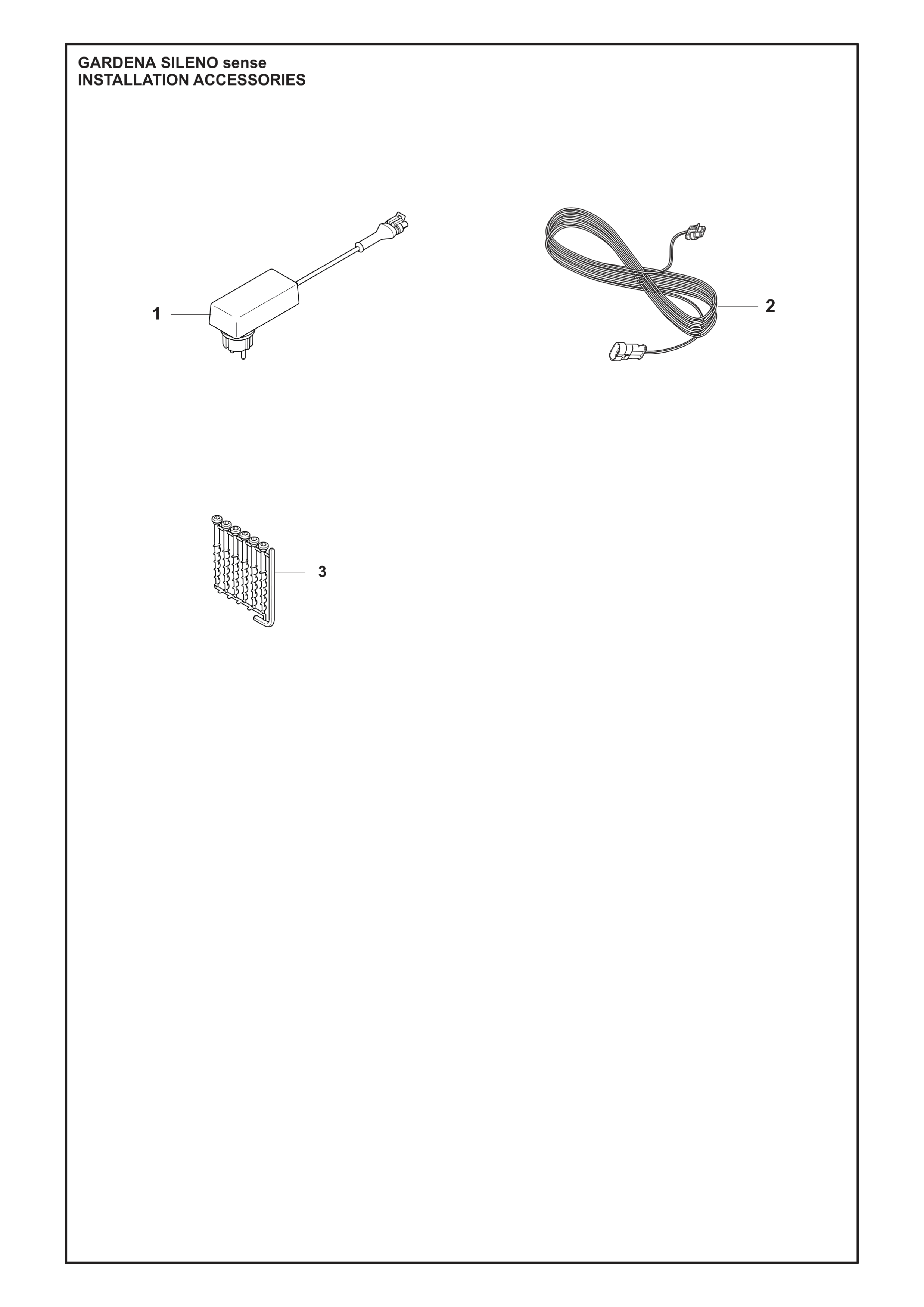

| 1 |  |
Antriebseinheit (599628501) EU | ||
| 1 | ANTRIEBSEINHEIT (599628502) UK/IE | |||
| 1 |  |
Antriebseinheit (599662503) CH | ||
| 1 |  |
Kabel Kpl. (579825104) 3m | ||
| 1 |  |
Kabel Kpl. (579825101) 20m | ||
| 1 |  |
Schraube (597435801) Anchor screws, 6 pcs | ||
| 1 | KLINGE (580489101) 4087-00.701.00, Blade 9 pcs |

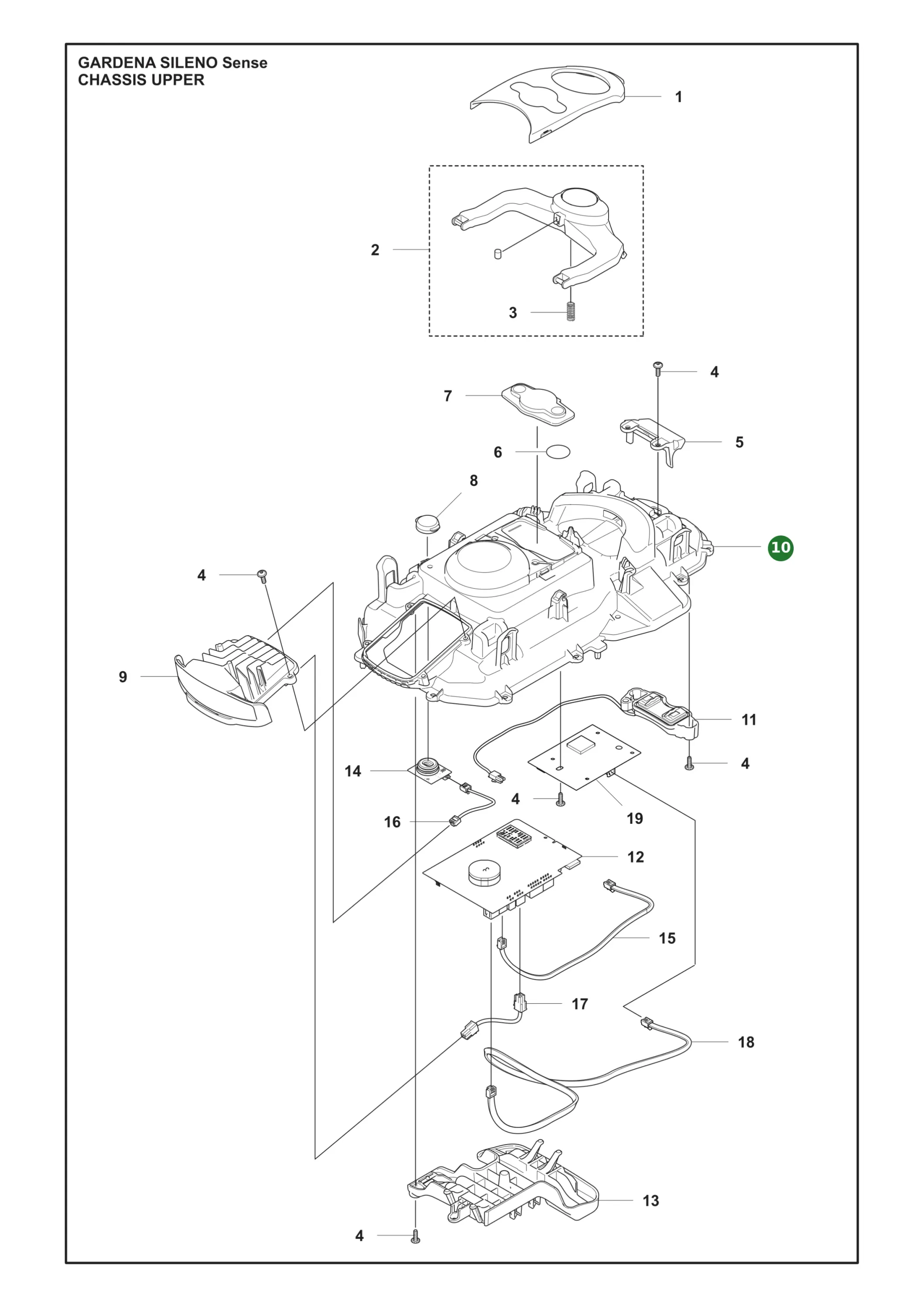

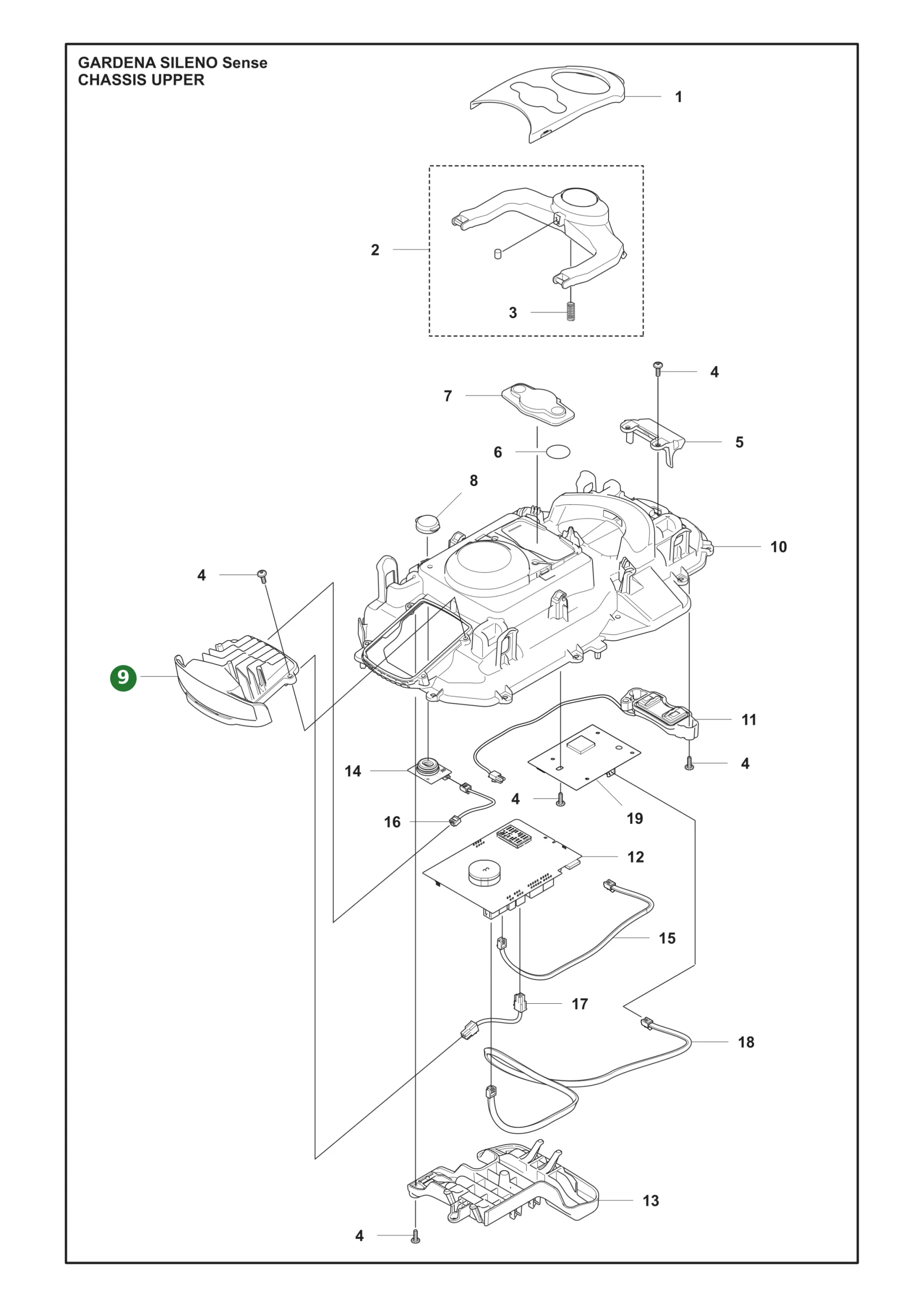

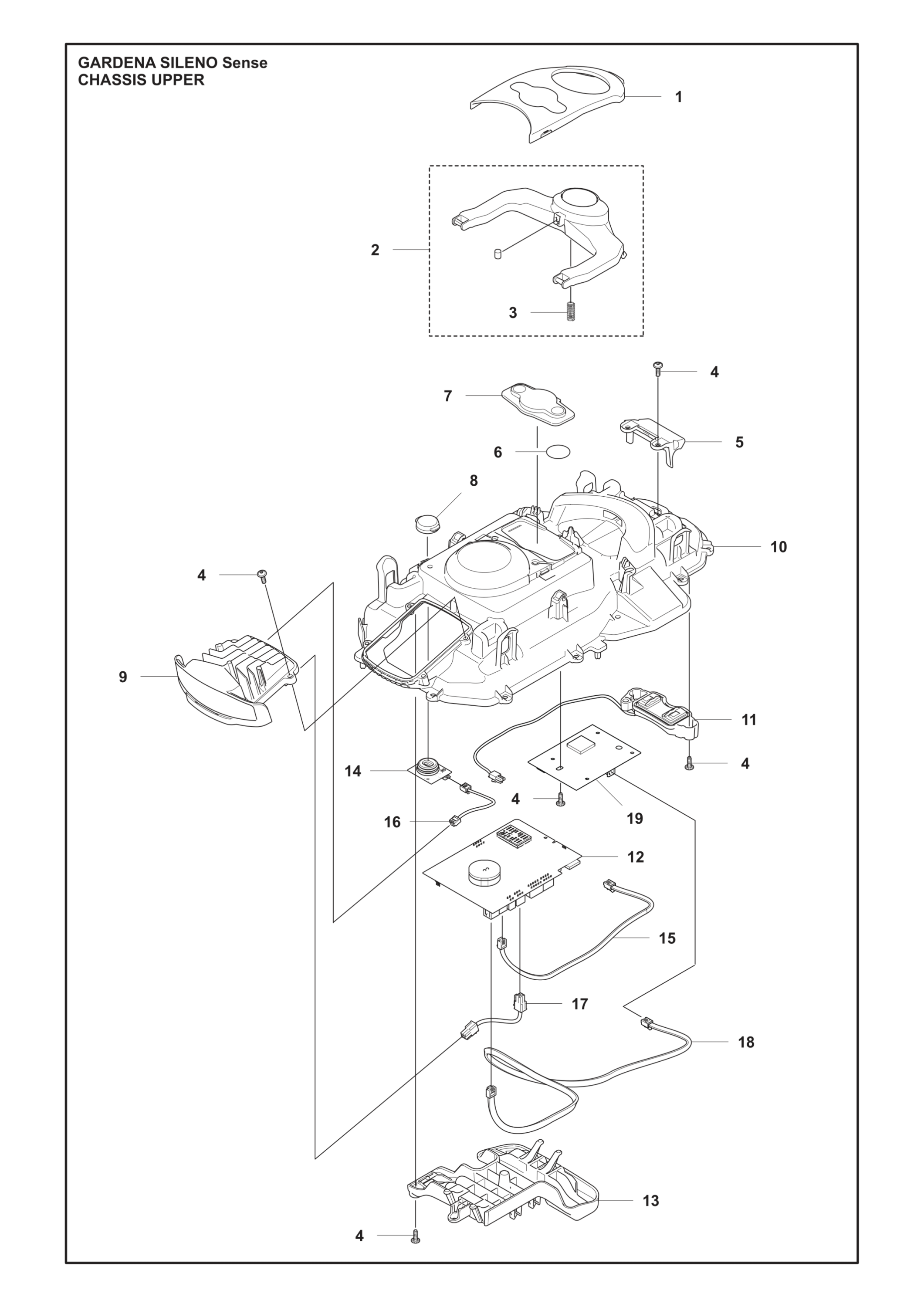

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Abdeckung (548677001) HMI Cover | |||
| 1 |
Knopf Kit (541164401) Stop | |||
| 1 |  |
Feder (535130101) Charging interface | ||
| 24 |  | Schraube Itxpant (574450101) | ||
| 1 |  | Halter (536864601) | ||
| 1 |  | Luftfilter (577753702) | ||
| 1 | Tastatur (548665901) | |||
| 1 |  |
Deckel (546282401) Accessory connection | ||
| 1 | Vision Module (548798501) | |||
| 1 |
Rahmen (548677101) Upper | |||
| 1 |  |
Verkabelung Kpl. (536979201) Chargingplate cable | ||
| 1 |
Platine Kpl. (548412201) Main Board | |||
| 1 | Halter (548886001) | |||
| 1 |
Platine Kpl. (540608601) Coupling board | |||
| 1 | Verkabelung Kpl. (536253905) Modular jack 480 mm | |||
| 1 |
Verkabelung Kpl. (548933101) USB interface cable | |||
| 1 |
Verkabelung Kpl. (591203110) HMI cable | |||
| 1 |  |
Verkabelung Kpl. (536253909) Modular jack 8p 370 mm | ||
| 1 |  |
Platine Kpl. (536462903) Com Board |

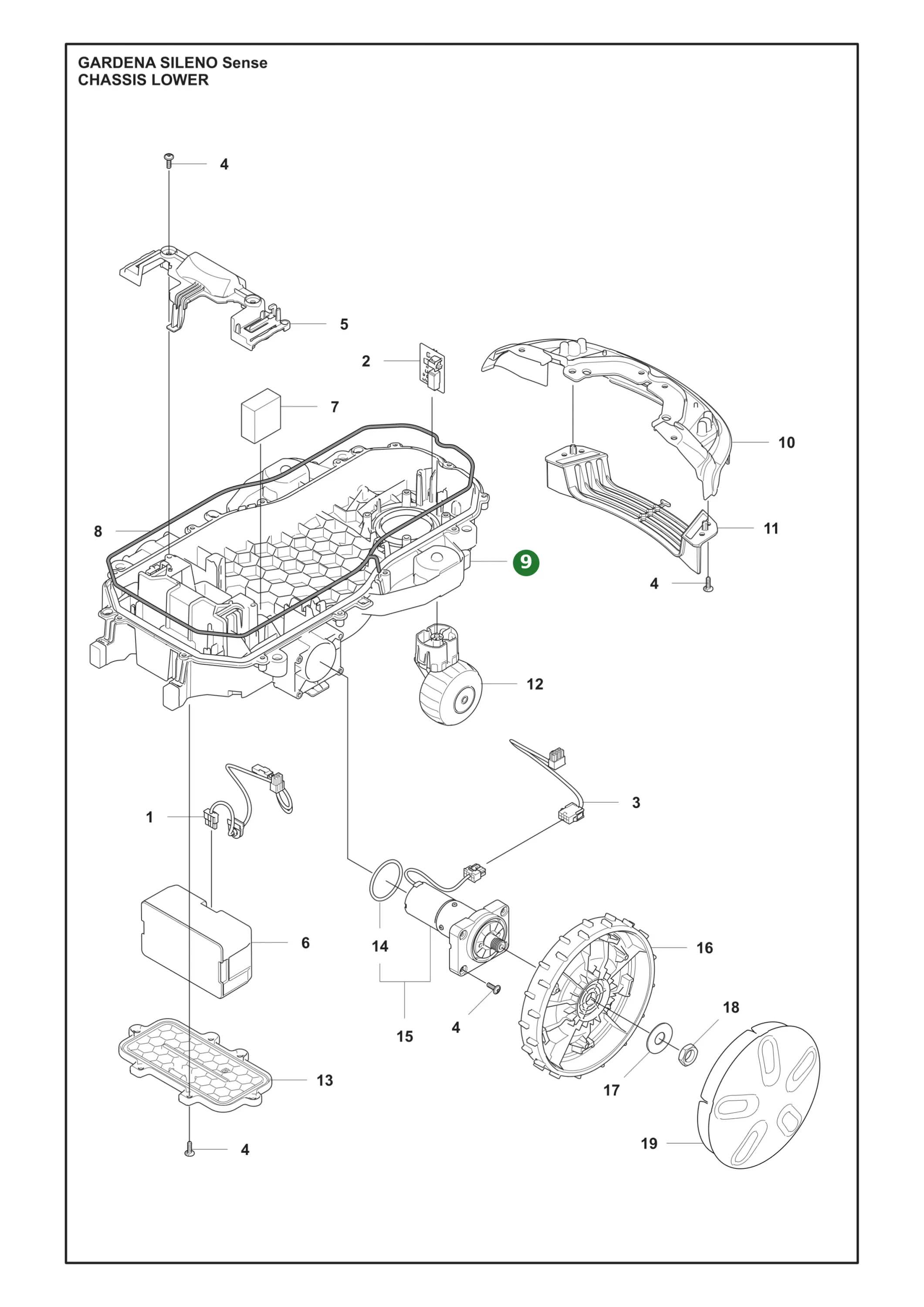

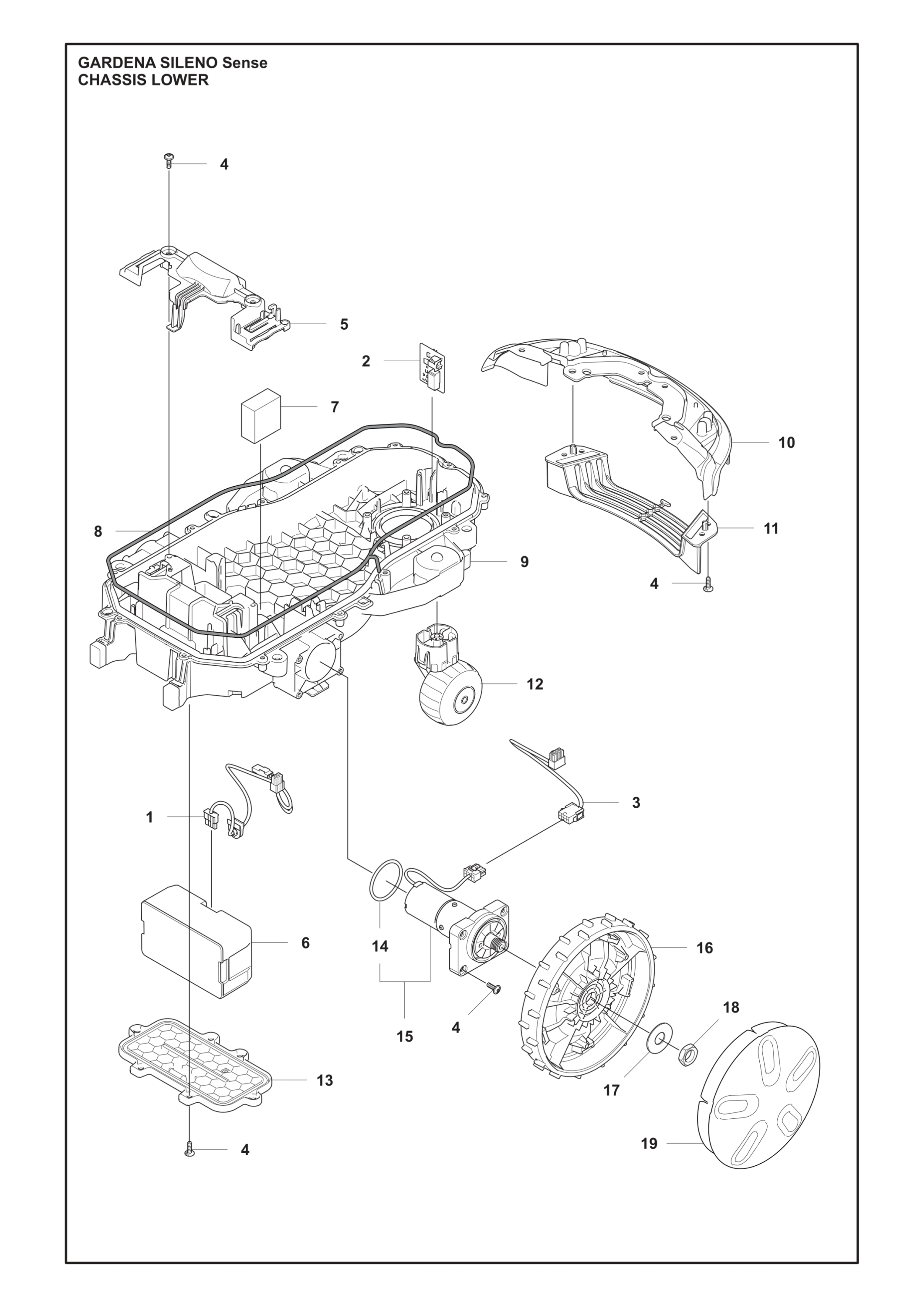

| Nr. | Menge | Artikel | ||
|---|---|---|---|---|
| 1 |
Verkabelung Kpl. (548933001) Charging link | |||
| 1 |
Platine Kpl. (548876501) Loop sensor board | |||
| 2 |
Verkabelung Kpl. (547097502) Extension cable 210 mm | |||
| 26 | | Schraube Itxpant (574450101) | ||
| 1 |  | Griff (547817601) | ||
| 1 |  | Battery (593247301) | ||
| 2 |  | Gewicht (547805701) | ||
| 1 |  | Dichtungsstreifen (574874709) | ||
| 1 |
Rahmen (536796503) Lower | |||
| 1 |  | Schutz (536805102) | ||
| 1 | Deckel (548216301) | |||
| 2 |  |
Rad Kpl. (589300801) Support wheel | ||
| 1 |  | Luke (546113401) | ||
| 2 |  | O-ring (580443902) | ||
| 2 |  | Motor Kit (598587301) | ||
| 2 |  | Laufrad (536801701) | ||
| 2 |  | Scheibe (586210601) | ||
| 2 |  | Sechskant-flachmutter (731432401) | ||
| 2 |  | Radkappe (536801901) |
