| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 |  |
Messermotor (584989302) Cutting Motor | ||
| 1 |  |
Schraube 10mm grau (575543310) From 2017 Models, Screw, Grey (10 mm) | ||
| 1 |  |
Schraube 14mm grau (575543314) Screw, Grey (14 mm) | ||
| 1 |  |
Höhenanzeige (574503501) Schnitthöhe | ||
| 1 |  |
Motorgehäuse Messermotor (581020301) Motor Housing | ||
| 3 |  |
Scheibe Nabe Messereinheit (510019501) For 2015 models | ||
| 3 |  |
Schraube M4x12 (576213801) SCREW | ||
| 1 |  |
Nabe Messermotor (574373501) Hub, Cutting Motor | ||
| 1 |  |
Sicherungsschraube Nabe Messereinheit (576213501) Stop Screw | ||
| 1 |  |
Schutz Messereinheit (579758301) Guard, Cutting Disc | ||
| 3 | |
Schraube 14mm grau (575543314) Screw, Grey (14 mm) | ||
| 1 |  |
Messerscheibe (574487101) Cutting Disc | ||
| 3 |  |
Befestigungsscheibe (577093201) WASHER | ||
| 3 | |
Schraube M4x12 (576213801) SCREW |

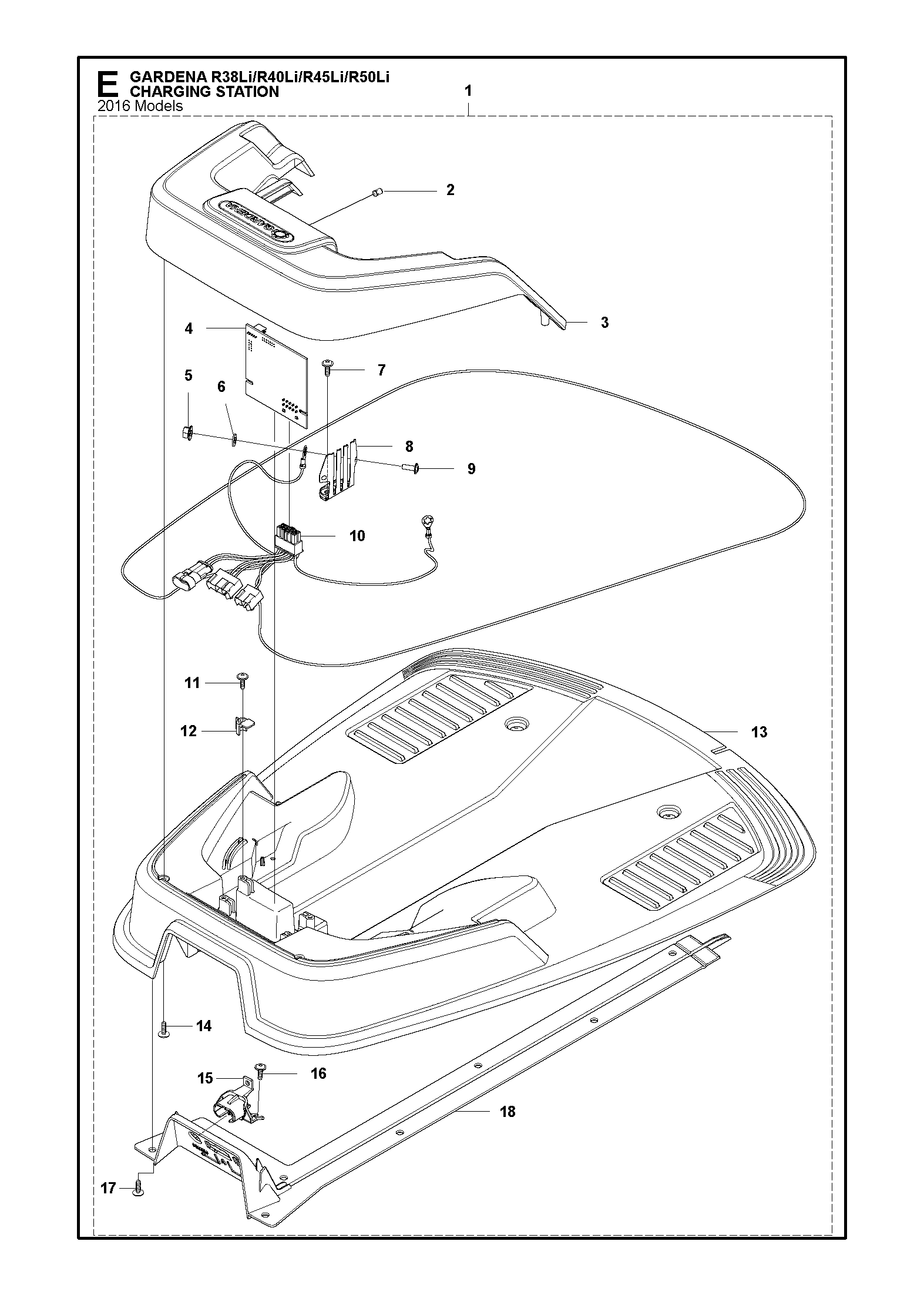

| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 |  |
Ladestation 28V (577972315) Charging Station, Gardena | ||
| 1 |  |
Diodenlinse LED-Anzeige (590217201) Diode Lens | ||
| 1 |  |
Abdeckung Ladestation oben grau (584618302) Charging Station Cover, Gardena | ||
| 1 |  |
Steuerungsplatine Ladestation (592909401) Circuit Board, Charging Station | ||
| 2 |  |
Sechskantmutterflansch (588222101) Nut Flange | ||
| 2 |  |
Zahnscheibe Ladekontakt (535087401) Washer | ||
| 2 | |
Schraube 14mm grau (575543314) Screw, Grey (14 mm) | ||
| 2 |  |
Ladekontakt Ladestation (587125101) Contacts, Charging Station | ||
| 2 |  |
Schraube M4 (588222201) Screw | ||
| 1 |  |
Kabelsatz Ladestation (582381001) Ladestation | ||
| 2 | |
Schraube 14mm grau (575543314) Screw, Grey (14 mm) | ||
| 2 |  |
Halter (535127901) Bracket | ||
| 1 |  |
Bodenplatte Ladestation (581551903) Charging Station Base Plate | ||
| 4 | |
Schraube 14mm grau (575543314) Screw, Grey (14 mm) | ||
| 4 | |
Schraube 14mm grau (575543314) Screw, Grey (14 mm) | ||
| 1 |  |
Führungspanel Ladestation (582356401) Guide Cover, Charging Station |

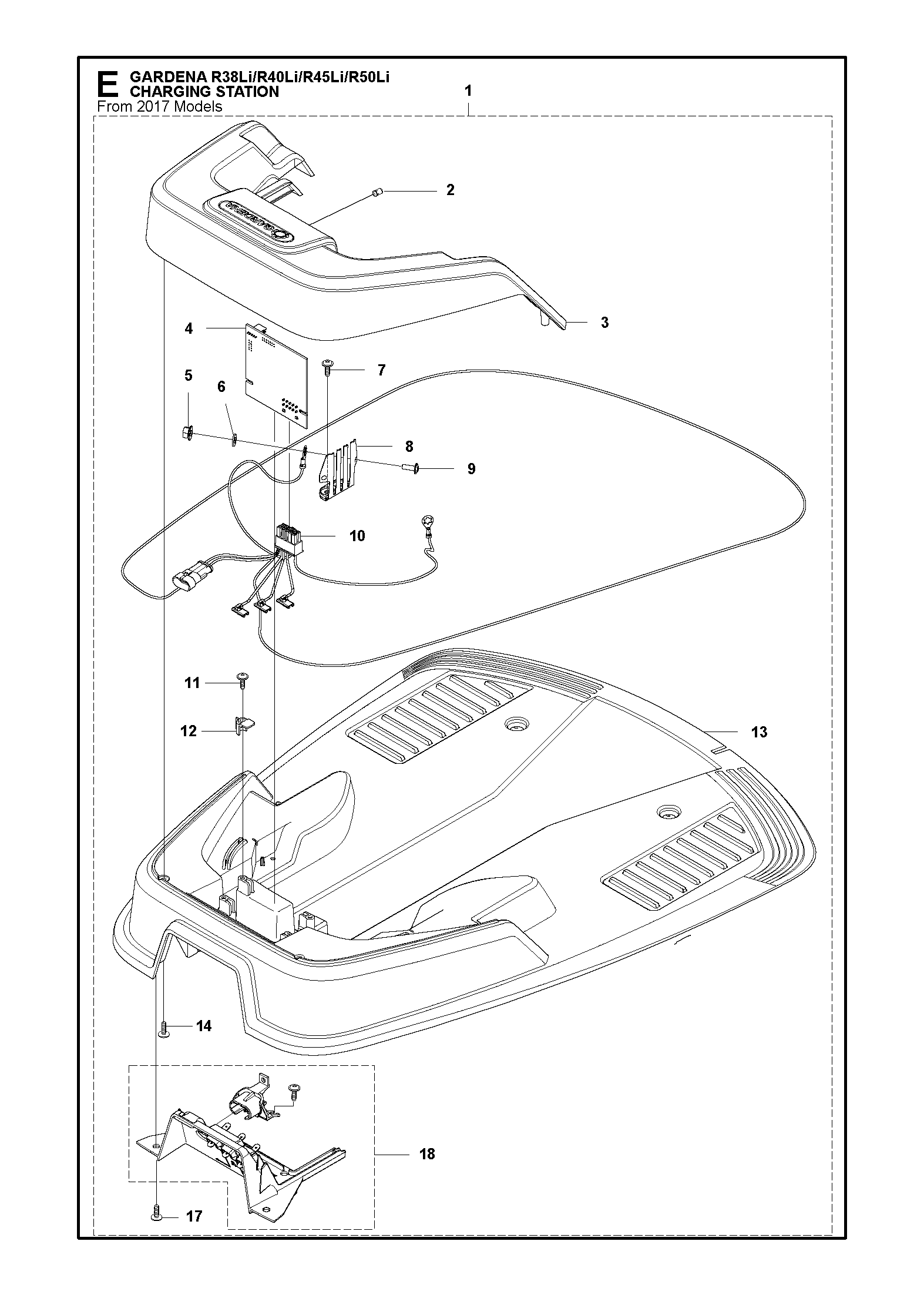

| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 | | Ladestation 28V (577972315) | ||
| 1 | | Diodenlinse LED-Anzeige (590217201) | ||
| 1 |  |
Abdeckung Ladeturm oben (584618301) Charging Station | ||
| 1 | | Steuerungsplatine Ladestation (592909401) | ||
| 2 | | Sechskantmutterflansch (588222101) | ||
| 2 | | Zahnscheibe Ladekontakt (535087401) | ||
| 2 | |
Schraube 14mm grau (575543314) Grey (14 mm) | ||
| 2 | |
Ladekontakt Ladestation (587125101) Charging Station | ||
| 2 | | Schraube M4 (588222201) | ||
| 1 | |
Kabelsatz Ladestation (582381001) Ladestation | ||
| 2 | |
Schraube 14mm grau (575543314) Grey (14 mm) | ||
| 2 | | Halter (535127901) | ||
| 4 | |
Schraube 14mm grau (575543314) Grey (14 mm) | ||
| 1 |  | Halter Ladestation vorn (587878501) | ||
| 2 | |
Schraube 14mm grau (575543314) Grey (14 mm) | ||
| 4 | |
Schraube 14mm grau (575543314) Grey (14 mm) | ||
| 1 |  |
Kabelführung Ladestation lang (587878401) Charging Station |

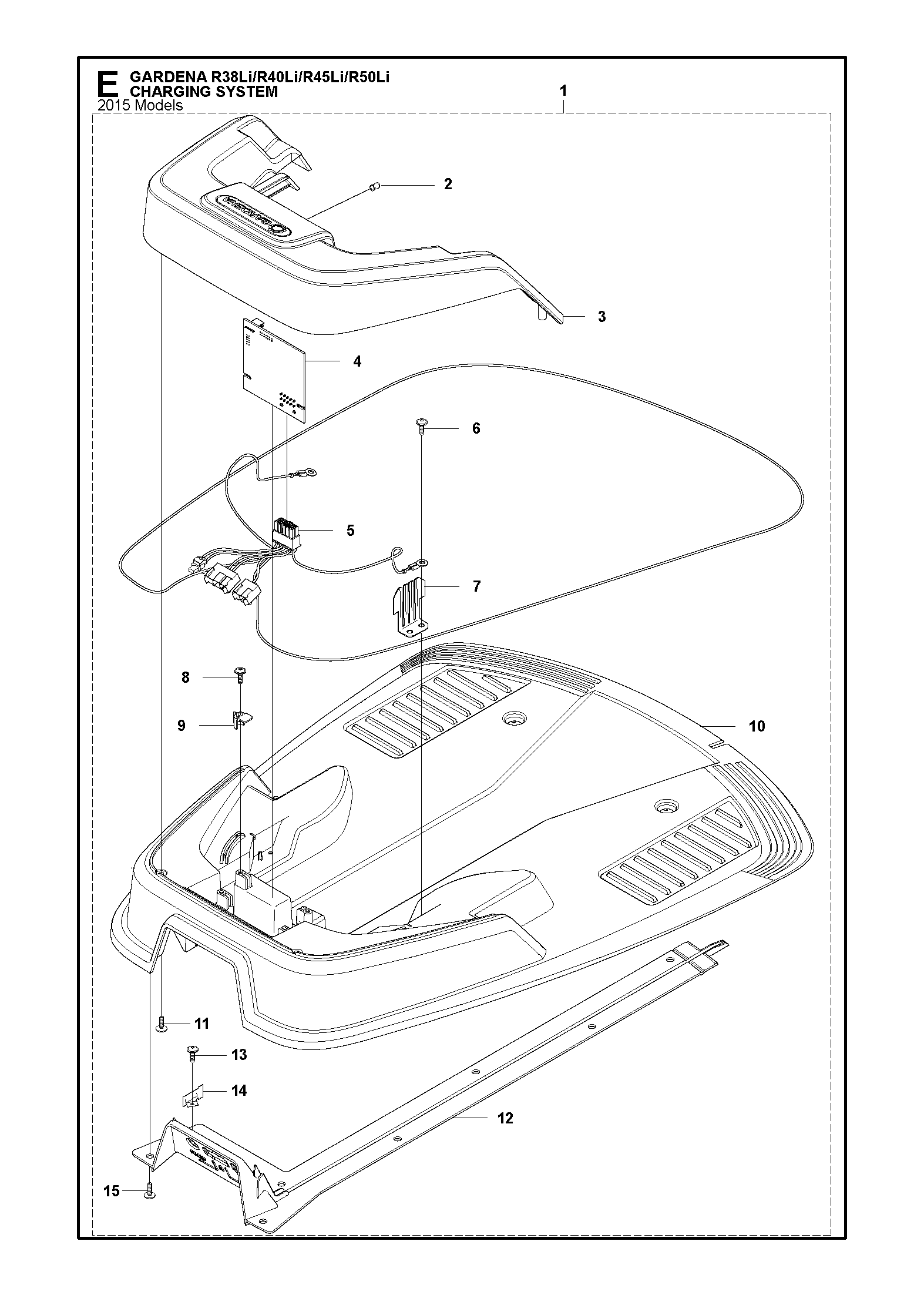

| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 |  | Ladestation mit Adapterkabel (587797106) | ||
| 1 | | Diodenlinse LED-Anzeige (590217201) | ||
| 1 | | Abdeckung Ladeturm oben (584618301) | ||
| 1 | | Steuerungsplatine Ladestation (592909401) | ||
| 1 |  |
Kabelsatz Ladestation (574476502) For 2013 models | ||
| 1 |  |
Kabelsatz Ladestation (581225903) For 2014 and 2015 Models | ||
| 2 | |
Schraube 14mm grau (575543314) grey, 14mm | ||
| 2 | | Ladekontakt Ladestation (587125101) | ||
| 2 | |
Schraube 14mm grau (575543314) grey, 14mm | ||
| 2 | | Halter (535127901) | ||
| 4 | |
Schraube 14mm grau (575543314) grey, 14mm | ||
| 1 |  | Kabelführung Ladestation lang (581011701) | ||
| 1 | |
Schraube 14mm grau (575543314) grey, 14mm | ||
| 1 |  | Halteklammer Kabelführung Ladestation (581011601) | ||
| 4 | |
Schraube 14mm grau (575543314) grey, 14mm |

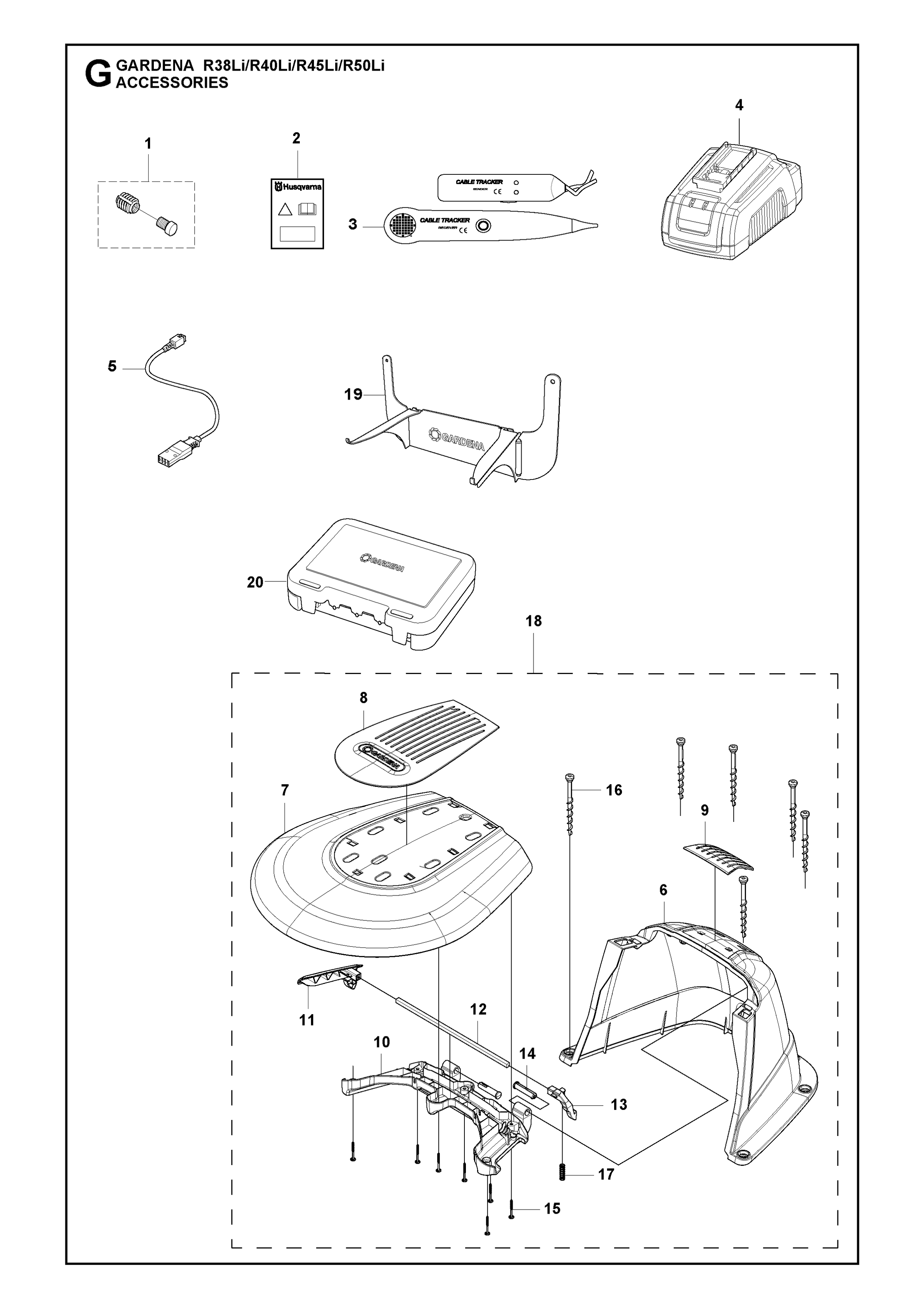

| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 |  |
Netzteil 28V 1.3A EU (599677301) From 2016 Models, Power Supply Unit, EU | ||
| 1 |  |
Netzteil AU/NZ (578906905) For 2015 Models, AU-NZ | ||
| 1 |  |
Netzteil 21.6V EU (584408801) For 2015 Models, EU | ||
| 1 | Netzteil 28V 1.3A (529532604) From 2016 Models, Power Supply Unit, CA, AU-NZ | |||
| 1 |  |
Netzteil 28V 1.3A UK/IE (529532602) From 2016 Models, Power Supply Unit, UK | ||
| 1 |  |
Netzteil 28V 1.3A CH (529532603) From 2016 Models, Power Supply Unit, CH | ||
| 1 |  |
Netzteil 21.6V CH (581291203) For 2015 Models, CH | ||
| 1 |  |

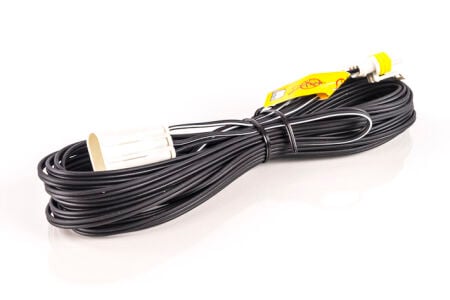

Anschlussleitung Ladestation 3m (579825103) From 2016 Models, Low Voltage Cable (3 m) | ||
| 1 |  |
Anschlussleitung Ladestation 20m (579825101) From 2016 Models, Low Voltage Cable (20 m) | ||
| 1 |  |
Anschlussleitung Ladestation 21.6V 10m (581166605) For 2015 Models, 10m | ||
| 1 |  |
Anschlussleitung Ladestation 10m (579825102) From 2016 Models, Low Voltage Cable (10 m) | ||
| 1 |  |
Anschlussleitung Ladestation 21.6V 20m (581166606) For 2015 Models, 20m | ||
| 1 | HAKEN (580489401) 4090-00.701.00, Staples (100 pcs.) | |||
| 1 |  |
Ankerschrauben Ladestation und Garage (597435801) Anchor Screw (6 pcs) | ||
| 1 | DRAHT (580489201) 4088-00.701.00, Loop Wire 150 m | |||
| 1 | DRAHT (590071901) 4058-00.701.00, Loop Wire 50 m | |||
| 1 | KLINGE (580489101) 4087-00.701.00, Blade 9 pcs. | |||
| 1 | KONTAKTSTÜCK (580489301) 4089-00.701.00, 6 Couplers + 3 Connectors | |||
| 1 |  |
Aufkleber Kabelmarker 10 Stk. (586277902) Sticker, Cable Markers (10 pcs) | ||
| 1 |  |
Diebstahlschutz-Aufkleber mit PIN-Code-Feld (502405301) From 2016 Models, Label, Anti-Theft | ||
| 1 |  |
Diebstahlschutz-Aufkleber mit PIN-Code-Feld (578910601) For 2015 models | ||
| 1 |  | USB-Servicekabel (577518102) | ||
| 1 |  |
Adapter-Set Netzteil Ladestation (586189001) For 2015 models | ||
| 1 | REPARATURSATZ (590072001) 4059-00.701.00, Boundary Wire Repair Kit | |||
| 1 | KARTON (595963401) | |||
| 1 |  |
Gewindeeinsatz-Reparatursatz 4 Stk. (581165701) Reparatursatz, 4 Stk., Metall |
| Nr. | Anzahl im Gerät | Artikel | ||
|---|---|---|---|---|
| 1 | |
Gewindeeinsatz-Reparatursatz 4 Stk. (581165701) Reparatursatz, 4 Stk., Metall | ||
| 1 |  |
Grundkörper Mähroboter-Garage unten (587916301) Cover KIT Base | ||
| 1 |  |
Deckel Mähroboter-Garage (587916401) Cover KIT Lid | ||
| 1 | Abdeckung Garagendeckel vorn (586694401) vorne, Einsatz | |||
| 1 |  |
Blende Garagendach hinten (586694601) hinten, Einsatz | ||
| 1 |  |
Gelenkträger Garagenmechanik (586694201) Beam Hinge | ||
| 1 |  |
Riegel links Garagenmechanik (586694701) Handle Left | ||
| 1 |  |
Verbindungsstange Garagenmechanik (585324102) Steel Rod | ||
| 1 |  |
Sperrhaken rechts Garagenmechanik (586694801) Latch Right | ||
| 2 |  |
Scharnierstift Garagenmechanik (585341501) Hinge Pin | ||
| 8 | |
Schraube 14mm grau (575543314) Screw | ||
| 1 | |
Ankerschrauben Ladestation und Garage (597435801) Anchor screw kit (6 pieces) | ||
| 1 |  |
Feder Deckel- und Garagenentriegelung (580511401) Spring Cap | ||
| 1 | AUFKLEBER KIT (531243501) 04071-00.900.01, Decal Kit Ladybug, not shown in image | |||
| 1 | AUFKLEBER KIT (531243601) 04071-00.900.02, Decal Kit Rainbowfish, not shown in image | |||
| 1 | AUFKLEBER KIT (531243701) 04071-00.900.03, Decal Kit Hawaii, not shown in image | |||
| 1 | AUFKLEBER KIT (531243801) 04071-00.900.04, Decal Kit Zebra, not shown in image | |||
| 1 | AUFKLEBER KIT (531243901) 04071-00.900.05, Decal Kit Plant, not shown in image |
